Furuno 1824, 1834 NavNet Special Features
- 640 x 480 VGA resolution 10.4 ″ displays for the clearest picture possible.
- Full Network System - Sonar, Radar, GPS and Displays can be integrated together.
- Accepts C-Map NT Max Cartography - PLEASE CALL us for details at 1-800-576-7735.
- Both 1824CNT and 1834CNT Systems include a remote control.
Furuno 1824, 1834 Specifications
| # Of Waypoints | # Of Routes | Track log | Receiver Type | Display Size | Plotter Type |
| 999 with name | 200 Rev. | 8,000 points | BBWGPS Optional GPS |
Color 10.4 ″ | Chartplotter |
| Supports Lat/Lon, or Loran TD's | |||||
C-Map NT Max,Expandable Network System!

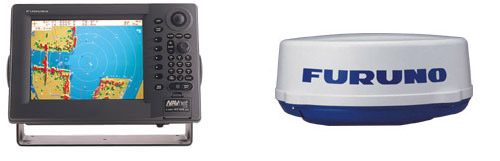

The Furuno NavNet vx2 1800 series is the perfect network system for mid-sized to large boats. The heart of the Furuno NavNet vx2 1800 series is the 10.4” Color TFT LCD, display with a 640 x 480 resolution. The Furuno NavNet vx2 will accept C-Map Max charts for exceptional marine detail. The 1800 series is very easy to use, with the rotary knob for faster selection and number entry, and every NavNet comes with a remote control. The Furuno NavNet vx2 1800 series systems are all full featured marine radar with radome antennas, and then you can add other options or more displays to expand your NavNet vx2 Network System.
Furuno 1824CNT- The Furuno 1824 CNT comes with a 2.2 kW(18"), 24-nautical mile radome, and also with a beautiful 10.4" color, sunlight viewable VGA display. The 2.2kW radome has 5.2 degree horizontal and a 25 degree vertical beamwidth, the lower the horizontal beamwidth the better your target separation. The 2.2kW radome has the ability to adjust the rotation speed based on the range in use, 30rpm in short range and 24rpm in mid to long ranges, which allows a faster refresh of the display when on a shorter range. The Furuno NavNet 1824 CNT also will allow you to set up target or echo trails with selectable time intervals and you can set Watchman Mode for security and safety. Watchman mode will allow you to set the radar to transmit for one minute; if the radar picks up a target within a guard zone it will sound an alarm. If no targets show up the unit will go into standby and start transmitting again after a period of time set by the user.
Furuno 1834CNT- The Furuno 1834 CNT comes with a 4 kW(24"), 36-nautical mile radome and also a beautiful 10.4" color, sunlight viewable VGA display. The 4kW radome has a 3.9 degree horizontal and a 20 degree vertical beamwidth, offering excellent target separation in a radome style antenna. The Furuno NavNet 1834CNT also allows you to set up target or echo trails with selectable time intervals and you can set Watchman Mode for security and safety. Watchman mode will allow you to set the radar to transmit for one minute; if the radar picks up a target within a guard zone it will sound an alarm. If no targets show up the unit will go into standby and start transmitting again after a period of time set by the user.
DFF1 NavNet Sounder Option- The Furuno DFF1 , optional Digital black box echosounder and a transducer, will add a Fishfinder to your NavNet system. The Furuno DFF1 sounder option is capable of 600 or 1,000 Watts rms and you will need to add a dual frequency 200/50kHz transducer. The DFF1 Sounder will include such features as bottom-lock, bottom zoom, A-scope and marker zoom.
BBWGPS NavNet GPS Sensor- The Furuno BBWGPS optional GPS/WAAS antenna can be added to any NavNet system for full chartplotter capabilities. When the BBWGPS is added you will have ability to mark and save upto 1,000 waypoints, 2,000 routes with maximum 35 points each, and 8,000 track log points. The Furuno NavNet vx2 1800 Series will also allow you to navigate with north up, course up, or auto course up. The NavNet vx2 1800 will have dedicated navigation screens such as; Nav data, course plot, steering and highway display. You can also overlay the radar data on the chartplotter ( PG500R Heading Sensor and BBWGPS required)..
Additional cables and a Network Hub may be required for systems with multiple displays and options.
Unit Dimensions 9.3"h x 14.2"w x 7.1"d(without bracket). Warranty: 2 years parts and labor.
