Includes: 10.4" Color Display(C-Map Max), 4kw 3.5' open array(48 Mile), mounting bracket, face cover, and manuals.
Includes: 10.4" Color Display(C-Map Max), 6kw 4' open array(64 Mile), mounting bracket, face cover, and manuals.
|
Furuno 1934, 1944 NavNet Special Features
- 640 x 480 VGA resolution 10.4 ″ displays for the clearest picture possible.
- Full Network System - Sonar, Radar, GPS and Displays can be integrated together.
- Accepts C-Map NT Max Cartography - PLEASE CALL us for details at 1-800-576-7735.
- Both 1934CNT and 1944CNT Systems include a remote control.
- 1934CNT includes 3.5ft. 4KW, 1944CNT includes 4ft. 6KW, both Open Array Radar Antennas
Furuno 1934, 1944 Specifications
| # Of Waypoints |
# Of Routes |
Track log |
Receiver Type |
Display Size |
Plotter Type |
| 999 with name |
200 Rev. |
8,000 points |
BBWGPS
Optional GPS |
Color 10.4 ″ |
Chartplotter |
| Supports Lat/Lon, or Loran TD's |

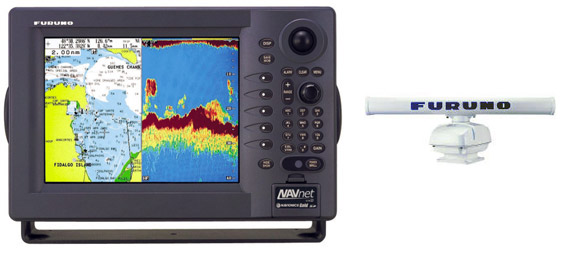

Furuno NavNet vx2, Open Array Radar!

The Furuno NavNet vx2 1934C NT and 1944C NT are the perfect network systems for mid-sized to large boats. The heart of the Furuno NavNet vx2 1934CNT and 1944CNT is a 10.4” Color TFT LCD, display with a 640 x 480 resolution. The Furuno NavNet vx2 will accept C-Map Max charts for exceptional marine detail. The 1934CNT and 1944CNT, vx2 systems are very easy to use, with the rotary knob for faster selection and number entry, and every NavNet comes with a remote control. The Furuno NavNet vx2 1934 and 1944 are all full featured marine radar with open array antennas, and then you can add other options or more displays to expand your NavNet vx2 Network System.
The Furuno 1934CNT comes with a 3.5’ 4kW, 48 nautical mile open array radar antenna, with a 2.2-degree horizontal and a 22-degree vertical beamwidth. The 1944CNT comes with a 4’ 6KW, 64 nautical mile open array radar antenna, with a 1.9-degree horizontal and 22-degree vertical beamwidth. Both the 3.5’ 4KW and the 4’ 6KW will have rotation speed of 24RPM. The Furuno NavNet 1934CNT and 1944CNT vx2 will also allow you to set up target or echo trails with selectable time intervals and you can set Watchman Mode for security and safety. Watchman mode will allow you to set the radar to transmit for one minute; if the radar picks up a target within a guard zone it will sound an alarm. If no targets show up the unit will go into standby and start transmitting again after a period of time set by the user.
DFF1 NavNet Sounder Option- The Furuno DFF1 , optional Digital black box echosounder and a transducer, will add a Fishfinder to your NavNet system. The Furuno DFF1 sounder option is capable of 600 or 1,000 Watts rms and you will need to add a dual frequency 200/50kHz transducer. The DFF1 Sounder will include such features as bottom-lock, bottom zoom, A-scope and marker zoom.
BBWGPS NavNet GPS Sensor- The Furuno BBWGPS optional GPS/WAAS antenna can be added to any NavNet system for full chartplotter capabilities. When the BBWGPS is added you will have ability to mark and save up to 1,000 waypoints, 2,000 routes with maximum 35 points each, and 8,000 track log points. The Furuno NavNet vx2 1900 Series will also allow you to navigate with north up, course up, or auto course up. The NavNet vx2 1934CNT and 1944CNT will have dedicated navigation screens such as; Nav data, course plot, steering and highway display. You can also overlay the radar data on the chartplotter ( PG500R Heading Sensor and BBWGPS required)..
Additional cables and a Network Hub may be required for systems with multiple displays and options.
Unit Dimensions 9.3"h x 14.2"w x 7.1"d(without bracket). Warranty: 2 years parts and labor.
|
| |
| |
|
| |
| |
FUBBWX1
|
Furuno BBWX1 NavNet Sirius Weather Receiver
The Furuno BBWX1 Sirius Weather Receiver provides weather info in real time and displays it on your NavNet VX2 or NavNet 3D.
Order now through March 31st and get a $50 mail in rebate from Furuno.
|
$749.95
|
|
| |
FUDFF1
|
Furuno DFF1 Digital Fishfinder Box
Furuno DFF1 Digital 600W/1kW Black Box Sounder Module for your Furuno Navnet VX2 or Navnet 3D Network Systems.(Transducer Sold Separately)
Order now through March 31st and get a $50 mail in rebate from Furuno.
|
$679.95
|
|
| |
|
| |
| |
|
| |
| |
|
| |
| |
|
| |
| |
|
| |
| |
|
| |
| |
|
| |
| |
|
| |
| |
|
| |
| |
|
| | | |
|
