Garmin GPSMAP 5215 Special Features

Garmin GPSMAP 5215 GPS Specifications

Garmin BlueChart G2 Vison Charts on SD

For more information on the plug and play Garmin BlueChart G2 Vision chart cards click here for a full list of the available regions.

The Garmin GPSMAP 4200 and 5200 series units are now shipping with the brand new software Version 5.0 installed! To view the new features in Version 5.0 Click Here.

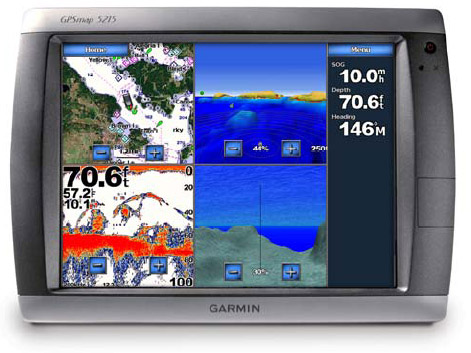

15" Color Touch Screen with Pre-loaded Bluecharts.

The Garmin GPSMAP 5215 uses Garmin’s largest screen to date. The 15” color touch screen display will show you all of the detail you have come to expect from Garmin Bluechart technology. Add the G2 vision card and see even more detail in 3D. The 5215 has no buttons and operates entirely though a touch screen. The new sunlight viewable touch screen display makes operation much easier and still keeps its commercial quality. The 5215 will give you full command of the complete network from single or multiple displays.

The GPS 5215 chartplotter is part of the Garmin Marine Network, you can customize your system to fit your needs. The 5215 is compatible with additional displays, radar, fishfinder, and satellite weather.

GSD-22 Sounder Option- The GSD-22 is Garmin’s digital fishfinder black box. Adjustable between 500, 1000, and 2000 watts the GSD 22 Digital sounder is a great add-on for both the casual or commercial fisherman.

Satellite Weather Service-The GDL 30A will allow you to get real time satellite weather(requires the purchase of monthly service)with information including Current conditions, City forecasts, NEXRAD radar with precipitation type(animated, high resolution), Surface air pressure, Surface analysis (Highs, Lows and fronts), Lightning, Storm cell size, speed and direction, Hurricane track, Visibility forecast, Wind speed, Sea surface temperature, Wind direction, Wave period, Wave direction, Wave height, Buoy data and XM Radio capabilities.

Garmin Dome or Open Array Marine Radar--
The Garmin Marine Network also has the ability to add a Marine Radar. Garmin has several different high quality radars ranging from 18" closed Dome all the way up to a 6' Open Array. please see accesory list below for options.

Pre-Loaded to every 5215 is the detailed Garmin BlueChart G2 marine cartography for the entire United States as well as the Bahamas with worldwide satellite imagery. The Garmin BlueChart G2 information includes navaids, port plans, detailed coastlines, shaded depth contours, wrecks, tide and current information, and restricted areas. This detail can also be enhanced with the purchase of the Garmin G2 vision chart. Garmin G2 Vision will give you the following:

• High-resolution satellite imagery when overlaid on the chart, will provide the mariner with unparalleled situational awareness
• Aerial reference photography provides “real world” photos of ports, harbors, marinas, waterways, navigation landmarks and other points of interest, offering the mariner another powerful tool for navigating unfamiliar waters
• Mariner’s Eye view – Provides the mariner with a 3-D perspective of chart information for a quick, reliable and easy position fix
• Fish Eye view – 3D perspective below the water line for displaying bottom contours based on bathymetric charting data
• Auto guidance technology will search the attributes of all relevant charts to suggest the best course for navigation
• Fishing charts, tides, currents, marine services, coastal roads and points of interest detail

Other features include 2 video inputs for onboard cameras, four NMEA outputs and two NMEA inputs, and three built-in network expansion ports.

Unit Dimensions- 11.7”h x 15.5”w x 5.7”d, 1-year warranty.

Garmin 5215 comes with GPS17X NMEA 2000 Antenna.

GAX10272 Garmin Transom Mt. transducer for GSD20, GSD21 and GSD22 with temp Transom Mount transducer for GSD20, GSD21 and GSD22 with built-in Temp sensor. $74.95		GAX10183 Garmin Bronze Thru-Hull tri-ducer GSD-20/21/22 w/ block The Garmin Bronze Thru-Hull triducer for GSD20, GSD21 and GSD22 with fairing block operates at 50/200KHZ and provides accurate Depth, Speed and Temperature readings. $249.95
GA00351 Garmin GMS 10 Network Port Expander Garmin GMS 10 Network Port Expander $249.95		GAX10192 Garmin Transom Mount Tri-ducer for GSD-20/21/22 Garmin Transom Mount Tri-ducer for GSD-20/21/22, includes speed, depth, and temp. $139.95
ED5M Edson Multidome 5 inch Tower Radar Mount Edson Multidome 5 inch Tower Radar Mount with a 4 degree down angle. $289.95		PMPT12 Pro Mount 12" Radar Pro-Tower II Pro-Mount Pro-Mount 12" Radar Mount. $199.95
SS4365 Shakespeare 4365 4" SS GPS antenna mt. Shakespeare 4365 4" SS GPS antenna mount $19.95		SS4722 Shakespeare 4722 Nylon Rail Mount 1 inch Shakespeare 4722 Nylon Rail Mount 1 inch $12.95
GA00484B Garmin GMR 404 Open Array Radar and Pedestal Garmin's GMR 404 4kw Open Array Radar boasts an impresive 72 Mile Range with a 1.8-degree Beamwidth which will give the user outstanding clarity and target definition. $3,299.00		GAX10878 Garmin RF Remote Control for GPSMAP 4000/5000 The Garmin RF Remote Control is a portable keyed remote which allows the user to wirelessly control their Garmin GPSMAP 4000 or 5000 series chartplotter display. $64.95
GA00397 Garmin GSD 22 500/1KW/2KW Digital Sounder option Includes: GSD 22, power cable (6ft), marine network cable (6ft),field installable network cable connector, cable grommet, CANet cable (40ft), CANet terminators, hardware and installation instructions. List: $499.95 $439.95		SS4710 Shakespeare 4710 SS GPS 1.5" GPS antenna mount Shakespeare 4710 SS GPS 1.5" antenna mount for GPS $14.95
GA00671 Garmin GFS10 Fuel Sensor The Garmin GFS 10 Fuel Sensor provides fuel flow and fuel level measurement data. You can view this information on your Garmin 400, 500, 4000, 5000 series chartplotter or GMI 10 display. List: $199.95 $179.95		GA00687 Garmin GMI10 Marine Instrument Display The Garmin GMI 10 Marine Instrument Display can display Depth, Water Speed, Water Temp, fuel flow and engine data. The GMI10 by Garmin. List: $499.95 $449.95
GAXB6020 Garmin B60-20 Flush Mount Thruhull Garmin B60-20 Bronze Flush Mount Thru-Hull Transducer with tilted element. Works on boats with deadrise between 16-24 degrees. Does not need Fairing Block $229.95		GAXB6012 Garmin B60-12 Flush Mount Thruhull Garmin B60-12 Bronze Flush Mount Thru-Hull Transducer with tilted element. Works on boats with deadrise between 8-16 degrees. Does not need Fairing Block $229.95
GA006941 Garmin GPS17X NMEA 2000 The Garmin GPS 17X NMEA 2000 Antenna offers high-sensitivity reception and pinpoint accuracy in the harshest marine environments. $229.95		GA005723 Garmin GMR 24HD, 4KW High Definition Digital Radar Garmin's GMR 24HD digital radar dome offers a whole new level of radar performance. Scan up to 48nm with this 24" dome. List: $1,999.00 $1,749.00
GA005722 Garmin GMR 18HD, 4KW High Definition Digital Radar The Garmin GMR 18HD provides up to 36nm of scanning range with 4kw of power in a small 18" dome. List: $1,199.00 $1,049.00		KV1000P KVH AutoComp 1000 Heading Sensor The KVH AutoComp 1000 Heading Sensor uses Fluxgate Compass technology to provide precision heading data to your network system. $369.95
GA00753 Garmin GXM 51 Weather and Audio XM Satellite Receiver The Garmin GXM 51 Weather and Audio XM Satellite Receiver is a perfect add on to your Garmin Network. Compatible with Garmin 4200 and 5200 Series plotters. List: $699.99 $599.95
