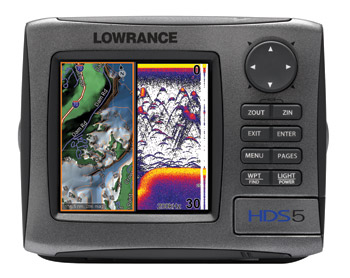

The Lowrance HDS 5 chartplotter fishfinder combo comes preloaded with highly detailed charts for the coast U.S. which makes it a top choice combo unit.
Lowrance HDS-5 Details
Each Lowrance HDS-5 comes with:Lowrance 5" LCD display, internal antenna, display cover, mounting bracket, flush mount kit, power cable, manuals, 50/200khz transom mount transducer and a Two-Year Warranty.
Unit Size: 5.7”H x 7.2”W x 3.5”D
Display Size: 5” Diag.
Weight: 3 lbs
Lowrance HDS-5 Special Features
- 5" Sunlight viewable color display.
- Built-in Digital Fishfinder for depths upto 5,000 feet.
- Exceptionally fast chart redraw and response time.
- Network Compatible for addition of Sirius Weather and Radar.
- Built-in Nautic Insight maps for Coastal Charting.
Lowrance HDS-5 Specifications
| # Of Waypoints |
# Of Routes |
Track log |
Receiver Type |
Display Size |
Plotter Type |
| 5000 |
200 |
12,000 |
16 Channel |
5" diagonal |
Chart- plotter |
| Supports Lat/Lon |
Fishfinding and Navigation have never been easier.
When Lowrance set out to create a new Chartplotter and Fishfinder combo, they started at the front and worked their way back making sure they improved every aspect over the older LCX series plotters. You will notice the vast improvements right away when you see the sunlight viewable, 480 x 480 5’ SOLORMAX PLUS DISPLAY. The brighter and clearer display offers a much wider viewing angle and Lowrance even backlit the keypad for nighttime use. The built-in digital fishfinder provides phenomenal separation of fish targets and bottom. Locating your position is also a cinch for HDS-5 with its super-sensitive 16-channel internal GPS antenna and if you need an external antenna you can always add the Lowrance LGC-4000 external GPS antenna.
Broadband Digital Fishfinder
The Lowrance HDS-5 High-Definition Digital Fishfinder uses broadband technology to provide the best picture of fish and bottom possible. The digital filters reduce false echos and help to distinguish fish from structure like rock piles, stumps beds, drop-offs and ledges. You will also see a large increase in performance of tracking bottom at higher speeds and in rougher sea conditions. The HDS 5 has an adjustable zoom scale of up to 8X and can operate up to a maximum of 5000’.
Pre-Loaded Mapping
The Lowrance HDS-5 comes pre-loaded an enhanced US base map which includes most inland lakes with shoreline detail and for the coastal boater, Lowrance included their exclusive Nautic Insight maps. The Nautic Insight mapping system includes contour shading for stunning perspectives of bottom structure and topography of coastal waters. Also built-in are offshore depth contours, spot sounding and navigational aids. If the Nautic Insight is not enough for you, the HDS5 will support Navionics Platinum, Platinum Plus and Platinum Hot Maps with TurboView.
Network Expandable
And if that was not enough, the HDS-5 is expandable and network ready. You can add and view Sirius Weather, Sirius Radio, Lowrance High-Definition Radar and NMEA 2000 compatible equipment like fuel sensors, temperature sensors and engine interface sensors. The Lowrance LWX-1 Sirius Weather Module can added to view a full suite of weather and sea conditions. Sirius radio is also available and includes 120 channels of digital quality broadcast. Lowrance also made this unit much easier to use than past models with an improved keyboard design, faster processors and a more intuitive menu.
LO2246
|
Lowrance LWX-1 Sirius Weather and Audio Module
The Lowrance LWX-1 Sirius Weather and Audio recever will allow you to view real-time weather on your Lowrance HDS and listen to Sirius Audio through your boats sound system.
|
$149.95
|
|
| |
LO13206
|
Lowrance LSS-1 StructureScan Sonar
The Lowrance StructureScan Imager provides views of structure, fish and bait like never before. Add the Lowrance Structure Scan to any HDS Combo unit and see picture-perfect views to the left, right and straight under your boat.
Expected mid March.
|
List: $599.95
$579.95
|
|
| |
|
| |
| |
|
| |
| |
|
| |
| |
|
| |
| |
|
| |
LOX12528
|
Lowrance LGC4000 GPS Receiver
If you are mounting a Lowrance HDS under a hard top or in a pilot house, the LGC4000 antenna will help you get a better signal.
|
$254.95
|
|
| |
|
| |
| |
|
| |
| |
|
| |
LOX10677
|
Lowrance Transom Mount Skimmer Transducer with Temp
The Lowrance Transom Mount Skimmer Transducer, HST-DFSBL has a sleek design for better water flow which leads to more accurate depth readings. 50/200khz Dual Frequency for Lowrance Blue Connector fishfinders.
(Depth/Temp)
|
$149.95
|
|
| |
|
