Lowrance 527C-DFi Special Features
- 5" Diagonal High resolution (480 x 480) backlit LCD display is sunlight readable.
- Waterproof unit with rubberized backlit keypad.
- Optional detailed mapping with the purchase of Map Create Accessory Pack 6.
- 500 watt sonar is capable of depth readings to 2000 ft.
- Also compatible with Navionics gold or Platinum charts on SD.
Lowrance 527C-DFi Specifications
| # Of Waypoints | # Of Routes | Track log | Receiver Type | Display Size | Plotter Type |
| 1000 with name and symbol | 100 Rev. | 10,000 points, 10 saved tracks | 12 Channel WAAS | 5" Diag. 480 x 480 pixels |
Chart Plotter |
| Supports Lat/Lon, UTM, Loran TD's, MGRS, British grid. | |||||

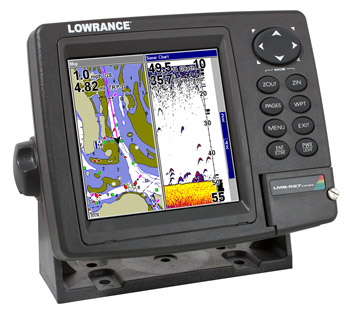

Color Combination Chartplotter Sounder with an Internal Antenna.
With it's 5" 480 x 480 diagonal high-resolution color display the Lowrance LMS-527C DF iGPS is a top choice for boaters looking to move up into a color mapping GPS/fishfinding sonar without spending a fortune. The newly expanded built-in basemap has general level coastal maps for the US (except Alaska) and includes over 60,000 critical nav-aids and 10,000 wrecks and obstructions for coastal and Great Lakes waters. The basemap also shows highways and interstates for inland navigation. The mapping can also be expanded to show highly detailed marine and inland maps with the purchase of the MapCreate Accessory pack-7 sold separately or pre-programmed Navionics Gold or Platinum Cartography Chart. The LMS 527C-DF iGPS internal 12 channel WAAS receiver provides accuracy up to 10 feet*, and the moving map display shows your vessel moving in real time, with important information such as speed, heading and more at your fingertips. 37 Map range scales are available from .05 to 4,000 miles, and the newly advanced adjustable white backlighting ensures screen visibility in any lighting condition.
The 527CDF onboard memory can store up to 1000 waypoints, 100 routes and 10 savable plot trails and the display can be customized to show charts, digital data or both.
Other features include Man Overboard mode, audible alarms, waypoint icons, sunrise/sunset calculator, timers and more. NMEA 0183 interface. 1 year warranty.
Sonar Features of the 527C DF iGPS
The Dual Frequency (50/200khz) sonar has 500 watts of RMS power and can display depth up to 2000 feet. The sonar screen utilizes the brilliant colors to help distinguish targets on the bottom and to show bait and structure. It also features Lowrance's exclusive ASP advanced signal processing to help eliminate false echos, and provide the best possible bottom tracking in all conditions. Other features include alarms for shallow and deep water, Flasher mode, high speed screen updates, and selectable display colors. The included high speed skimmer transducer has a built-in temp sensor and separate transom mounted speed sensor is also included in this package
