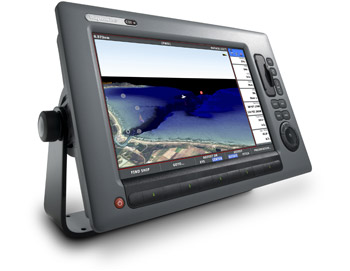

Raymarine C120W Widescreen Details
Unit Size: 10.1”H x 15.2”W x 4.4”D
Display Size: 12.1” Diag.
Raymarine C120W Special Features
- 1280 x 800 WXGA resolution 256 Color displays for the clearest picture possible.
- Built-In Internal GPS Sensor
- Multifunction Capable. Add Radar, fishfinder and more...
- Pre-loaded with Navionics Cartography and Navionics Platinum Compatible.
- Waterproof and Rugged design with straightforward operation.
Raymarine C120W Specifications
| # Of Waypoints | # Of Routes | Track log | Receiver Type | Display Size | Plotter Type |
| 3000 with name | 150 | 15 tracks 3000 points per track |
Included Internal | Color 12.1" | Chartplotter |
| Supports Lat/Lon | |||||
|
Looking for the same unit, with a larger display? Take a look at the Raymarine C140W. |
12.1" Theatre like widescreen display.
The Raymarine C120W Widescreen GPS Chartplotter brings ease-of-use to a single display or two-display station. You can network the C120W with one other C90W, C120W or C140W. This is great for side by side installation or a cockpit and tower designed boat or yacht. The C120W uses a theater like widescreen display that allows you to view more data on a crisp, high-resolution, 1280x800 WXGA 12.1" Display.
Internal GPS WAAS Antenna – The built-in highly sensitive GPS Sensor makes installation much easier by preventing you from having to run an antenna to the top of your boat. Some boats with a closed bridge or pilot house may require an external antenna and in that case would need to purchase a Raymarine Raystar 125.
Digital Radar – The C-Series Widescreen is compatible with Raymarine’s digital high performance radar domes. Choose one of two 4KW digital radars, the RD418 18” radome has a 4.9 degree horizontal beam width and the RD424D is a larger 24” dome that has a 3.9 degree beam width. The lower the radar’s beam width, the better a target will be represented. This information can be clearly viewed in full screen or split screen mode or overlaid on the chartplotter page (heading sensor required).
Digital Fishfinder – Raymarine has gone all Digital which includes its unmatched HD Digital Sounder. To add a fishfinder to the C-Series Widescreen you will need purchase either the DSM30 or DSM300 and a transducer. The DSM30 boasts 600 watts while the DSM300 pushes the output power up to 1000 watts. The HD Digital fishfinder can automatically adapt to current conditions by adjusting its own gain and range. View the screen of your choice with options of Split Screen, frequency, zoom, bottom lock and A-scope.
The C120 Widescreen completes the total network answer by giving you the options of adding AIS, Video inputs and Sirius Marine Weather and Radio.Order now through November 30th and get a $500.00 mail-in rebate and an SR100 Weather receiver from Raymarine! To view the rebate coupon, "Click Here".
