The Raymarine C140W widescreen multifunction chartplotter uses an enormous 14.1" display to show your location, fishfinder, weather and more. Order now through March 31st and get a $1000 mail in rebate and a free SR100 Weather Receiver.

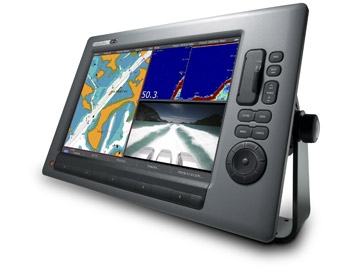

Raymarine C140W Widescreen Details
Each Raymarine C140W comes with: C140W 14.1" Display, Flush Mount Kit, Power/Data Cable 1.5M, Suncover, Marine Electronics Screen Cleaner, Document Pack and a Two-Year Warranty.
Unit Size: 11.3”H x 16.9”W x 4.4”D
Display Size: 14.1” Diag.
Raymarine C140W Special Features
- 1280 x 800 WXGA resolution 256 Color displays for the clearest picture possible.
- Built-In Internal GPS Sensor
- Multifunction Capable. Add Radar, fishfinder and more...
- Pre-loaded with Navionics Cartography and Navionics Platinum Compatible.
- Waterproof and Rugged design with straightforward operation.
Raymarine C140W Specifications
| # Of Waypoints |
# Of Routes |
Track log |
Receiver Type |
Display Size |
Plotter Type |
| 3000 with name |
150 |
15 tracks
3000 points per track |
Included Internal |
Color 14.1" |
Chartplotter |
| Supports Lat/Lon |
|
Looking for the same unit, with a smaller display?
Take a look at the
Raymarine C120W.
|
With the C140W you will always be in the know.
The Raymarine C140W Widescreen GPS Chartplotter brings ease-of-use to a single display or two-display station. You can network the C140W with one other C90W, C120W or C140W. This is great for side by side installation or a cockpit and tower designed boat or yacht. The C140W uses a theater like widescreen display that allows you to view more data on a crisp, high-resolution, 1280x800 WXGA 14.1" Display.
Internal GPS WAAS Antenna – The built-in highly sensitive GPS Sensor makes installation much easier by preventing you from having to run an antenna to the top of your boat. Some boats with a closed bridge or pilot house may require an external antenna and in that case would need to purchase a Raymarine Raystar 125.
Digital Radar – The C-Series Widescreen is compatible with Raymarine’s digital high performance radar domes. Choose one of two 4KW digital radars, the RD418 18” radome has a 4.9 degree horizontal beam width and the RD424D is a larger 24” dome that has a 3.9 degree beam width. The lower the radar’s beam width, the better a target will be represented. This information can be clearly viewed in full screen or split screen mode or overlaid on the chartplotter page (heading sensor required).
Digital Fishfinder – Raymarine has gone all Digital which includes its unmatched HD Digital Sounder. To add a fishfinder to the C-Series Widescreen you will need purchase either the DSM30 or DSM300 and a transducer. The DSM30 boasts 600 watts while the DSM300 pushes the output power up to 1000 watts. The HD Digital fishfinder can automatically adapt to current conditions by adjusting its own gain and range. View the screen of your choice with options of Split Screen, frequency, zoom, bottom lock and A-scope.
The C140 Widescreen completes the total network answer by giving you the options of adding AIS, Video inputs and Sirius Marine Weather and Radio.
Order now through March 31st and get a $1000 mail in rebate and a free SR100 Weather Receiver.
Click here to download a copy of the Raymarine rebate form.
|
| |
RA63069
|
Raymarine DSM300 Digital Sounder
The Raymarine DSM300 Digital Sounder Module will connect to your Raymarine C-Series or E-Series multifunction display to add a 1000w fishfinder/soner.
|
$599.95
|
|
| |
|
| |
| |
|
| |
| |
|
| |
| |
RA03015
|
Raymarine AIS 250 Receiver
The Raymarine AIS 250 Receiver Module receives and displays up-to-the minute monitoring of class A and B AIS broadcasts which are then displayed onto your Raymarine C or E series marine monitor.
|
$619.95
|
|
| |
RA92181
|
Raymarine RD418D 4KW Digital Radar
The Raymarine RD418D 4KW Digital Radar Dome provides superior target detection at a range up to 24nm. Compatible with Raymarine G-Series, E-Series Classic, E-Series Widescreen and C-Series Widescreen Displays.
|
List: $1,529.00
$1,329.00
|
|
| |
RA92182
|
Raymarine RD424D 4KW 48nm Digital Radar
The Raymarine RD424D 4KW Digital Radar Dome has an impressive 3.9 degree horizontal beam width for superior target detection and will cover upto 48nm. Compatible with Raymarine G-Series, E-Series Classic, E-Series Widescreen and C-Series Widescreen Displays.
|
List: $2,259.00
$1,969.00
|
|
| | | |
|
