Standard Horizon CP-300 Special Features
- 12 parallel channel WAAS GPS receiver for increased accuracy.
- 3 year waterproof warranty.
- Optional C-map Max chart cards for outstanding chart detail and tide information.
- High Speed 300Mhz processor with graphics controller for faster chart redraws and panning.
- 7" High resolution (800 x 480) sunlight viewable color display.
- Compatible with Optional FF520 black Box module.
Standard Horizon CP-300 Specifications
| # Of Waypoints | # Of Routes | Track Log | Receiver Type | Display Size | Plotter Type |
| 600 with name and symbol | 20 | 1000 points 10 saved tracks | 12 Channel WAAS | 7" diagonal 800 x 480 pixels | Chart Plotter |
| Supports Lat/Lon, Loran TD's | |||||

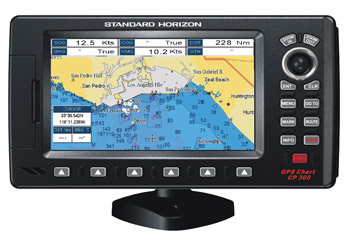

High Res 800 x 480, 7” widescreen Chartplotter from Standard!
Standard Horizon took the excellent features of the CP155C, and added a larger display, dual NMEA input ports and dedicated menu buttons and created the CP300C. This is an outstanding chartplotter. The 7” color, high resolution 800 x 480 display is a 16:9 wide aspect ratio and is sunlight viewable.
The C-Map cartridge port will allow you to enhance your basemap with a C-Map MAX NT card for the latest in marine cartography. The two NMEA ports allow full repeater capability at a second nav station. Just like the other Standard Horizon Chartplotters, the CP300 employs the same high speed RISC processor, a 12 channel WAAS GPS receiver and built in world base map.
The CP300C also uses a quick release mounting bracket that eliminates a messy wiring harness and more importantly- at the end of the day simply unplug the display and stow it- a great security feature. The dedicated menu buttons make using this unit a snap. The CP300C is offered with a built-in antenna or external antenna with 30' cable.
Optional FF520 Sounder- The Standard Horizon FF520 Digital Black Box Fish Finder can turn your CP-155C,CP-180, CP-300 or CP-1000C into a 500/1000 Watt powerhouse. The FF520 features advanced filtering, which will eliminate unwanted noise and sharpens echoes to enhance separation and detection. The FF520 Black Box Fish Finder features Transducer ID, which will detect the transducer that is connected and automatically adjust the settings in the unit to optimize the performance of your system.
Size 5.7"h x 9.9"w x 1.7"d(without bracket).We are a C-Map Programming outlet.Click Here and visit the C-Map website to view Max chart coverage areas.
