Garmin GPS 24xd HVS Multi-Band Antenna

Garmin GPS 24xd HVS Multi-Band Antenna

Garmin’s GPS24XD HVS GPS antenna provides multi-band GNSS accuracy to 1M. The magnetic heading sensor provides accuracy to within 3 degrees with enhanced stabilization at slow speeds. Includes NMEA0183 Bare wire connection, under-deck, pole and surface mount options.
  • SKUGA02316
  • MAN#010-02316-00
  • ID#: 6487
(Rating 86)
Our Price:
In Stock
FREE Ground Shipping!
Brand New
free ups ground

Enhanced GPS Position with accuracy to 1 meter!

The GPS 24XD HVS antenna from Garmin offers Multi Constallation compatiblitly. Designed to work globally, the 24 xd works off GPS, Galileo, GLONASS and BeiDou satellite systems and combines Multi-SBAS (Satellite Based Augmentation System)providing you with the most accurate data, more quickly than ever before. Delivering important information such as position, heading, & speed up to 10 times faster to your multifunction display (MFD) unit or other instruments & displays. Built with a 32 channel receiver that’s WAAS capable, you will get an accurate position reading regardless of speed within 1m (3.28ft.) New to the 24XD Antenna is Magntic Heading sensors which provide accurary to 3 degrees - stabilizing charts, radar overlay and MARPA even at slow speeds!

Designed with the elements in mind, the Garmin 24XD is waterproof to IPX7 standards and can be easily pole mounted, flush mounted and can also be mounted on the underside of many fiberglass decks providing you with a number of options that can best suite your needs. Ease of installation & accuracy in mind, the HVS version of the 24XD with bare wire connections with pair with your compatible NMEA0183 chartplotter and will also eliminate position skipping at trolling speed and provides you quick & accurate true heading information, helpful most when coming out of turns. To obtain the quickest & most accurate data with a GPS receiver, the Garmin 24XD is the perfect match for your multifunction display.

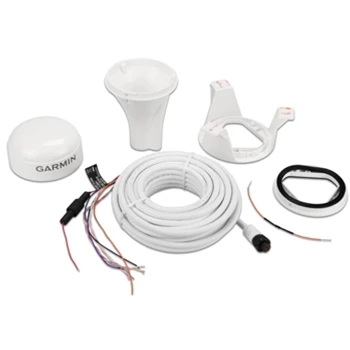

Garmin GPS 24XD HVS Multi-Band Antenna Box Contents
Each Garmin GPS 24XD Comes with:
  • Garmin GPS 24XD HVS Multi-Band Antenna
  • Pole, Surface and Under Deck Mount
  • Documentation
  • Two Year Warranty
Garmin GPS 24XD GPS Antenna Key Features
  • Multi-band GNSS enhances accuracy to within 1meter
  • Compatible with multiple satellite constellations – GPS, Galileo, GLONASS and BeiDou for global usage
  • 10HZ Position Update
  • NMEA0183 Connectivity
  • Includes multiple mounting options – pole, surface or under deck
