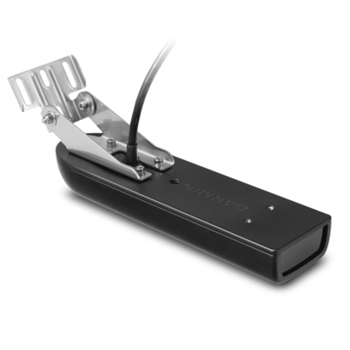

The Garmin GT51 M-TM is a 12 pin transom mount transducer with temp sensor that provides 500W CHIRP ClearVü/SideVü (CHIRP 260/455 kHz) and 600W CHIRP (Mid-band CHIRP 80-160 kHz) Sonar. This technology provides you with ultra-clear images of what is beside and beneath your boat. The GT51M-TM is optimized to provide you with the best performance in rough waters. The combination elements of the GT51M-TM provide up to 1500 watts of power when operating in ClearVu/SideVu frequencies of 260/455 kWh while the traditional CHIRP has 600 watts of power and operates in the mid-band CHIRP frequencies of 80-160. A fast response temp sensor is also part of the GT51M-TM. This transducer is compatible with Garmin’s XSV Chartplotter/sounder and their GSD 25 Sonar Module.
Compatible with Garmin echoMAP CHIRP sv Models, GPSMAP 7600xsv Series, ECHOMAP Plus and UHD sv units, and GSD25 - 12 Pin Connection.
*600W CHIRP Frequency Range - Mid-Band CHIRP 80-160kHz, Maximum Depth 1,800 ft
*ClearVu/SideVu CHIRP Frequency Range - 260kHz = 245-275 and 455kHz = 445-465
*ClearVu Maximum Depth 1,000 ft, SideVu Maximum 750 ft
The 010-01966-00 replaces the Garmin CV51M-TM, 010-12761-00.
Cable Length: 30 Feet
Product Accessories for Garmin GT51M-TM Transom Mount Transducer
PropSpeed's FoulFree Transducer Coating Kit is the biggest advancement in transducer paint and coatings in the last 30 years. It will keep your thru-hull or transom mount transducer free of marine growth. This nontoxic formula has zero leaching of harmful chemicals into water unlike traditional anti-fouling bottom paints and is certified by Airmar.
Garmin Heavy Duty Transom Mount with Spray Shield
Garmin 30 foot transducer extension cable for Garmin 12-Pin Transducers.
Garmin Spray Shield for DownVu/SideVu Transducers
Garmin 10 foot transducer extension cable for Garmin 12-Pin Transducers.
