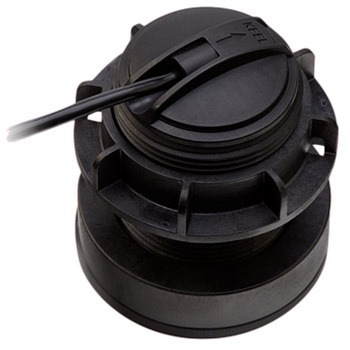

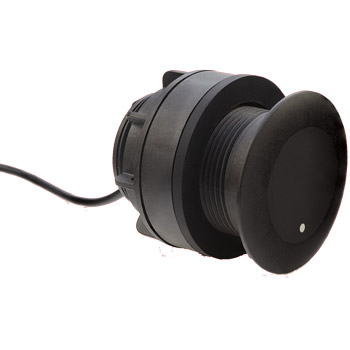

The CPT-S High CHIRP Plastic Thru-Hull Flush Mount transducer is easy to install and offers high resolution sonar imagery and exceptional performance at speed. This single element conical CHIRP transducer provides a 25 degree fish targeting beam with a maximum depth range to up 900ft. Compatible with the Axiom RV, Axiom Pro S, Axiom 2 Pro S and Axiom Pro RVX with the addition of an A80490 adapter cable, this CPT-S transducer is a great add-on. If you are connecting to an MFD that has a CP100 sonar module, installation is plug and play without the need of any additional adapters. This model accommodates hulls with a deadrise of 15-25 degrees.
Product Accessories for Raymarine CPT-S High Frequency 20° Plastic Thru Hull CHIRP Transducer
PropSpeed's FoulFree Transducer Coating Kit is the biggest advancement in transducer paint and coatings in the last 30 years. It will keep your thru-hull or transom mount transducer free of marine growth. This nontoxic formula has zero leaching of harmful chemicals into water unlike traditional anti-fouling bottom paints and is certified by Airmar.
Raymarine's A80490 adapter cable is required for all CPT-S tranducers to connect to an Axiom RV, Axiom Pro S, Axiom 2 Pro S and an Axiom Pro RVX. 9 pin connection from CPT-S transducer will plug into the 25 pin connection on the MFD.
