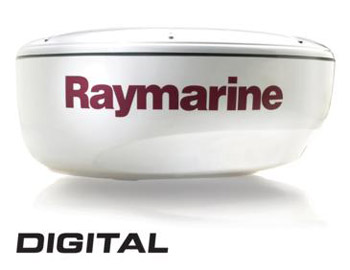

The Raymarine RD418D 4KW Digital Radar Dome provides superior target detection at a range up to 24nm. Compatible with Raymarine G-Series, E-Series Classic, E-Series Widescreen and C-Series Widescreen Displays.
Raymarine RD418D Special Features
- 4kw transmitting power.
- 4.9 degree horizontal beamwidth for enhanced target resolution.
- 24RPM High-Speed rotation rate.
- Simplified installation with new thinner interconnect cable for power and data.
Huge power in a small package!
The Raymarine RD418D Digital Radar offers unmatched performance by using both digital and analog processing and with a 24nm maximum range scale and beam width of 4.9 degrees, you can be sure you're getting the best resolution and target detection available. The 418D uses SeaTalk networking for plug and play capabilities with C-Series Widescreen, E-Series, and G-Series multifunction displays and networks. A class leading 8 pulse width/PRF transmitter guarantees optimum performance through every range scale and Auto GST technology provides simple control of gain and sea clutter. The RD418D’s high powered 4kw transmitter also allows excellent penetration through rain and fog.
RD418D Specs:
Diameter: 20.51 in.
Height: 9.72 in.
Weight: 21 lbs.
Max. Range Scale: 24nm
Peak Power Output: 4 kw
Horizontal Beam Width: 4.9 Degrees
Vertical Beam Width: 25 Degrees
Rotation Rate: 24 rpm
**Packed with 10m Radar Cable, 1.5M SeaTalk High Speed Network Cable and one SeaTalk High Speed Crossover Coupler.
|
