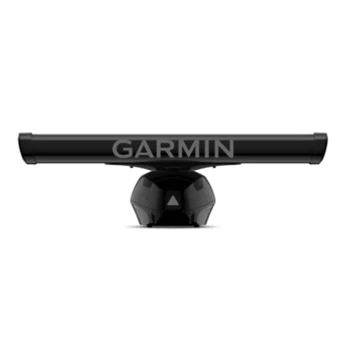

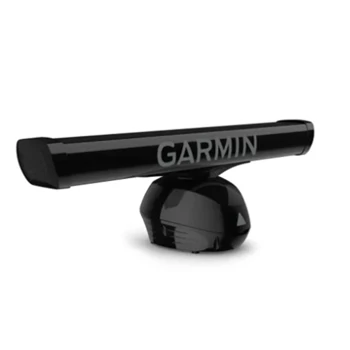

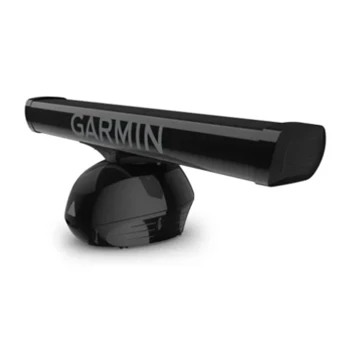

Garmin GMR Fantom 54 Radar with 4’ Open Array Antenna - Black

Garmin’s GMR Fantom 54 open array radar provides 50W of pulse compression power output combined with a 4’ open array antenna. The Fantom 54 includes MotionScope, True echo Trails and a detection range of 20’- 72 nm.
Color: Black
  • SKUGA0001230
  • MAN#K10-00012-30
  • ID#: 7918
(Rating 90)
Our Price:
In Stock
Free Ground Shipping!
Brand New

Solid State Radar with 4’ Open Array Antenna!

Are you in the market for a top choice radar to pair with your Garmin GPSMAP MFD? Look no further! Introducing the Garmin Fantom 54 Solid State, Open-Array Radar in Black. With a 4' open array antenna and 50 watts of pulse compression power output (equivalent of a 6kW magnetron) the Fantom is a top choice for GPSMAP 7x2, 9x2, 10x2, 12x2, 7400, 7600, 8000, 8200, 8400 and 8600 series.

With MotionScope Technology the Fantom radars Call for Help with Marine Electronics detect and highlight moving targets in different colors to keep situational awareness at a maximum. Avoid potential collisions, find flocks of birds and even track weather! Plus with pulse compression the images are display in high resolution maximizing target detection and identification.

High powered at 50W and a narrow 1.8° beam width the Fantom offers exceptional target separation as close as 20' and up to 72nm away, even in fog or rain! Clear and accurate, the fantom displays images in great detail allowing you to even distinguish between large and small targets! Add to that echo trails and you will now see a fading trail on screen which will assist in identifying moving targets and know if they're headed your way. Add a autopilot or heading sensor to your Garmin network and it will then correct the trails based on boat rotation.

There are so many features packed into the Fantom that are sure to beneficial while out on the water. With Auto Bird Gain your Fantom will assist you in locating flocks of birds on the water and we all know that's where your baitfish are likely to be located. Dynamic Auto Gain and Sea Filter settings automatically adjusts to your surroundings and adjusts gain according to ensure maximum performance in all settings. Dual Range with Radar Overlay (Optional Heading sensor or autopilot is recommended for most accurate results) allows you to view both close and long range targets side by side on your chartplotter map page or viewed as a chart overlay. And with MARPA Target tracking you can track up to 10 selected targets allowing you to keep track of other vessels and avoid potential collisions.

Simple to operate and install, the Fantom 54- Black also allows for dual radar support which provides redundancy and allows you to select from one of 2 different radar sources as well as a Guard zone, alerting you if something comes into your dedicated safety zone. Reliable and providing optimal performance.

Garmin Fantom 54- Black Box Contents
Each Garmin Fantom 54- Black Comes with:
  • Fantom 54 50W Pedestal in Black 010-01364-40
  • 4’ Antenna in Black 010-01365-10
  • Mounting Hardware kit and Template
  • 15M Right-Angle Power Cable
  • 15M Right-Angle Network Cable
  • Documentation
  • Two Year Warranty
  • Pedestal Size: 16.6"W x 14.3 "H x 10.7“D
  • Array Size: 52.3" W x 5.4" H x 6.9" D
Garmin GMR Fantom 54- Black Key Features
  • 50 Watts of Pulse Compression Power Output – equivalent to a 6kW Magnetron Radar
  • MotionScope Technology – detects and shows targets in different colors
  • True echo Trails – Shows a fading trail to assist in locating moving targets
  • MARPA – Track up to 10 selected targets
  • Detection Range of 20’ to 72 nm
