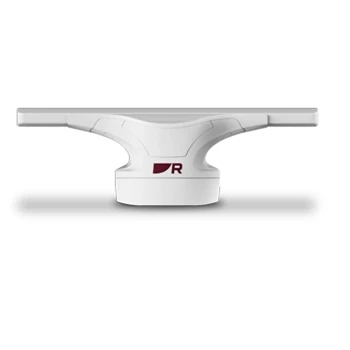

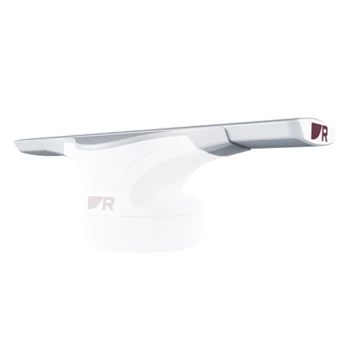

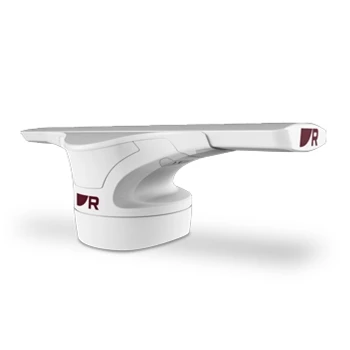

Raymarine Cyclone 55W Radar with 3' Open Array

Free Ground Shipping!

Raymarine Cyclone 55W Radar with 3' Open Array

The Raymarine Cyclone 55W radar with 3-foot open array boasts a 2.83 degree horizontal beam width providing exceptional target separation and a 72NM range. Designed with innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology, and high-speed 60 rpm imaging.
  • SKURAT70491
  • MAN#T70491
  • ID#: 6892
(Rating 88)
Our Price:
In Stock
Free Ground Shipping!
Brand New

Open Array Radar with 3’ Antenna!

Raymarine's 55W Cyclone Radar is the perfect addition to your vessel for state-of-the-art technology, situational awareness, and superior target separation. Mariners can set out on their voyage with confidence to maneuver through harsh weather conditions and high traffic areas with this 4 ft. open array. Typical boot up time within 40 seconds and standby to transmit time of less than 5 seconds ensures every time you fire up your electronics the Cyclone radar will be ready to perform as soon as you leave the dock.

Newer, improved design on the Cyclone radars offer aircraft wing inspired designs that are engineered for extreme wind ratings up to 100 knots and meets the commercial grade rating of IEC 62388 standard for ship bourne radars. A low-profile build coming in at 13.1 inches (335mm) tall, offers more flexibility for installation for different boat architectures. The Cyclone offers an innovative pedestal which seamlessly conceals cable connections for a much cleaner installation than found on previous radar models.

Combined fishing intelligence and RangeFusion technology tunes you in to see flocks of birds along with the enhanced Cyclone Bird Mode which utilizes CHIRP pulse compression technology. RangeFusion will combine short and long pulses into a single high-clarity image which provides exceptional short-range and long-range targets simultaneously. Fully compatible with the Axiom Plus, Axiom Pro, and Axiom XL series (with latest software update version of Lighthouse Hvar 3.16) you will obtain complete Cyclone connectivity and will gain access to all this radar has to offer right at your fingertips. For the ultimate radar experience, the Raymarine Cyclone is the superior option.

Stay Alert! Situational awareness is key every time your boat enters the water. Whether in a crowded marina or off-shore, the Cyclone radar offers Doppler Technology which simplifies tracking and the interpretation of dangerous and safe targets for an added peace of mind. Professional grade ARPA tracking automatically tracks up to 50 targets utilizing the same ARAP technology trusted by the United States Coast Guard. 360-degree awareness with a 60 RPM rotational speed, accurately displays target tracks in real time so you always have the freshest target data right at your fingertips.

    3' Open Array Specs
  • Vertical Beamwidth: 25 degrees
  • Horizontal Beamwidth: 2.83 degrees
  • Polarization: Horizontal
  • Length: 40.59in (1336mm)
  • Weight: 15.4lb (9Kg)

Raymarine Cyclone 55W Radar with 3' Open Array Box Contents

Each Raymarine Cyclone 55W Radar with 3' Open Array Comes with:
  • Pedestal
  • M10 Stud(x4), Nut(x8),Spring Washer(x4)Plain Washer x4
  • Mounting Gasket and Template
  • Radar Data Cable
  • Power Cable
  • Antenna
  • Threaded Alignment Guide
  • Washer, Spring Washer and Nut
  • VCM100 with Cable Clamp and Screws
  • Up to a 3 Year Warranty

Raymarine Cyclone 55W Radar with 3' Open Array Key Features

  • Solid State Open Array
  • Provide Superior target separation
  • Cyclone Bird Mode
  • High Speed 60 RPM Imaging
  • Low Profile and Aircraft Wing Inspired
  • Pedestal Size: 15.27"W x 14.17"H x 13.18“D
  • Array Size: 40.59” in Length
