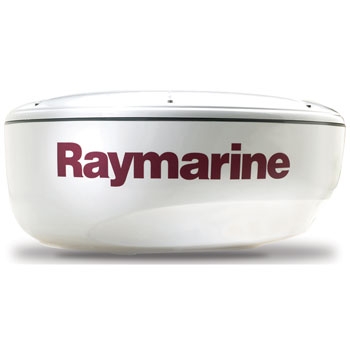

Raymarine RD418HD 4KW HD Digital Radar

Free Ground Shipping!

Raymarine RD418HD 4KW HD Digital Radar

The Raymarine HD Digital Color Radome combines the power and clarity of HD signal processing with an ultra-compact radome scanner suitable for all types of vessels.
  • SKURAT70168
  • MAN#T70168
  • ID#: 3318
(Rating 85)
Our Price:
Usually Ships in 3-5 Days
Free Ground Shipping!
Brand New

Huge power in a small package!

The Raymarine RD418HD Digital HD Radar Dome offers unmatched performance by using HD Signal processing and with a 48nm maximum range scale and beam width of 4.9 degrees, you can be sure you're getting the best resolution and target detection available. The RD418HD’s high powered 4kw transmitter also allows excellent penetration through rain and fog.

Compatible with C-Series Widescreen, E-Series Classic, E-Series Widescreen, e7, e7d, c95, c97, e95, e97, c125, c127, e125, e127, eS75,eS77, eS78, eS97, eS98, eS127, eS128 and G-Series Multifunction Displays.

RD418HD Specs:
Diameter: 20.51 in.
Height: 9.72 in.
Max. Range Scale: 48nm
Peak Power Output: 4 kw
Horizontal Beam Width: 4.9 Degrees
Vertical Beam Width: 25 Degrees
Rotation Rate: 24 rpm

**Packed with 10m Radar Cable with Raynet Connector.

*Eligible for Raymarine 3-Year Warranty if product is registered within 90 days of purchase.

*If connecting to E-Series Classic, C-Series or E-Series Wide Screen Series, Seatalk HS Network Cabling will be required.

Raymarine RD418HD Box Contents
Each Raymarine RD418D Comes with:
  • Radome Antenna
  • 10m Radar Cable with Raynet Connector
  • Bolts and Washers
  • Size: 20.5"W x 9.7"H
Raymarine RD418HD Key Features
  • 4kw transmitting power.
  • 4.9 degree horizontal beamwidth for enhanced target resolution.
  • 24RPM High-Speed rotation rate.
