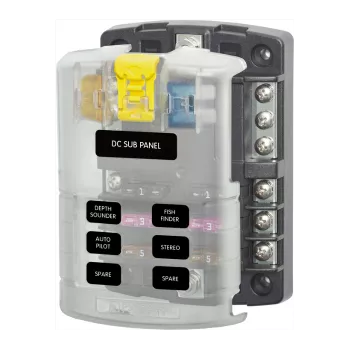

Blue Sea Fuse Block ST Blade 6 Circuit w GND

Blue Sea Fuse Block ST Blade 6 Circuit w GND

Blue Sea Fuse Block ST Blade 6 Circuit w GND

The Blue Sea Fuse Block provides a compact, cost-effective way to add circuit protection when breaker space is limited. A single breaker can protect the main feed, while the 6-position fuse block delivers dedicated protection for each electronic device. * Fuses Sold Separately
  • SKUBS5025
  • MAN#5025-BSS
  • ID#: 8675
Our Price:
$39.95
Availability:
In Stock
Condition:
Brand New

6 Circuit Fuse Block with Negative Bus and Cover

  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits
  • Models available with or without a cover
  • Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification
  • Fuse blocks with covers include 20 write-on circuit labels
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses sold separately

    • Blue Sea Fuse Block ST Blade 6 Circuit w GND Box Contents

    Each Blue Sea Fuse Block ST Blade 6 Circuit w GND Comes with:
    • ST Blade Fuse Block w/ Cover

      • Blue Sea Fuse Block ST Blade 6 Circuit w GND Key Features

      • Positive distribution bus with #10-32 stud
      • Can be used for 24-hour circuits
      • Easy to open push button latch providing easy access to fuses
      • Number of circuits: 6
      • Maximum Amperage:100A per block,30A per circuit
