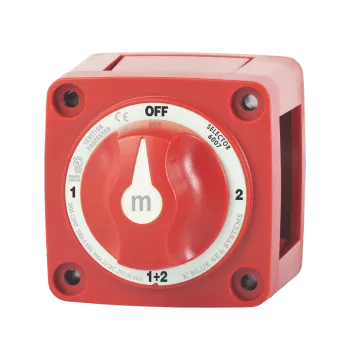

Blue Sea Battery Switch M-Series Selector

Blue Sea Battery Switch M-Series Selector

Blue Sea Battery Switch M-Series Selector

The Blue Sea Battery Switch M-Series Selector switches isolated battery banks to all loads or combines battery banks to all loads.
  • SKUBS6007
  • MAN#6007-BSS
  • ID#: 8683
Our Price:
$35.95
Availability:
In Stock
Condition:
Brand New

Mini Selector Battery Switch

Switches isolated battery banks to all loads or combines battery banks to all loads
  • Make before break contact design allows switching between battery banks without power interruption

    • Blue Sea Battery Switch M-Series Selector Box Contents

    Each Blue Sea Battery Switch M-Series Selector Comes with:
    • m-Series Mini Selector Battery Switch-Red

      • Blue Sea Battery Switch M-Series Selector Key Features

      • Switch Type: Selector 4 Position
      • Color: Red
      • Switch Positions: 4
      • Battery Combine: Yes
      • Alternator Field Disconnect: No
      • Maximum Voltage: 32V DC
      • Stud Size: 3/8"
      • Terminal Stud Torque: 120 in-lb (13.56 Nm)
      • Continuous Rating: 300A
      • Intermittent Rating: 500A (5 min)
      • Starting Rating 30 sec: 900A
      • Battery Inputs: 2
      • Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
      • Cable Size to Meet Ratings: 4/0 AWG (120mm²)
      • Mounting Holes: Accept #10 Screw
      • Stud Material: Tinned Copper
      • Stud Torque: 120 in-lb (13.56 Nm)
      • Switching Rating: 25A
      • Terminal Stud Size: 3/8" - 16 (M10)
      • Weight: 0.77lb (0.35 kg)
