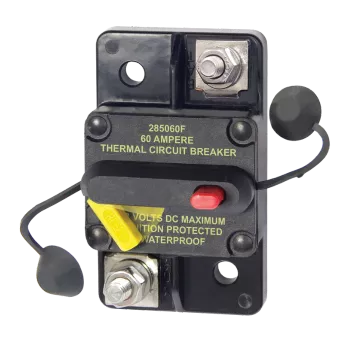

Blue Sea Circuit Breaker Buss 285 SfcMt 60A

Blue Sea Circuit Breaker Buss 285 SfcMt 60A

Blue Sea Circuit Breaker Buss 285 SfcMt 60A

The Blue Sea Circuit Breaker Buss 285 SfcMt 60A provides circuit protection and switching functions in one unit. Is a replacement for 185 series circuit breakers.
  • SKUBS7184
  • MAN#7184-BSS
  • ID#: 8687
Our Price:
$52.95
Availability:
In Stock
Condition:
Brand New

60A 285-Series Circuit Breaker

  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit*
  • "Trip Free" - cannot be held closed after trip

    • Blue Sea Circuit Breaker Buss 285 SfcMt 60A Box Contents

    Each Blue Sea Circuit Breaker Buss 285 SfcMt 60A Comes with:
    • 60A 285-Series Circuit Breaker

      • Blue Sea Circuit Breaker Buss 285 SfcMt 60A Key Features

      • Amperage: 60A
      • Maximum Voltage: 48V DC
      • Mounting: Surface Mount
      • Circuit Breaker Type: Thermally responsive Bi-metal blade
      • Terminal Stud: M6 (accepts 1/4" Ring Terminal)
      • Terminal Stud Torque: 50 in-lb (5.65 Nm)
      • Interrupt Capacity: 3000A @ 48V
      • Minimum Operating Temperature: -40° C
      • Maximum Operating Temperature: 85° C
      • Circuit Breaker Class: Type III - switchable/manual reset - trip free
      • Weight: 0.50lb (0.23 kg)
