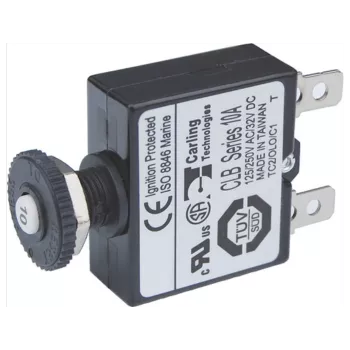

Blue Sea Circuit Breaker Push Button 10A

Blue Sea Circuit Breaker Push Button 10A

Blue Sea Circuit Breaker Push Button 10A

The Blue Sea Circuit Breaker Push Button 10A is a push button quick connect circuit breaker ideal for automotive, marine, and industrial applications.
  • SKUBS7054
  • MAN#7054-BSS
  • ID#: 8685
Our Price:
$6.95
Availability:
In Stock
Condition:
Brand New

Push Button Connect Circuit breaker- 10 Amps

  • Branch circuit breakers (can also be used for 24-hour circuit protection)
  • Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
  • Compact design enables high density circuit protection configurations
  • Push-to-reset operation
  • “Trip Free” design cannot be held “ON” during fault current condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

    • Blue Sea Circuit Breaker Push Button 10A Box Contents

    Each Blue Sea Circuit Breaker Push Button 10A Comes with:
    • 10A Push Button Connect Circuit Breaker

      • Blue Sea Circuit Breaker Push Button 10A Key Features

      • Amperage: 10A
      • Maximum Voltage: 32V DC
      • Mounting: Panel Mount 3/8-27 UNS
      • Circuit Breaker Type: Thermal trip, manual push-button reset only
      • Terminal Type: 1/4 Male Quick Connect
      • Interrupt Capacity: 3000A @ 14.7V, 2500A @ 28V
      • Minimum Operating Temperature: -10° C
      • Maximum Operating Temperature: 60° C
      • Screw Terminal Torque: 6 in-lb (0.68 Nm)
      • Weight: 0.06lb (0.03 kg)
