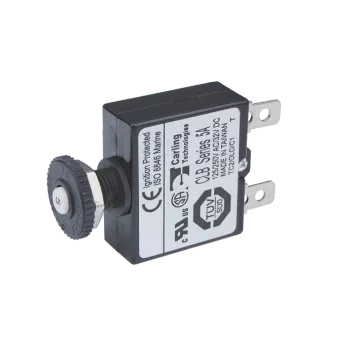

Blue Sea Circuit Breaker Push Button 5A

Blue Sea Circuit Breaker Push Button 5A

Blue Sea Circuit Breaker Push Button 5A

The Blue Sea Circuit Breaker Push Button 5A is a push button quick connect circuit breaker ideal for automotive, marine, and industrial applications.
  • SKUBS7052
  • MAN#7052-BSS
  • ID#: 8684
Our Price:
$6.95
Availability:
In Stock
Condition:
Brand New

Push Button Connect Circuit breaker- 5 Amps

  • Branch circuit breakers (can also be used for 24-hour circuit protection)
  • Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
  • Compact design enables high density circuit protection configurations
  • Push-to-reset operation
  • “Trip Free” design cannot be held “ON” during fault current condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

    • Blue Sea Circuit Breaker Push Button 5A Box Contents

    Each Blue Sea Circuit Breaker Push Button 5A Comes with:
    • 5A Push Button Connect Circuit Breaker

    Blue Sea Circuit Breaker Push Button 5A Key Features

    • Amperage: 5A
    • Maximum Voltage: 32V DC
    • Mounting: Panel Mount 3/8-27 UNS
    • Circuit Breaker Type: Thermal trip, manual push-button reset only
    • Terminal Type: 1/4 Male Quick Connect
    • Interrupt Capacity: 3000A @ 14.7V, 2500A @ 28V
    • Minimum Operating Temperature: -10° C
    • Maximum Operating Temperature: 60° C
    • Screw Terminal Torque: 6 in-lb (0.68 Nm)
    • Weight: 0.06lb (0.03 kg)
