Blue Sea Selector Battery Switch e-Series

Blue Sea Selector Battery Switch e-Series

Blue Sea Selector Battery Switch e-Series

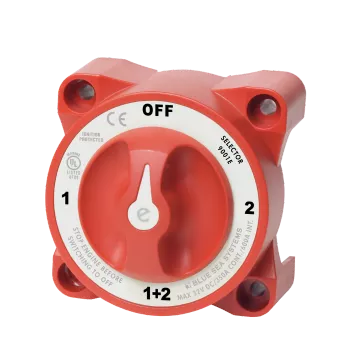

The Blue Sea Selector Battery Switch e-Series is a 4 position selector switch that switches isolated battery banks to all loads or combines battery banks to all loads.
  • SKUBS9001E
  • MAN#9001E-BSS
  • ID#: 8689
Our Price:
$42.95
Availability:
In Stock
Condition:
Brand New

4 Position Selector Battery Switch

  • Make-before-break contact design allows switching between battery banks without power interruption
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting

    • Blue Sea Selector Battery Switch e-Series Box Contents

    Each Blue Sea Selector Battery Switch e-Series Comes with:
    • e-Series Battery Switch

      • Blue Sea Selector Battery Switch e-Series Key Features

      • Switch Type: Selector 4 Position
      • Color: Red
      • Switch Positions: 4
      • Battery Combine: Yes
      • Alternator Field Disconnect: No
      • Maximum Voltage : 32V DC
      • Terminal Stud Torque: 140 in-lb (15.82 Nm)
      • Continuous Rating: 325A
      • Intermittent Rating: 600A (5 min)
      • Starting Rating 30: 1200A
      • Battery Inputs: 2
      • Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
      • Cable Size to Meet Ratings: 4/0 AWG (120mm²)
      • Mounting Holes: Accept 1/4" (M6) Screw
      • Stud Material: Tinned Copper
      • Switching Rating: 25A
      • Terminal Stud Size: 3/8" - 16 (M10)
      • Weight: 1.15lb (0.52 kg)
