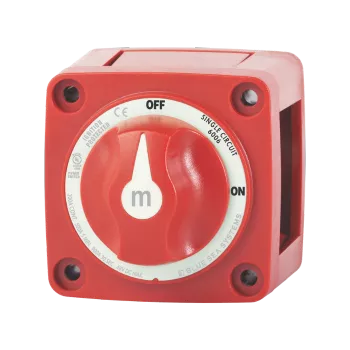

Blue Sea Switch Batter M On/Off w/ Knob

Blue Sea Switch Batter M On/Off w/ Knob

Blue Sea Switch Batter M On/Off w/ Knob

The Blue Sea Switch Batter M On/Off w/ Knob that switches a single battery to a single load group.
  • SKUBS6006
  • MAN#6006-BSS
  • ID#: 8682
Our Price:
$26.95
Availability:
In Stock
Condition:
Brand New

On-Off Battery Switch with Knob

  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface, front panel, or rear panel mounting
  • Isolating cover with snap-on sections protects rear contacts

    • Blue Sea Switch Batter M On/Off w/ Knob Box Contents

    Each Blue Sea Switch Batter M On/Off w/ Knob Comes with:
    • m-Series Mini On-Off Battery Switch with Knob

      • Blue Sea Switch Batter M On/Off w/ Knob Key Features

      • Switch Type: Single Circuit ON-OFF
      • Color: Red
      • Switch Positions: 2
      • Battery Combine: No
      • Alternator Field Disconnect: No
      • Maximum Voltage: 48V DC
      • Stud Size: 3/8"
      • Terminal Stud Torque: 120 in-lb (13.56 Nm)
      • Continuous Rating T: 300A
      • Intermittent Rating: 500A (5 min)
      • Starting Rating 30 sec: 900A
      • Battery Inputs: 1
      • Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
      • Cable Size to Meet Ratings: 4/0 AWG (120mm²)
      • Mounting Holes: Accept #10 Screw
      • Stud Material: Tinned Copper
      • Stud Torque: 120 in-lb (13.56 Nm)
      • Switching Rating: 25A
      • Terminal Stud Size: 3/8" - 16 (M10)
      • Weight: 0.65lb (0.29 kg)
