Reliable, High Resolution 96nm Range Radar!

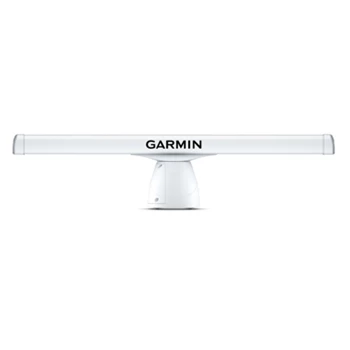

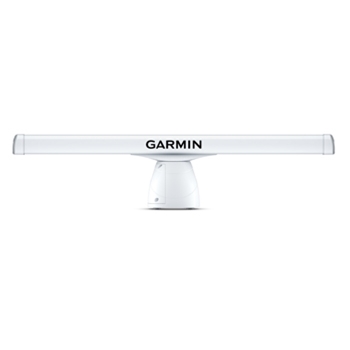

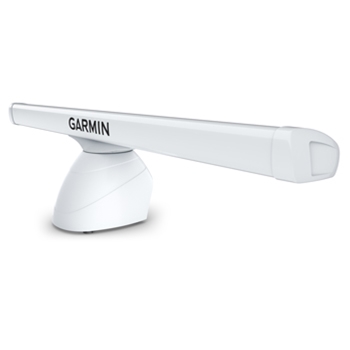

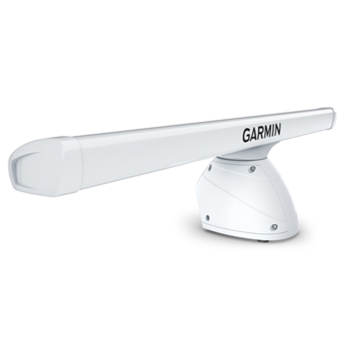

Garmin's GMR 1236 xHD3 radar with 6' open array offers radar detection from 20 meters up to 96 nautical miles ensuring you can see targets near and far! Whether cruising or fishing, the GMR1236 12kW magnetron radar provides peace of mind by displaying crisp, high resolution picture quality on your compatible Garmin display.
With a 1.1-degree horizontal and 23-degree vertical beamwidth, the 6' open array antenna detects objects on the water and enables you to see incredible shoreline detail, precipitation, boats, buoys and other navigational aids. True echo trails display a historical "trail" of boats on the water and helps to quickly identify moving targets while the dual-range feature allows a simultaneous split screen of both close and long range targets.
The high performance 6-foot array features rotation speeds of 24 and 48 RPM providing fast redraw rates. The 6-foot open array is durable, and has a 100-knot commercial wind rating.
The GMR xHD3 series supports MARPA Target Tracking (with appropriate sensors, sold separately). MARPA target tracking allows you to track up to 30 targets to help avoid collisions. Set a safety zone with the Guard Zone feature and receive an alarm when an object enters the zone.
The xHD3 series supports scan averaging technology which helps to filter out sea clutter and interference to enhance the detection and display of consistent targets. Angular target-size adjustments paired with pulse expansion processing optimize on-screen object shapes for better interpretation at all ranges.
For Fisherman, Auto Bird Gain and bird mode preset helps mariners locate flocks of birds at the waters surface which in turn leads you to the fish! Providing a huge advantage over other fisherman and help you save fuel by not blindly searching out on the open ocean.
Garmin GMR 1236 xHD3 12kW 6ft Open Array Radar Box Contents
- GMR xHD3 12kW Open Array Radar with 6’ Antenna
- Power Cable (15m/49.21ft)
- Network Cable (15m/49.21ft)
- Voltage Converter
- Mounting Hardware Kit and Template
- Installation Instructions
- 2-Year Warranty
Garmin GMR 1236 xHD3 12kW 6ft Open Array Radar Key Features
- Scan Average Feature Filters Out Sea Clutter
- Radar Detection Range of 20 Meters to 96 Nautical Miles
- Auto Bird Gain and Bird Mode Preset
- True Echo Trails Feature Displays a Historical ‘Trail’ of Boats on the Water
- Dual-Range Feature Allows Simultaneous Split-Screen Views of Close and Distant Targets
- 1.1-Degree Horizontal, 23-Degree Vertical Beam Width
- Array Dimensions: 76.5"W x 4.8"H x 6.7“D
- Pedestal Dimensions: 20.5"W x 12.9"H x 12.4“D
Product Accessories for Garmin GMR 1236 xHD3 12kW 6ft Open Array Radar
Garmin’s GPS24XD NMEA2000 GPS antenna provides multi-band GNSS accuracy to 1M. The magnetic heading sensor provides accuracy to within 3 degrees with enhanced stabilization at slow speeds. Includes under-deck, pole and surface mount options.
Garmin Small Connector Network Cable 6m. If extending a regular sized network cable, a GAX12531 coupler is required.
The Garmin marine network adapter cable converts small (male) network cable to a large network connector in order to connect to your compatible Garmin chartplotter.
Power your compatible Garmin Radar with this 48 foot long threaded cable.
Garmins 9 Axis Heading Sensor provides accuracy +/- 2°. 10Hz Output Rate ensures your chart orientation and boat heading is accurate with reality. Premium Heading Accuracy at low speeds and even when bow is pitching, rolling or heeling over.
Garmin Small Connector Network Cable 2m. If extending a regular sized network cable, a GAX12531 coupler is required.
Garmin Small Connector Network Cable 12m. If extending a regular sized network cable, a GAX12531 coupler is required.
Garmin Marine Network Cable Small Connector Coupler, this coupler is used to join two Garmin Marine Network Cables together.
The Garmin GMR Voltage Converter is compatible with Garmin xHD3 Open Array Radars. The GMR Voltage Converter enables GMR xHD3 4kW radars to achieve a 100-knot wind rating.
Garmin small connector network cable with right angle, 15m (50 feet).
The Garmin Marine Network Adapter cable connects a small marine connector network cable (female) to a large connector network cable (female). The small connector side of the cable features a right angle making it easier to route cabling.
