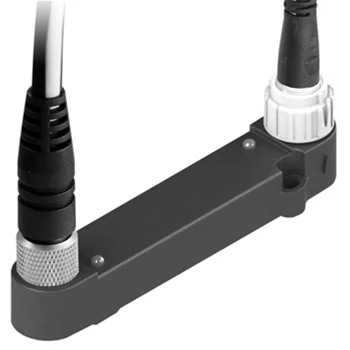

Raymarine ECI-100 Universal Engine and Control Interface

Free Ground Shipping!

Raymarine ECI-100 Universal Engine and Control Interface

Raymarine ECI-100 Universal Engine and Control Interface

The Raymarine ECI-100 Universal Engine and Control Interface bridges engine instrumentation and drive-by-wire steering with Raymarine autopilot and navigation systems. This simple, single point of connection integrates Raymarine’s latest generation of MFD’s and provides autopilot steering interface to Evolution EV-2 Drive by Wire autopilots.
Order Now Through July 7, 2024 and Get Up To $3,000 Back from Raymarine! Click here to View Rebate Details and Savings Tiers. Buy More, Save More!
  • SKURAE70227
  • MAN#E70227
  • ID#: 7912
(Rating 90)
Our Price:
$329.95
Availability:
Usually Ships in 3-5 Days
Shipping:
Free Ground Shipping!
Condition:
Brand New

Eliminates the Need for Multiple Engine and Autopilot Gateways!

An industry standard DeviceNet port connects the ECI-100 to manufacturer specific CAN bus cabling. The ECI-100 then connects to NMEA2000 networks using the SeaTalkng cabling system. Each of the ECI-100's isolated ports is powered independently ensuring reliable, worry-free performance from both navigation electronics and engine systems.

The ECI-100 Universal Engine and Control Interface identifies the following parameters:

  • Engine speed
  • Engine oil temperature
  • Engine temperature
  • Engine oil pressure
  • Engine coolant pressure
  • Engine fuel rate
  • Boost pressure
  • Battery potential
  • Transmission oil pressure
  • Transmission oil temperature
  • Total engine hours
  • Fuel tank level
  • Trip fuel used (calculated by ECI-100)
  • Alternator potential
  • Engine torque
  • Engine percent load
  • Transmission gear
  • VIN (not shown on the display)
  • Software number (not shown on the display)

    • Raymarine ECI-100 Universal Engine and Control Interface Key Features

    • A simple, single point of connection for engine data and drive-by-wire autopilot control.
    • Eliminates the need for multiple engine and autopilot gateways.
    • Brings Raymarine’s Evolution 9-axis sensor and adaptive autopilot control to drive-by-wire propulsion without the need for a proprietary autopilot gateway.
    • View engine data displays and enjoy full autopilot control alongside Raymarine’s industry-leading radar, sonar and navigation technologies using a single touch screen display.
    • Access easy to customize displays to show engine performance data, fuel consumption, alarms, and much more.
    • Simple to install ECI-100 makes engine and navigation integration a reality for virtually any size vessel.
    • Size: 4.29"W x .84"H x 1.18“D
