Autopilot Core Pack – Just add Pump and Controller!
The Simrad NAC-2 Autopilot Core Pack consists of the parts you need to start your autopilot system. Designed for inboard and inboard/outboard boats up to 35’ with hydraulic cylinders less than 15.2 ci, mechanical steering or solenoid valve steering (8 Amps continuous, 12 Amps peak). Simply add a display (AP44 or AP48) or a compatible Simrad chartplotter and a drive/pump if required and your boat is ready to drive you to the fishing grounds.
The NAC-2 Autopilot Computer is the brain behind your autopilot system. It contains the control algorithms developed to steer a vessel across a broad range of weather and sea conditions.
The Precision-9 Compass is a NMEA 2000
heading sensor that outputs heading at 20Hz (20 times per second), rate of turn at 20Hz, roll, and pitch at 10Hz. This all equates to you getting the most accurate heading data possible fed to the autopilot computer for faster and smarter control.
The RF-25 rudder feedbackprovides engine or rudder angle to the autopilot computer. It is just more info for the NAC2 to provide smart steering. This data is also visible on the display which helps the captain know which direction the boat is steered when not in motion.
These combined components matched with a display and drive (if required) provide for a much more relaxing day on the water or a better fishing experience by taking human error out of the equation.

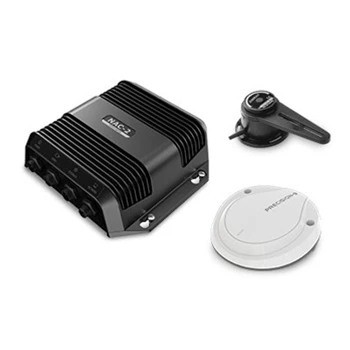

Simrad NAC-2 Autopilot Core Pack Details
Each Simrad NAC-2 Autopilot Core Pack comes with:
Simrad NAC-2 Autopilot Computer
RF25N Rudder Feedback
Precision 9 Compass
NMEA2000 Starter Kit
Fixing Screws
Warranty Card
Literature Pack
Two-Year Warranty
Core components for a Simrad Continuum autopilot system
Includes RF25N Rudder Feedback
Ideal for Boats for up to 35’ in Length
Easy Set Up
Control via AP44, IS42 and OP12 or Networked MFD
Simrad NAC-2 Autopilot Core Pack Special Features
Product Accessories for Simrad NAC-2 Autopilot Core Pack
Our Price:$179.95
SKU: SIXOC17SUK42
Si-Tex Hydraulic Kit for Autopilots
Si-Tex Hydraulic Autopilot Hose Kit with Fittings, Part Number OC17SUK42.
Our Price:$659.00
SKU: NV13289001
Simrad AP44 Autopilot Controller
Simrad’s AP44 Autopilot Controller is perfect for the mariner interested in conveniently and easily controlling the functions of their autopilot. Rotary dial and button control, The AP44 has a 4.1-inch glass, color display. Simple setup and automatic tuning.
Autopilot Core Pack Required. Not Included and Sold Separately.
Our Price:$1,049.00
SKU: NV13894001
Simrad AP48 Autopilot Controller
Simrad’s AP48 Autopilot Controller allows for complete control of your Simrad Autopilot. No Drift steering, depth contour tracking and automated turn patterns are all controlled from the 4.1” low profile, glass display.
Autopilot Core Pack Required. Not Included and Sold Separately.
Our Price:$949.00
SKU: NV15444002
Simrad Pump-2 12v Hydraulic Autopilot Pump
The Simrad Pump-2 Reversible hydraulic gear pump is designed for boats up to 35ft. in length with a cylinder displacement of 4.9-15.2 cubic inches.
Our Price:$349.00
SKU: NVX10756001
Simrad RF25N Rudder Reference
The Simrad RF25N rudder feedback is a medium duty rudder feedback that translates the angular travel of the rudder to a connected NMEA 2000 device. The RF25N connects via NMEA 2000 and features an attached 5.5m cable.
