High Current Core Pack – Just add Pump and Controller!
The NAC-3 Autopilot Core Pack from Navico offers the consumer the Core Components of an autopilot; the autopilot computer, Precision 9 solid state compass, and the RF25 rudder feedback.
The Core Pack NAC-3 was designed for boats over 35 feet in length so it is not an option for smaller craft. The Nac-3 is compatible with high-current outputs of up to 30 amps continuous and 50 amps peak, plus a clutch output; this is suitable to operate high-current drive pumps including the Simrad RPU160 and RPU300,
mechanical drives such as the Simrad DD15, hydraulic linear drives such as the HLD2000 series, and solenoid valves. You can choose a dedicated autopilot controller (AP44 or AP48) or compatible Simrad MFD to control the NAC-3. The NAC-3 comes with plug and play connectors so your installation time is cut to a minimum. Connecting your NAC-3 Corepack equipped autopilot to your navigation system or control head can be done with either NMEA 2000 or NMEA 0183.
If you are looking at upgrading your autopilot system and have an existing compatible mechanical or hydraulic drive, then the NAC-3 is an option for you. Remember this upgrade is for vessels of at least 10 meters in length whether, hydraulic or mechanical drives.
Simrad NAC-3 Autopilot Core Pack Details

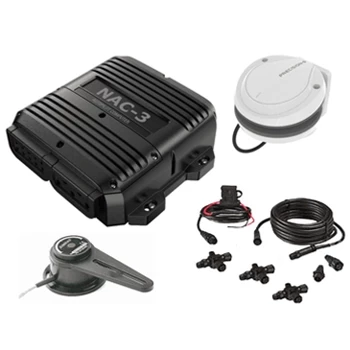

Each Simrad NAC-3 Autopilot Core Pack comes with:
Simrad NAC-3 Autopilot Computer
Precision 9 Compass
RF25N Rudder Feedback
NMEA2000 Starter Kit
Fixing Screws
Warranty Card
Literature Pack
Two-Year Warranty
Core components for a Simrad Continuum autopilot system
Includes RF25N Rudder Feedback
Ideal for Boats 35’ in Length or Larger
Easy Set Up
Control via AP44, IS42 and OP12 or Networked MFD
Simrad NAC-3 Autopilot Core Pack Special Features
Product Accessories for Simrad NAC-3 Autopilot Core Pack
Our Price:$239.95
SKU: SIXOC17SUK42
Si-Tex Hydraulic Kit for Autopilots
Si-Tex Hydraulic Autopilot Hose Kit with Fittings, Part Number OC17SUK42.
Our Price:$1,129.00
SKU: NV15445002
Simrad Pump-3 12v Hydraulic Autopilot Pump
The Simrad Pump-3 Reversible hydraulic gear pump is designed for boats up to 50ft. in length with a cylinder displacement of 9.8-33.5 cubic inches.
Our Price:$349.00
SKU: NVX10756001
Simrad RF25N Rudder Reference
The Simrad RF25N rudder feedback is a medium duty rudder feedback that translates the angular travel of the rudder to a connected NMEA 2000 device. The RF25N connects via NMEA 2000 and features an attached 5.5m cable.
Our Price:$1,049.00
SKU: NV13894001
Simrad AP48 Autopilot Controller
Simrad’s AP48 Autopilot Controller allows for complete control of your Simrad Autopilot. No Drift steering, depth contour tracking and automated turn patterns are all controlled from the 4.1” low profile, glass display.
Autopilot Core Pack Required. Not Included and Sold Separately.
Our Price:$659.00
SKU: NV13289001
Simrad AP44 Autopilot Controller
Simrad’s AP44 Autopilot Controller is perfect for the mariner interested in conveniently and easily controlling the functions of their autopilot. Rotary dial and button control, The AP44 has a 4.1-inch glass, color display. Simple setup and automatic tuning.
Autopilot Core Pack Required. Not Included and Sold Separately.
Our Price:$2,199.00
SKU: NVRAMT112V
Navico Hydraulic RAM T1 12V
The Navico Hydraulic RAM T1 12V combines a cylinder, pump, motor, clutch and reservoir in a pre-filled, sealed unit. The T1 12V provides maximum power with minimum consumption. This is a fully integrated hydraulic system with no external hoses or reservoirs.
Our Price:$2,499.00
SKU: NVRAMT212V
Navico Hydraulic RAM T2 12V
The Navico Hydraulic RAM T2 12V combines a cylinder, pump, motor, clutch and reservoir in a pre-filled, sealed unit. The T2 12V provides maximum power with minimum consumption. This is a fully integrated hydraulic system with no external hoses or reservoirs.
Our Price:$3,399.00
SKU: NV13788001
Navico Hydraulic RAM T3 12V
The Navico Hydraulic RAM T3 12V combines a hydraulic cylinder with clutch, reversing pump and reservoir in a compact installation. The T3 drive has a separate hydraulic pump to allow for greater mounting flexibility on this larger cylinder.
