High-Definition Target Imaging As Deep As 5,000’

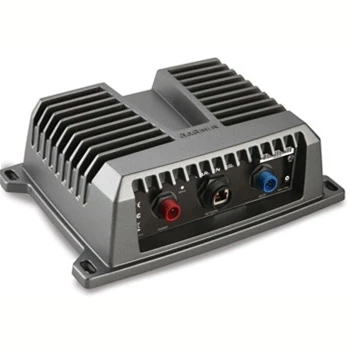

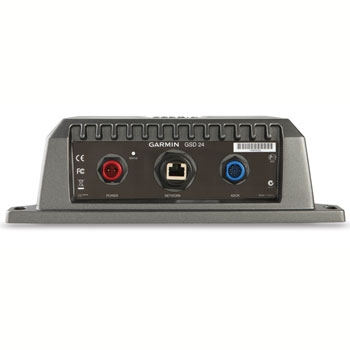

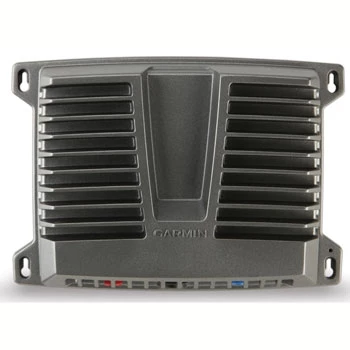

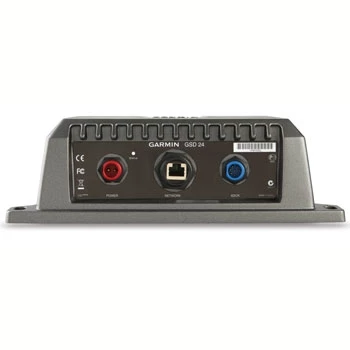

The GSD 24 is a must have for any fisherman. Easy connectivity makes installation of the GSD 24 a snap through the Garmin Marine Network. Once connected, your sonar data will be shared with a compatible chartplotter (GPSMAP 722/722xs, 742/742xs, 922/922xs, 942/942xs, 1022/1022xsv, 1042/1042xsv, 1222/1222xsv, 1242/1242xsv, and GPSMAP 4000/ 5000/ 6000/ 7000/ 7400/7400xsv, 7600/7600xsv, 8000/8200/8400 and 8500) series plotters). Built into every GSD 24 is a high-speed connection that ensures that you will receive ultra-fast screen updates with minimal delays.
This improved digital sonar module has been designed for superior target definition and deep water performance. Whether you are using the GSD 24 for sport fishing or if you are keeping an eye on hazardous terrain & reef structures beneath your boat, you will be sure to have an enhanced, clearer images & deeper bottom detection. The GSD 24 is built with up to 2,000 watts of power and is dual-frequency (50/200 kHz) capable and offers transmit power of (600W, 1kW, & 2kW) for pin-point accuracy for depths up to 5,000 ft. For the ultimate fish finding experience, choose the GSD 24 as a great add on to a compatible chartplotter.
Garmin GSD 24 Box Contents
Each Garmin GSD 24 comes with
- GSD 24
- Power Cable
- Marine Network Cable (6ft.)
- Mounting Hardware
- 8-Pin Female To Wire Block Adapter
- Documentation
- Two year Warranty
- Unit Size: 10.85”H x 8.03”W x 3.22”D
- Weight: 4.22 lbs
Garmin GSD 24 Key Features
- Dual-Frequency (50/200 kHz) Capable.
- Selectable Transmit Power (600w, 1kW, & 2kW).
- Offers Pin-Point Accuracy At Depths Up To 5,000 ft.
- High-Speed Connections to Ensure Ultra-Fast Screen Updates With Minimal Delays.
- Compatible with 4000, 5000, 6000, and 7000 Series Garmin Plotters.
Product Accessories for Garmin GSD 24 Marine Network Sounder
Our Price:$239.95
SKU: GAX1018221
Garmin B117 8 Pin Low Profile Bronze Thru-hull Transducer with Temp
The Garmin 8 Pin B117 600W Bronze Low Profile Thru-Hull Transducer works on boats with up to 7 degree deadrise for GSD 24. Includes temp and does not need Fairing Block. Garmin part# 010-10182-21.
(Depth/Temp)
Our Price:$279.95
SKU: GAX1098221
Garmin B60 12 8 Pin Bronze Low Profile Thru-hull Transducer with Temp
Garmin 010-10982-21, 8 Pin B60 12 Bronze Low Profile Thru-Hull Transducer with 12 degree tilted element and temp is designed to work on boats with deadrise between 8 and 16 degrees. Does not need Fairing Block.
(Depth/Temp)
Our Price:$179.95
SKU: GAX1032720
Garmin P79 8 Pin Plastic In-Hull Transducer
Garmin 010-10327-20, P79 8 Pin Plastic Shoot Thru-Hull Transducer was designed for people that do not want to drill holes in the bottom of their boat. The transducer mounts inside the boat and will work on boats with deadrise up to 22 degrees.
Our Price:$419.95
SKU: GAX1018322
Garmin B744V 8 Pin Bronze Thru-Hull Transducer with Depth/Speed/Temp
The Garmin B744 V 8 Pin Bronze Thruhull Transducer for GSD 24, Garmin Chartplotter/Sounder or Garmin Fishfinder with fairing block operates at 50/200KHZ and provides accurate Depth, Speed and Temperature readings.
(Depth/Speed/Temp)
Our Price:$169.95
SKU: GAX1019221
Garmin P66 8 Pin Dual Frequency Transom Mount Transducer with Speed and Temp
The Garmin P66 8 Pin Transom Mount Transducer is a 600w transducer and operates at 50 and 200Khz to provide accurate depth readings. Also has built in speed and temperature sensors.
(Depth//Temp/Speed)
Our Price:$279.95
SKU: GAX1098220
Garmin B60 20 8 pin Low Profile Bronze Thru-hull Transducer with Temp
Garmin 010-10982-20, 8 Pin B60-20 Bronze Low Profile Thru-Hull Transducer with 20 degree tilted element and temp. Designed for boats with deadrise between 16-24 degrees. Does not need Fairing Block.
(Depth/Temp)
Our Price:$899.95
SKU: GAX1101020
Garmin B164 20 8 Pin Bronze 1kw Low Profile Thru-Hull Transducer with Temp
The Garmin 8 Pin B164 1kw Bronze Low Profile Thru-Hull Transducer with 20 degree tilted element is perfect for trailered boats with deadrise between 16 and 24 degrees. Includes temperature and does not need Fairing Block.
(Depth/Temp)
Our Price:$819.95
SKU: GAX1070320
Garmin B258 8 Pin Bronze 1KW Thru-Hull Transducer with Fairing Block
Garmin B258 8 Pin Bronze 1KW Thru-Hull Transducer with Depth and Temp. Includes high speed fairing block. The most popular choice for commercial fishermen.
(Depth/Temp)
Our Price:$1,359.00
SKU: GAX1064020
Garmin B260 8 Pin 1kW Bronze Thru-Hull Transducer with Fairing Block
The Garmin 8 pin B260 1kW Bronze ThruHull Transducer with high speed fairing block provides the best fishfinding performance thanks to broadband technology. 50/200Khz Dual Frequency.
(Depth/Temp)
