Garmin Panoptix LiveScope Thru-Hull Transducer System

Garmin Panoptix LiveScope Thru-Hull Transducer System

Panoptix LiveScope System with Thru-Hull transducer allows for real-time views of structure and fish below your boat even when motionless. Comes with ThruHull with fairing block.
  • SKUGA02233
  • MAN#010-02233-00
  • ID#: 5918
(Rating 88)
Our Price:
$1999.99
Availability:
Backorder,
Expected 8/5/2021
Shipping:
FREE One Day Shipping!
Condition:
Brand New
free one-day shipping

LiveScope for Real-Time Scanning Sonar!

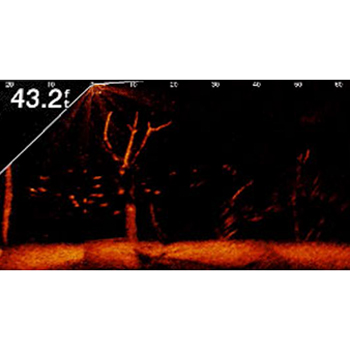

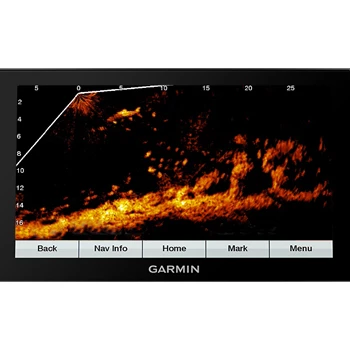

See Down and All around! Panoptix LiveScope with Thru-Hull transducer from Garmin is the best in detail with live scanning sonar images of structure, bait and fish swimming in real time up to 200' down and away! Built with AHRS (Attitude Heading Reference System), Livescope ensures your sonar view stays stable even in rough seas!

Call for Help with Marine Electronics

With LiveScope Foreward, you can easily see the info that is vital to you. LiveScope ensures you are getting the clearest images of fish and structure below and around your boat. With real time you can see the fish swimming and even see your lure as you retrieve it. The best part is you don’t even need to be moving. All of this can be done while the boat is stationary.

LiveScope Foreward will help with scouting and locating fish that are swimming ahead of your cast up to 200'. With exceptional views and sonar capabilities you can not only see what going on in real time, you may with just a bit of practice even be able to differentiate between fish species!

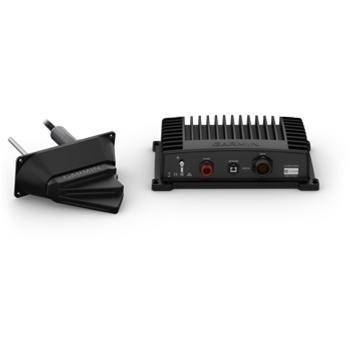

Simple Plug and Play setup in the Garmin Marine network, the Panoptix LiveScope comes with the GLS10 sonar box and the Panoptix LVS32 transducer. Fully compatible with Garmin echomap Plus 7 and 9" units as well as all Garmin GPSMAP 1022/1042/1222/1242/722/742/922/942/7400 and series units and combo units (XSV models) as well as GPSMAP 8400/8600 series Chartplotters.

Garmin Panoptix LiveScope Box Contents
Each Garmin Panoptix LiveScope Comes with:
  • GLS 10 Sonar Black Box
  • Panoptix LVS32 Thru-Hull Transducer with 20' of Cable
  • Thru-Hull Mount
  • Power Cable
  • 6' Network Cable 2.0
  • 1' Adapter Cable
  • Documentation
  • 2 Year Manufacturers Warranty
Key Features
  • 135° Beam Width for a much larger coverage area
  • Maximum range of 200’ in ideal conditions
  • LiveScope Forward
  • GLS 10 Sonar Black Box Size: 9.6"W x 5.9"H x 2.6"D
  • LVS32 Transducer with Fairing Block Size: 9.6"W x 3.4"H x 8.1"D
Garmin Panoptix LiveScope Manual- Click Here
