Black Box VHF Radio with Support for Up to 3 Remote CommandMic’s
In the market for a VHF with AIS Receiver yet space is limited on your vessel? Icom's M510BB is the solution! A compact black box with the ability to connect up to 3 CommandMic's (A single CommandMic is included with the Icom M510BB). The M510BB offers 25W of output power, internal GPS GNSS receiver with external GPS connection and the ability to interface via NMEA 2000 / 0183.
Safety First! a Internal GPS GNSS receiver provides position, while the integrated AIS receiver monitors the position of nearby AIS- equipped vessels providing you better situational awareness while on the open waters. View AIS information on the CommandMic display or on your compatible chartplotter via NMEA 0183 or NMEA 2000. Class D DSC is easily located on the back of every CommandMic and once initiated will transmit an alert to nearby vessels of your MMSI* and GPS Position. (**MMSI number must be obtained and programmed for each vessel/radio.) In addition, to the DSC button on each CommandMic, the M510BB has a dedicated DSC remote Control (EN 300 338-8 compatible) terminal for connection to an external device allowing centralized emergency communication control.
A built in 15W amplifier enhances the audio output of a external hailer speaker (sold separately) and the one way RX Hailer enables you to broadcast radio traffic thru the hailer speaker while on the deck or tower or sound foghorns pattern from the hailer speaker. When paired with multiple CommandMics, intercom functions allow for one to all or one to one communications.
The unit is fully waterproof and features the unique AquaQuake draining system, which works by clearing water out of the speaker grill and also includes active noise cancelling by digitally removing background noise from both transmitting and receiving audio providing clear communication on what is normally a noisy environment.
Up to 3 HM195G CommandMics can be connected to the BlackBox RF unit. Simply mount the RF unit out of sight, up to 60'* away from the CommandMics. (**Two OPC-1541 cables are required for the 60 ft installation)

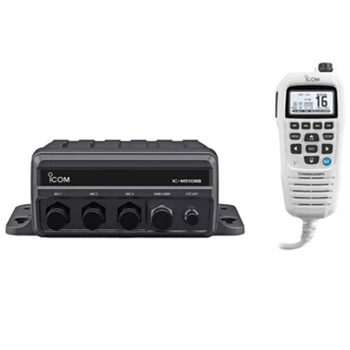

Icom M510BB Black Box Marine VHF with AIS and HM195GW White Box Contents
- Icom M510BB 21
- CommandMic, HM-195GW
- Connection Cable, OPC-1540, 6.1m/20ft
- Connector Cap
- DC Power Cable (2m)
- Microphone Hanger
- Mounting Base
- 3-Year Warranty
Icom M510BB Black Box Marine VHF with AIS and HM195GW White Key Features
- Integrated AIS Receiver
- Voice Recording and Playback
- DSC Remote Control Interface
- Supports Up To 3 Remote CommandMic’s
- One-Way RX Hailer and Foghorn
- Size of Black Box: 8.5"W x 3.1"H x 4.4“D
Product Accessories for Icom M510BB Black Box Marine VHF with AIS and HM195GW White
The Icom MA510TR Class B AIS Transponder sends class B AIS data and receives both Class A and Class B signals providing increased range of detection! The included GPS antenna allows users to operate a GPS navigation function guiding users to waypoints or AIS targets with ease. For a feature packed AIS transponder, the MA510TR is a great choice!
Icom's SP37 is a 40W Hailer Horn / Speaker for fixed mount VHF Radios.
The Icom HM195G Command mic IV offers full control of your Icom M400BB, M424G, M506, M510, M605, M410BB and M510BB VHF Radio from a remote location like a bridge or salon. The HM 195 can also be used as an intercom with a compatible Icom VHF Radio.
