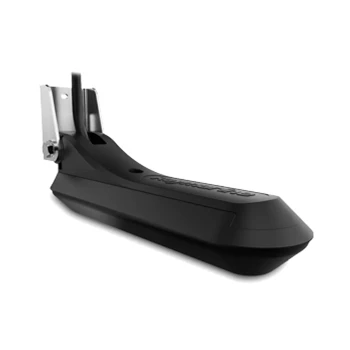

The RMV100 transom mounted transducer is the all-in-one sonar solution for your Raymarine RealVision MAX compatible sonar modules and RealVision MAX equipped Axiom Chartplotters. Anglers will enjoy life-like images of structure and easily locate fish with a 4-channel, wide spectrum CHIRP transducer with DownVision, SideVision, high-frequency CHIRP targeting, and 3D sonar.
Built into every RVM100 transducer is an altitude and heading reference system (AHRS) which stabilizes your 3D sonar image return on your Axiom MFD and will automatically compensate for your vessels movement, ensuring the sonar image you receive is a clear and accurate one every time. This technology filters out distortions caused by waves, swells, and vessel maneuvering. A built in fast-response temperature sensor will also provide an accurate water temperature reading displayed on your Axiom MFD, taking the guess work out of your surrounding waters.
Designed for easy mounting on the transom of your outboard-powered motor boat, the RVM100 transom mounted transducer comes with a marine-grade stainless steel mounting bracket integrated with a kick-up motion to prevent damage if your boat strikes debris, rocks, or stumps so you will have an added peace of mind, every time your boat enters the water. For our bass fisherman or anglers with flats boats or skiffs, the RVM-100 can be outfitted with an optional stainless steel Jack-Plate mounting bracket (A80480) and a spacer kit (A80482) (both sold separately). If you have a stepped hull, no need to worry, Raymarine kept you in mind and created a step-mounting bracket (A80479) (sold separately) so mounting is a breeze getting you on the water quickly.
- Raymarine RVM100 Specs.
- CHIRP Sonar Max Depth 1200ft
- DownVision Max Depth 600ft
- SideVision Max 300ft
- RealVision MAX 3D 300ft
Product Accessories for Raymarine RVM-100 All-In-One Transom Mount Transducer
Pair your Axiom MFD with the RVM1600 Sonar Module for a sonar experience like no other! Providing the next generation of DownVision, SideVision, 3D and conventional CHIRP the RealVision Max includes upgraded elements and enhanced power output for an even greater range, more recognizable structure and easily identifiable fish!
