Class B+ AIS Transceiver with MOB Beacons!

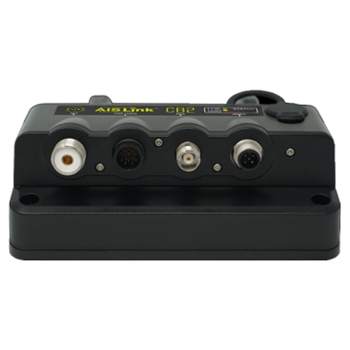

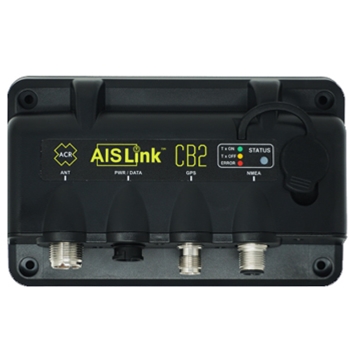

If you are looking for the complete man overboard system, ACR has just ended the search with the introduction of it’s AIS Link CB2 AIS Transponder MOB Bundle. This transponder boasts a fully compliant, water proof class B+ transceiver deigned to help avoid collisions. With a faster reporting rate and higher output power in relation to all Class B products that use older CSTDMA (Carrier Sense Time Division Multiple Access) technologies on the market.
Because the AISLinkCB2 Ais Transponder uses advanced SOTDMA (Self Organized Time Division Multiple Access). This improves rescue times if you should experience a Mob situation because the AISLink CB2 AIS transponder transmits every 5 seconds verses older Class B AIS of once every 30 seconds. The CB2 also transmits 5 watts of power while the older Class B AIS only transmit at 2 watts, broadcasting to larger area for improved visibility. Using 99 acquisition channels and 33 tracking channels, the internal multi-GPS receiver continuously transmits your vessel information including speed, position, course, and heading.
This AIS kit with MOB includes two (2) Ocean Signal MOB1 rescuable AIS Beacons, your AISLinkCB2 is the complete Man Overboard system. The MOB1 communicates with your AISLinkCB2 as well as other vessels in the vicinity (up to 5-mile range). During an emergency Rescue Me MOB1 provides 2 methods of rapidly sharing your position accurate to a few meters. Plus, providing a visual indication with its built-in strobe light. The AISLink CB2 also continuously transmits static information including vessel name, call sign, vessel type, vessel dimension and MMSI#. Static information can be programmed into the AISLinkCB2 using ACR’s free mobile app, upon completing the AISLink CB2 marine AIS System receiver and interpret messages from other AIS equipped vessels within range and then seamlessly communicate the information to other navigation devices on the vessel such as chart plotters, laptops, or mobiles using CB2’s NMEA 0183, NMEA 2000, USB or Wi-Fi outputs.
A primary benefit that users can rely on is the transmission priority provided by the AISLink CB2 Marine AIS System due to the use of the SOTDMA access scheme versus CSTDMA. Additional benefits include a multi-color LED indicator light communicating the ongoing operational status of the unit. Given that the CB2 also comes complete with internal GPS antenna (external also included), users have the ability to be transmitting AIS messages and enjoying the many benefits of the AISLink CB2 within minutes of install. Providing significant advantage in navigational safety, giving you the peace of mind that your vessel will be seen day or night on even the busiest waterways, regardless of what the weather may be.
* Before we can program your AIS we need a few pieces of information and all AIS units require programming before shipping. Please fill out the form below and fax (910-575-9543) or email (email@example.com) it back to us.
Click here to download a copy of the AIS programming form.
You will also need an MMSI number to complete the above form, if you don't already have one, you can get that here.

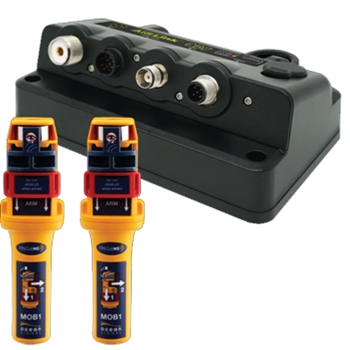

ACR AISLink CB2 Class B+ AIS Bundle Box Contents
- Two (2) Ocean Signal MOB1 rescueMe AIS Beacons
- Screw Kit
- Power/Data Cable
- USB to Micro USB Cable
- USB On-The-Go Cable
- GPS Antenna with Fixing Kit
- User Manual
- 2-Year Warranty (plus 1 on registration)
ACR AISLink CB2 Class B+ AIS Bundle Key Features
- 5W of Power=Double that of most older Class B units
- 12 Times the transmissions per minute
- Guaranteed Time Slot Reservations
- Ocean Signal rescueMe MOB1 is 30% smaller than other MOBs
- The included MOB1 Beacons have a 7-year battery life
- Size: 3.97"W x 6.38"H x 2.28“D
Product Accessories for ACR AISLink CB2 Class B+ AIS Bundle
The Maretron NMEA 2000 T-Connector is a required part when adding components to your NMEA 2k network. It is installed on the backbone cable and uses one end of the T-Piece for the drop cable.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 1 Meter.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 3 Meter
The Maretron NMEA 2000 Male Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
The Maretron NMEA 2000 Power-Tee is used to power your NMEA 2K network and measures 5 meters in length.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 0.5 meter.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 6 Meter.
The Maretron NMEA 2000 Field Attachable Male Connector is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 2 Meter.
The Actisense 8-port self-contained NMEA 2000 network makes installing a NMEA 2000 system easier than ever. The SBN-2 is a complete 8-port NMEA network that includes built-in termination resistors. Simply attach the integrated 3-meter power cable to the boats power supply and you are ready to add your devices!
The Actisense 4-port self-contained NMEA 2000 network makes installing a NMEA 2000 system easier than ever. The SBN-1 is a complete 4-port NMEA network that includes built-in termination resistors. Simply attach the integrated 3-meter power cable to the boats power supply and you are ready to add your devices!
A NMEA 2000 Female Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
The Maretron NMEA 2000 Micro Inline Terminator can be used at the end of a NMEA 2000 backbone to terminate the backbone and still allow for a single device to be used after the terminator.
The Maretron NMEA 2000 Field Attachable Female Connector is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
This Maretron cable can be used as your NMEA 2000 backbone cable. Length 10 Meter. This cable can not be used as a drop cable.
Maretron is known for their high quality and durable NMEA 2000 parts, this starter kit includes: 2 T connectors, Powertap T, 2 Male Terminators, 1m Drop/Backbone Cable, and a 6m Drop/Backbone Cable. Everything you will need to start your NMEA 2K Network.
