Furuno NavPilot Steer By Wire for Seastar Optimus 360
The Furuno NavPilot 300-OPT is a steer by wire system for Optimus 360. The 300 OPT is a complete Nav Pilot 300 System that includes the necessary components, cables and gateways to connect to an existing Optimus 360 Joystick system. This makes installation a breeze by not having to order parts in from multiple sources.
This NavPilot 300 system includes an intuitive, 4.1” color display that is easy to install and offers a variety of user-friendly menus and information in digital or analog modes. With the simple click of a button switch over from Day to Night mode for an enhanced user experience regardless of the situation.
Furuno’s gesture control feature is unique way to steer your boat. With the included remote, a Bluetooth signal is sent from the control device anywhere on the vessel, within 10 meters of the NavPilot system, allowing you to change directions quickly and efficiently. Once you push, hold the button and move the controller in the direction you want to move in, simply release the button and the boat is redirected. Now you can literally point at what you want to drive towards.
The need for a rudder feedback sensor is no longer needed with the release of the revolutionary Fantum Feedback system. (Compatible Heading Sensor Required) The Fantum Feedback is an autopilot system for planing and semi-displacement outboard vessels between 24ft and 50ft in length. With the elimination of a traditional rudder feedback sensor, this makes the installation much simpler and more streamlined.
The built-in Sabiki Mode allows the autopilot to take control while you are drifting astern and is only available on outboard powered vessels. While the Sabiki Mode is engaged, your direction can be held by simply adjusting the throttle and is made to be used particularly when bottom fishing or jigging. Other easily accessible modes are Highway, Auto, Advanced, and Fish Hunter mode.
Spend less time steering, and more time reeling in the big one’s!

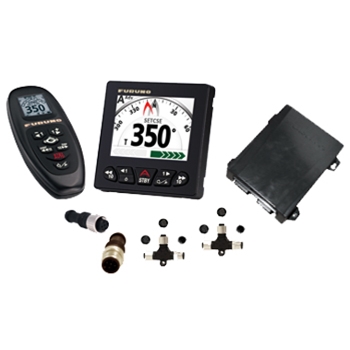

Furuno NavPilot 300 Optimus 360 Box Contents
- FAP-3012 Processor Unit
- FAP-3011 Control Unit with Gray Cover
- GC-001 Gesture Controller
- PG700 Heading Sensor
- NMEA2000 Components
- NavPilot 300 OPT Documentation
- 2-Year Warranty
Furuno NavPilot 300 Optimus 360 Key Features
- Bluetooth Gesture Control Technology Built-in
- Self-Learning Adaptive Software
- Controllable from TZtouch, TZtouch2, GP1871F and GP1971F
- Multiple Navigation and Fish Hunter Modes
- Compatible with Second Autopilot Station
- Display Size: 4.5" W x 4.5" H
Product Accessories for Furuno NavPilot 300 Autopilot for Optimus 360
The Maretron NMEA 2000 T-Connector is a required part when adding components to your NMEA 2k network. It is installed on the backbone cable and uses one end of the T-Piece for the drop cable.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 0.5 meter.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 1 Meter.
The Maretron NMEA 2000 Male Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 3 Meter
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 2 Meter.
The Maretron NMEA 2000 Field Attachable Male Connector is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
The Maretron NMEA 2000 Power-Tee is used to power your NMEA 2K network and measures 5 meters in length.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 6 Meter.
A NMEA 2000 Female Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
The Maretron NMEA 2000 Field Attachable Female Connector is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
This Maretron cable can be used as your NMEA 2000 backbone cable. Length 10 Meter. This cable can not be used as a drop cable.
The Maretron NMEA 2000 Micro Inline Terminator can be used at the end of a NMEA 2000 backbone to terminate the backbone and still allow for a single device to be used after the terminator.
Maretron is known for their high quality and durable NMEA 2000 parts, this starter kit includes: 2 T connectors, Powertap T, 2 Male Terminators, 1m Drop/Backbone Cable, and a 6m Drop/Backbone Cable. Everything you will need to start your NMEA 2K Network.
Similar Products and Value Bundles
Requires Heading Sensor and Pump, Sold Separately.
- MAN#NAVPILOT 300
- ID#: 5649
Requires Pump, Sold Separately
- MAN#NAVPILOT 300PG
- ID#: 5634
