The Garmin Reactor 40 Steer-by-Wire Corepack for Yamaha Helm Master provides advanced autopilot technology to boating enthusiasts. The Reactor 40 for Yamaha Helm Master is not only easy to use but also easy to install.
The included Garmin GHC 50 Marine Autopilot Instrument allows you to navigate with ease! The GHC 50 has an intuitive design and sunlight readable 5" touchscreen with edge-to-edge glass display, matching GPSMAP x3 and GPSMAP 8600 series displays. The high-resolution (800 x 480) WVGA display provides a top notch viewing experience in any marine conditions.
The advanced solid state 9 Axis AHRS, enables you to mount the new system virtually anywhere in any orientation. The advanced compass minimizes heading error and course deviation while maintaining the straight line ride that Garmin Reactor series pilots have always been known for. The Reactor Autopilot itself requires minimal commissioning and calibration after installation.
You have full control of Garmin’s Reactor 40 when paired with one of Garmin’s compatible MFD’s. When paired with Garmin’s G3 Charts, you can enjoy features like Auto-Guidance which automatically steers GPS courses. The GHP Reactor 40 Autopilot utilizes a feature called Intelligent Rudder Rate Technology (IRRT), which actually slows the rudder rate when the vessel is at high speeds and speeds up rudder rate when the vessel is at lower speeds to provide optimal performance and safety in all conditions.
The Reactor 40 for Yamaha Helm Master utilizes the power steering pump on your Yamaha engine which in turn creates a less expensive autopilot and a less expensive installation.

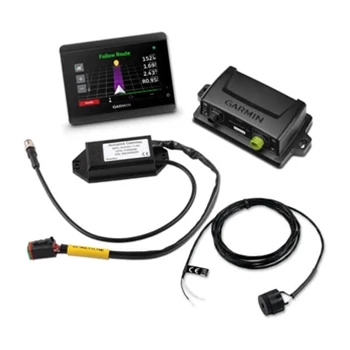

- Reactor 40 CCU (Course Computer Unit)
- GHC™ 50 helm control display
- Yamaha Gateway
- CCU cable
- NMEA 2000® drop cables (2 meters)
- NMEA 2000 power cable
- NMEA 2000 T-connectors
- Male and female terminators
- Two-Year Manufacturer Warranty
- Designed Specifically for Yamaha Helm Master Systems
- Full integration with Garmin Plotters
- Minimal Setup
- Reacts to Sea conditions
Product Accessories for Garmin Reactor 40 Steer by Wire Corepack for Yamaha Helm Master with GHC 50
The Garmin NMEA 2000 Starter Kit comes with all of the parts you need to start a NMEA2000 Marine Network.
This cable can be used as your NMEA 2000 backbone or drop cable. Length 2 Meter
The Garmin NMEA 2000 T-Connector is required for adding components to your network. It is installed on the backbone cable and uses one end of the T-Connector for the drop cable.
Control your Garmin Reactor Autopilot right from a remote. This rugged and water resistant remote provides the ultimate onboard control and convenience. Control steering and even use the remote for heading hold and course corrections! (compatible with Compact Reactor, Reactor 40 Steer by Wire and Reactor 40 Hydraulic)
This Garmin cable can be used as your NMEA 2000 backbone or drop cable. Length: 6 Meters.
This Garmin cable can be used as your NMEA 2000 backbone cable. Length 10 Meter. This cable can not be used as a drop cable.
The Garmin NMEA 2000 Power Cable is used to power your NMEA 2K network through a standard NMEA2000 T-Connector.
The Garmin NMEA 2000 Female Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
The Garmin NMEA 2000 network updater provides the convenience of updating Garmin products and NMEA 2000 accessories that do not have an SD card slot.
Garmin 6 meter NMEA 2000 Cable for Garmin Marine Heading Sensor
The Garmin NMEA 2000 Male Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
Paired with a GHP20, GHP12 or Reactor Garmin’s GFR 10 will provide rudder position and detect and avoid rudder stops while on the water. Magnetic sensor relays position information so that you know where the rudder is without having to guess.
