Garmin Compact Reactor 40 Hydraulic Marine Autopilot

Garmin Compact Reactor 40 Hydraulic Marine Autopilot

Garmin’s GHP Compact Reactor 40 is an affordable solution for Marine Autopilots! Perfect for single engine outboard boats under 25 feet the Compact Reactor 40 is available in 3 configurations. Simple installation and compatible with Garmin Chartplotters the compact reactor40 is NMEA2000 certified enabling heading data to easily be shared with other devices on your NMEA2000 network.
Select Autopilot Package Below
  • SKUGA0070506
  • MAN#010-00705-06
  • ID#: 4777
(Rating 91)
Our Price:
$1099.99
Availability:
Temporarily Out of Stock
Shipping:
FREE Ground Shipping!
Condition:
Brand New
free ups ground

Garmin GHP Reactor 40 Designed for Single Engine Outboards Less than 25 Feet


Garmin created the GHP Compact Reactor 40 Hydraulic Autopilot for the single engine outboard with a compatible Garmin chartplotter which would function as the control head for the autopilot negating the need to purchase one. With its 9 Axis AHRS the GHP Compact Reactor40 Hydraulic Autopilot allows for more flexible mounting and minimizes heading error and rudder movement making for a more comfortable ride even in rolling and pitching seas, the GHP Compact Reactor Hydraulic Autopilot actually reacts to sea conditions.

The Compact Reactor like with all autopilots the need for commissioning and calibration but in the GHP Compact Reactor 40 Hydraulic Call for Help with Marine ElectronicsAutopilot it has been reduced to the absolute minimum. When added to a NMEA 2000 Garmin network system the GHP Compact Reactor Hydraulic Autopilot can be controlled virtually everywhere on the boat with up to 3 Garmin autopilot control heads. When used with a Garmin’s G2 Vision charts you gain optional features like Auto Guidance, which automatically steers the GPS paths.

Available in 3 configurations, the GHP Compact Reactor40 can be purchased as a starter package which will include all you need to get going when paired with a compatible Garmin chartplotter. Also available with a GHC 20 which allows the autopilot to be set up without the need for a compatible Garmin Chartplotter and lastly as a complete package with the GHC20 and shadow drive which allows a simple turn of the wheel for control of the helm as well as the abililty to re-engage the autopilot by holding a consistent course.

Designed to be used with one of their compatible plotters as the controller or with a GHC 20 control head, the Compact Reactor allows the skipper to sit back and relax while it maintains your course.

Garmin Packages Include

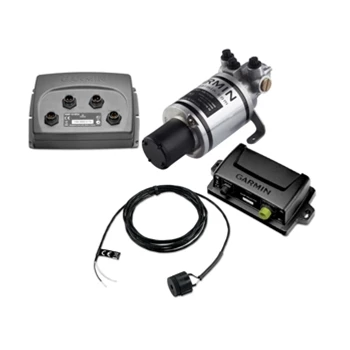

  • Garmin GHP Compact Reactor 40, GA0070506, MAN# 010-00705-06: Garmin GHP Reactor CCU, 1 Liter Pump, ECU, ECU Power Cable, Interconnect Cable, Buzzer, NMEA 2000 Drop Cables (2m), NMEA 2000 Power Cable, NMEA 2000 T-Connectors, NMEA 2000 Male and Female Terminators, Documentation and a Two-Year Warranty.

  • Garmin GHP Compact Reactor 40 with GHC20, GA0070507, MAN# 010-00705-07:Garmin GHP Reactor CCU, GHC20 Helm Control Display, 1 Liter Pump, ECU, ECU Power Cable, Interconnect Cable, Buzzer, NMEA 2000 Drop Cables (2m), NMEA 2000 Power Cable, NMEA 2000 T-Connectors, NMEA 2000 Male and Female Terminators, Documentation and a Two-Year Warranty

  • Garmin GHP Compact Reactor 40 with GHC20 and Shadow Drive, GA0070508, MAN# 010-00705-08:Garmin GHP Reactor CCU, GHC20 Helm Control Display, Shadow Drive, 1 Liter Pump, ECU, ECU Power Cable, Interconnect Cable, Buzzer, NMEA 2000 Drop Cables (2m), NMEA 2000 Power Cable, NMEA 2000 T-Connectors, NMEA 2000 Male and Female Terminators, Documentation and a Two-Year Warranty
Garmin Compact Reactor 40 Hydraulic Marine Autopilot Details
Each Garmin Compact Reactor 40 comes with:Garmin GHP Reactor40 CCU, 1 Liter Pump, ECU, ECU Power Cable, Interconnect Cable, Buzzer, NMEA 2000 Drop Cables (2m), NMEA 2000 Power Cable, NMEA 2000 T-Connectors, NMEA 2000 Male and Female Terminators, Documentation and a Two-Year Warranty.
GHP Reactor Size: 6.7"W x 2.0"H x 3.5"D
Garmin Compact Reactor 40 Special Features
  • Designed for Single Engine Outboards Under 25 Feet
  • 3 Different Configurations Available
  • NMEA 2000 Certified
  • Simple Installation and Easy Commissioning
  • Auto Guidance Feature when paired with Compatible Chartplotter and G2 Vision Chart

Product Accessories for Garmin Compact Reactor 40 Hydraulic Marine Autopilot

Garmin NMEA 2000 Starter Kit Our Price:$89.95
SKU: GAX11442

Garmin NMEA 2000 Starter Kit

The Garmin NMEA 2000 Starter Kit comes with all of the parts you need to start a NMEA2000 Marine Network.

Garmin NMEA 2000 Micro T-Connector Our Price:$19.95
SKU: GAX11078

Garmin NMEA 2000 Micro T-Connector

The Garmin NMEA 2000 T-Connector is required for adding components to your network. It is installed on the backbone cable and uses one end of the T-Connector for the drop cable.

Garmin NMEA 2000 Male Terminator Our Price:$10.95
SKU: GAX11080

Garmin NMEA 2000 Male Terminator

The Garmin NMEA 2000 Male Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.

Garmin NMEA 2000 Female Terminator Our Price:$10.95
SKU: GAX11081

Garmin NMEA 2000 Female Terminator

The Garmin NMEA 2000 Female Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.

Garmin NMEA 2000 Backbone Cable 10 Meter Our Price:$34.95
SKU: GAX110762

Garmin NMEA 2000 Backbone Cable 10 Meter

This Garmin cable can be used as your NMEA 2000 backbone cable. Length 10 Meter. This cable can not be used as a drop cable.

Garmin SeaStar Fittings Kit Our Price:$23.95
SKU: GAX1120203

Garmin SeaStar Fittings Kit

The Garmin SeaStar Fittings Kit is used for plumbing your Garmin Hydraulic Autopilot to most SeaStar Steering System.

Garmin NMEA 2000 Power Cable Our Price:$19.95
SKU: GAX11079

Garmin NMEA 2000 Power Cable

The Garmin NMEA 2000 Power Cable is used to power your NMEA 2K network through a standard NMEA2000 T-Connector.

Garmin Reactor Autopilot Remote Control Our Price:$249.99
SKU: GAX1283310

Garmin Reactor Autopilot Remote Control

Control your Garmin Reactor Autopilot right from a remote. This rugged and water resistant remote provides the ultimate onboard control and convenience. Control steering and even use the remote for heading hold and course corrections! (compatible with Compact Reactor, Reactor 40 Steer by Wire and Reactor 40 Hydraulic)

Garmin Verado Adapter Kit Our Price:$189.95
SKU: GAX1120202

Garmin Verado Adapter Kit

The Garmin Verado Adapter Kit is used for plumbing your Garmin Hydraulic Autopilot to your Mercury Verado Engine Steering System.
