10-Inch Chartplotter/Fishfinder with GN+ Charts

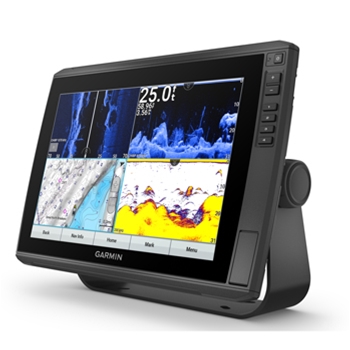

The Garmin ECHOMAP Ultra 106sv GN+ features a 10-inch keyed-assist IPS touch display with 10Hz internal GPS receiver and preloaded Garmin Navionics+ charts including coverage for US inland lakes and coastal waters. The included Garmin Navionics+ charts provide Auto Guidance+ technology* which provides the best path to a waypoint taking into consideration your vessel. Navigate with ease with the ECHOMAP Ultra 106sv!

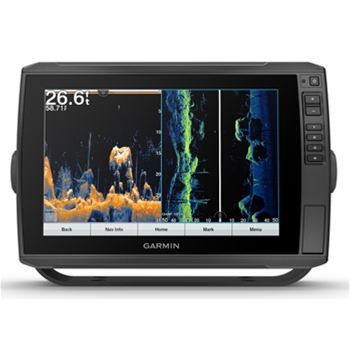

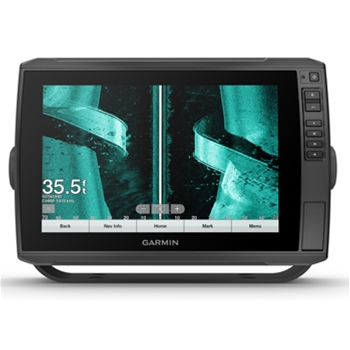

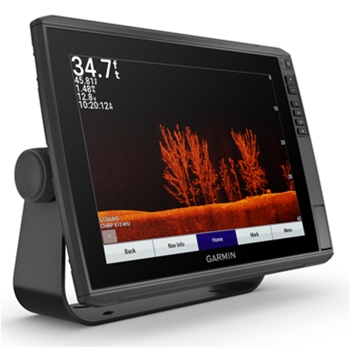

The ECHOMAP Ultra 106sv with Transducer includes the GT56UHD Transom Mount Transducer. The included transducer provides high wide CHIRP sonar by operating on a frequency range of 150-240kHz. In ideal water conditions, the GT56 can reach depths of 800' while the UHD (Ultra High Definition) ClearVu and SideVU sonar provides images of fish and structure below your boat in crisp clear detail - so clear that you can even see fish hanging off branches of submerged trees! Plus with GT56UHD you can now even distinguish between bigger and smaller fish and even see individual fish targets! This is an all in one transducer! UHD ClearVu images will reach 200' below the boat, while the SideVu sonar offers 2 frequency settings for an 20% greater range!
The 106sv is compatible with the full line of Garmin Panoptix products. Get real-time sonar images below your boat with the Panoptix LiveScope Plus Transducer System. See fish respond to your lure and adjust your fishing technique accordingly! Shop the Garmin Panoptix LiveScope Plus here.
Wanting multiple displays, but not needing all the bells and whistles of a fully networkable unit? The ECHOMAP Ultra has you covered, with 2 network ports the 106sv will allow you to connect and share sonar, waypoints and routes with other ECHOMAP Ultra 10" and 12" units as well as ECHOMAP Plus 7" and 9" units. Plus with Built-in WIFI you get access to the ActiveCaptain app - access maps and the QuickDraw Community, plan a trip, prefish a lake and even get texts and emails on your display (but that’s only if you want to, this can be turned off so you can enjoy a carefree day on the water without being bothered).
While the Garmin ECHOMAP Ultra 106sv is preloaded with Garmin Navionics+ charts, there is a premium chart option available, sold separately. The Garmin Navionics Vision+ charts provide additional detail for the coverage area of your choice including High Resolution Relief Shading, Aerial Imagery, Satellite Overlay and more! Garmin Navionics Vision+ charts are sold on SD/microSD card and require the use of the Garmin ActiveCaptain app to access premium features.

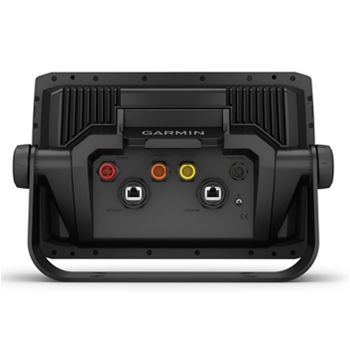

The Garmin ECHOMAP Ultra is equipped with 1 NMEA0183 input and output port, Wireless connectivity, and NMEA2000. Easily connect heading sensors, autopilot, digital switching, FUSION-Link and more! And when your day of fun on the water is over, the 106 quickly and easily disconnects from the quick-disconnect mount. Since all the cables are plugged into the mount there’s no need to mess with plugging and unplugging cables. Simply remove the head unit and store it away for safe keeping!
*Garmin Auto Guidance is for planning purposes only and does not replace safe navigation options.
*Please note, This display has a single 12 Pin Transducer Port. Garmin 12 Pin orange connectors do not support speed thru water via a speed wheel. This display will provide speed over ground via GPS. Speed thru water can be achieved by adding a NMEA Smart sensor, sold separately.
Garmin ECHOMAP Ultra 106sv GN+ with Transducer Box Contents
- ECHOMAP Ultra 106sv GN+
- GT56-UHD Transducer with 25' Cable
- Power/Data Cable

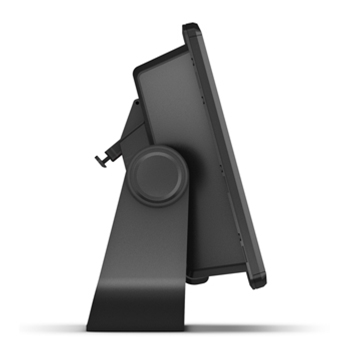

- Tilt Mount with Quick Release Cradle
- Flush Mount
- Protective Cover
- 2-Year Warranty
Garmin ECHOMAP Ultra 106sv GN+ with Transducer Key Features
- Preloaded GN+ Charts for US Coastal and Inland Waters
- Auto Guidance+ Technology
- Garmin Panoptix LiveScope and LiveScope PLUS Compatible, *Sold Separately
- Ultra High-Definition Transducer Included
- Built-In Quickdraw Contours
- Size: 11.6"W x 7.7"H x 3.9“D
Product Accessories for Garmin ECHOMAP Ultra 106sv GN+ with Transducer
Garmin’s GPS24XD NMEA2000 GPS antenna provides multi-band GNSS accuracy to 1M. The magnetic heading sensor provides accuracy to within 3 degrees with enhanced stabilization at slow speeds. Includes under-deck, pole and surface mount options.
The Garmin NMEA 2000 Starter Kit comes with all of the parts you need to start a NMEA2000 Marine Network.
The Garmin NMEA 2000 T-Connector is required for adding components to your network. It is installed on the backbone cable and uses one end of the T-Connector for the drop cable.
This cable can be used as your NMEA 2000 backbone or drop cable. Length 2 Meter
Garmin Protective Cover for ECHOMAP Ultra 102sv and 106sv.
Garmin’s Livescope Plus offers real time views of fish and structure below your boat! 35% improved target separation, better resolution, reduced noise and clearer images are just a few of the benefits of the Livescope Plus. Includes GLS 10 Box and LVS34 Transducer along with 3 mounting options including the perspective mode mount!
This Garmin cable can be used as your NMEA 2000 backbone or drop cable. Length: 6 Meters (19 feet).
Garmin NMEA 2000 Multiport T-Connector.
Garmin 6' Power/Data cable for all ECHOMAP Ultra units. Includes NMEA0183 Input/Output.
This Garmin cable can be used as your NMEA 2000 backbone cable. Length 10 Meter. This cable can not be used as a drop cable.
Allowing you to Surface Mount your Garmin ECHOMAP Ultra 10" GPS, this quick release bail mount includes the knobs and tilts for optimum viewing.
Garmin Spray Shield for DownVu/SideVu Transducers
