12-Inch GPS/Chartplotter with GT56UHD Transducer!

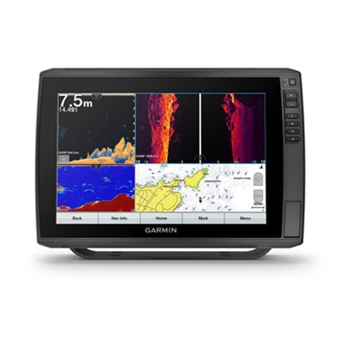

Garmin's ECHOMAP Ultra 122sv pairs a bright sunlight viewable 12" keyed assist touchscreen display with an Ultra High Definition (UHD) GT56-Transom Mount transducer - providing exceptional sonar images on a large screen.
Sonar capabilities abound in this unit and with the included 12-Pin GT56-UHD TM Transducer, the 122sv provides Ultra High Definition CHIRP sonar, ClearVu for near photolike detail below your boat and SideVu sonar for near photolike detail to the left and right of your vessel. The GT56 provides increased SideVu sonar performance over previous UHD transducers. Seven high-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure. The 122sv is also Panoptix LVS12 ready with the LVS port directly on the back of the unit and can also pair with Garmin's full line of Panoptix Transducers including the extremely popular Panoptix Livescope(LVS 32)! Plus, when paired with the included GT56 transducer the EM 122 will allow QuickDraw Contour mapping where your software instantly creates personalized fishing maps on screen with 1' contours as you fish.
At the heart of the 122sv is an internal 10hz GPS receiver that quickly and accurately locks into position allowing you to explore the lakes and coastal waters throughout the US without waiting forever for your unit to find your location! While the ECHOMAP Ultra 122sv does NOT include detailed maps, dual microSD card slots allow you to add detailed mapping if you choose. (*detailed maps sold separately).
Wanting multiple displays, but not needing all the bells and whistles of a fully networkable unit? The echoMAP Ultra has you covered, with 2 network ports the 102sv will allow you to connect and share sonar, waypoints and routes with other ECHOMAP Ultra 10" and 12" units as well as ECHOMAP Plus 7" and 9" units. Plus with Built-in Wi-Fi you get full access to the all in one ActiveCaptain app - a simple yet extensive connection between your mobile device and your plotter. Access maps and the QuickDraw Community, plan a trip, pre-fish a lake and even get texts and emails on your display (but that’s only if you want to, this can be turned off so you can enjoy a carefree day on the water without being bothered).

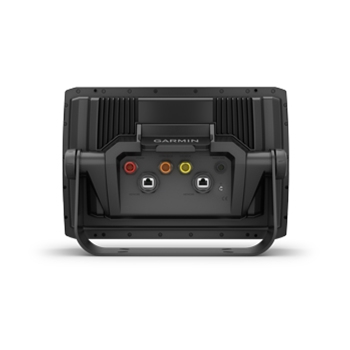

With 1 NMEA0183 input and output port, Wireless connectivity, and NMEA2000 you can connect and support heading sensors, autopilot, digital switching, weather, FUSION-Link and more! And when you day of fun on the water is over, the 122 quickly and easily disconnects from the quick-disconnect mount. Since all the cables are plugged into the mount there’s no need to mess with plugging and unplugging cables. Simply remove the head unit and store it away for safe keeping!
- ECHOMAP Ultra 122sv
- GT56UHD-TM Transducer(25' Cable)
- Power/Data Cable

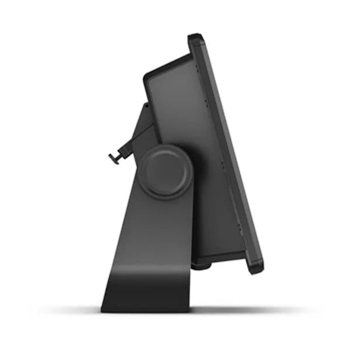

- Tilt Mount with Quick Release Cradle
- Flush Mount
- Protective Cover
- 2 Year Warranty
- Large, 12" Hybrid Touch Display
- Vivid Color Palettes
- Livescope Sonar Support *Sold Separately
- Force Trolling Motor Support *Sold Separately
- Built-In Wi-Fi for Active Captain Support
- Size: 13.4" x 9.0" x 3.9"
|# Of Waypoints||# Of Routes||Track log||Receiver Type||Display Size|
|5,000||100||50,000 points 50 saved tracks||10Hz GPS receiver||Color 12" Diag. 1280 x 800|
