Garmin LiveScope XR System

The Garmin LiveScope XR System with LVS62 transducer provides real time sonar imagery with an extended range for freshwater, coastal and open-water fishing! Explore deeper with Close View, Long View, Vivid Color Palettes and Image Stabilization.
Includes GLS10 and LVS62 Transducer
  • SKUGA02719
  • MAN#010-02719-00
  • ID#: 7209
(Rating 90)
Our Price:
$2,999.99
Availability:
In Stock
Shipping:
Free 2-Day Shipping!
Condition:
Brand New

LiveScope Imagery with an Extended Range, Ideal for Coastal Waters!

Garmin LiveScope sonar imagery is now even better, with the LiveScope XR System. See real-time sonar images including structure, bait and fish swimming around your boat with the Panoptix LiveScope XR Sonar System. The LiveScope XR System operates on lower-frequencies than other LiveScope models, offerring live scanning sonar up to 500' in freshwater and up to 350' in saltwater.

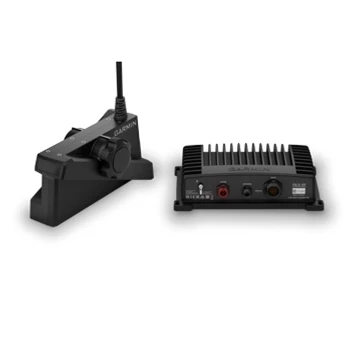

Consisting of the Garmin GLS 10 black box and LVS62 Transducer, the LiveScope XR system is compatible with a wide range of Garmin chartplotters. The Garmin GLS10 black box connects to your compatible Garmin display through a network connection, while the LVS62 transducer connects to the GLS 10 black box.

The Garmin LiveScope XR includes several screen features that allow for unique viewing of your LiveScope imagery. Choose from Long or Close View options. The Long View - Reverse Range Offset feature uses more of the screen to display LiveScope imagery or A Close View - Compress Range feature giving you a clear view close to your boat, while monitoring targets further away.

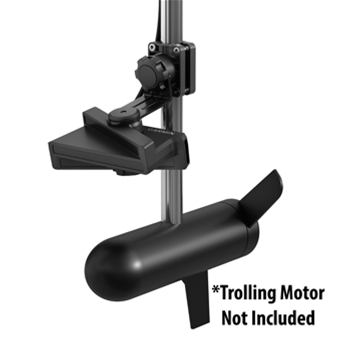

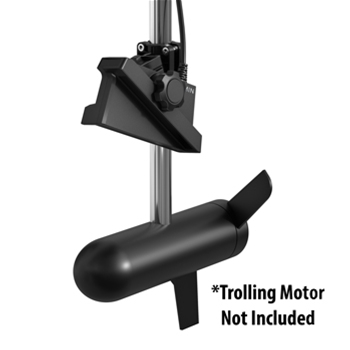

Select the mode that best suits your fishing style! The LiveScope XR System can provide Forward Mode, Down Mode and Perspective Mode with the included mounts. Select Forward Mode for a front and slight down image, Down mode for a picture of what is directly below your boat and Perspective mode for a top-down view. Perspective mode is provided with the use of the included Garmin Perspective Mode Mount for LVS62 Transducers. The LiveScope XR system also includes a trolling motor shaft and barrel mount.

The LVS64 transducer provides an extended range, over previous LiveScope models. The LVS62 also has a new mounting hole pattern for third party mounting systems. Rough conditions are no problem for the LVS62 transducer. Its built-in AHRS, Attitude Heading Reference System keeps your sonar image stable for easy viewing even in turbulent waters. Easily distinguish artifacts below your boat with the selection of one of 7 vivid color palettes. Color palettes include Aqua, Caribbean, Lava and more. These palettes allow users to see fish a structure more clearly by improving contrast.

Transducer Specifications

  • Frequencies Supported- 282-522kHz
  • Transmit Power- 500W
  • Power Usage- 21W Typical, 58W Max
  • Fuse- 7.5A
  • Minimum Depth- 3'
  • Beamwidth- 20 degrees x 135 degrees
  • Transducer Cable Length- 20ft
  • Max Depth- Freshwater: 500' Down and Forward
  • Max Depth- Saltwater 350' Down and Forward

  • Looking to upgrade your existing Garmin Panoptix LiveScope system to the Garmin Panoptix LiveScope XR? Upgrading is easy- you may keep your existing GLS10 black box and cabling and simply replace the transducer with the LVS62. Purchase just the LVS62 transducer here.

    The Garmin Panoptix LiveScope Plus is compatible with the following Garmin displays:

  • Garmin GPSMAP 8400/8600 Series
  • Garmin GPSMAP x2 Plus Series
  • Garmin GPSMAP x3 Series
  • Garmin ECHOMAP Ultra Series
  • Garmin ECHOMAP UHD 7" and 9" Displays

  • Garmin LiveScope Transducer Size Comparison

    Garmin LiveScope XR System Box Contents

    Each Garmin LiveScope XR System Comes with:
    • LiveScope GLS 10 sonar black box
    • LiveScope XR LVS62 transducer with 20’ of transducer cable
    • Perspective mount (Designed specifically for the LiveScope XR LVS62 transducer)
    • Trolling motor barrel mount
    • Shaft mount
    • Power cable
    • 2 meter Garmin Marine Network cable (small connector)
    • Network adapter cable
    • Documentation
    • 1-Year Warranty

    Garmin LiveScope XR System Key Features

    • Long View with Reverse Range Offset uses more of the screen to display fish!
    • Close View with Compress Range gives you a clear view close to the boat while monitoring targets further away,
    • Accurate Real-Time Images
    • Built-In Stabilization Systems keep sonar images steady
    • Vivid color palettes
    • Forward Mode, Down Mode and Perspective Mode options
    • GLS 10 Sonar Black Box Size: 9.7"W x 5.9"H x 2.6“D
    • LVS62 Transducer Size: 8.20”W x 3.98”H x 2.76”D
