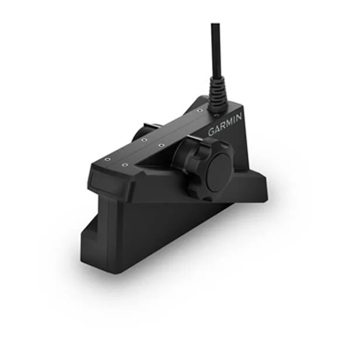

Garmin LVS62 Transducer for LiveScope XR Systems

LiveScope sonar with an extended range! Pair the LVS62 transducer with a GLS10 Black Box for crystal clear LiveScope images with a greater range, ideal for coastal or open-water fishing!
Requires GLS10 Black Box
  • SKUGA0271910
  • MAN#010-02719-10
  • ID#: 7210
(Rating 90)
Our Price:
$2,499.99
Availability:
In Stock
Shipping:
Free 2-Day Shipping!
Condition:
Brand New

LiveScope Imagery with an Extended Range When Paired with GLS Black Box!

The LVS62 Transducer provides real-time sonar images including structure, bait and fish swimming around your boat with an extended range over other LiveScope models. Ideal for coastal or offshore use, the LVS62 operates on lower frequencies for deeper water performance. The LVS62 Transducer is part of the LiveScope XR System and must be paired with a GLS10 Black Box, not included.

Have an existing Garmin Panoptix LiveScope System? If you prefer to use your existing GLS 10 black box, you may simply replace your existing transducer with the Garmin LVS62 Transducer. If you are looking for the full LiveScope XR System, click here.

The Garmin LiveScope XR includes several screen features that allow for unique viewing of your LiveScope imagery.  Choose from Long or Close View options.  The Long View -  Reverse Range Offset feature uses more of the screen to display LiveScope imagery or A Close View - Compress Range feature giving you a clear view close to your boat, while monitoring targets further away.

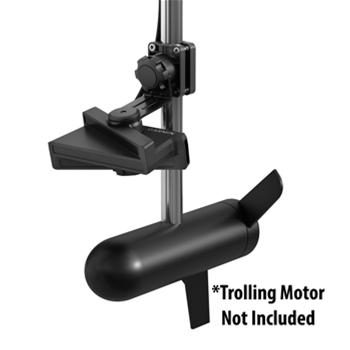

Select the mode that best suits your fishing style! The LiveScope XR System can provide Forward Mode, Down Mode and Perspective Mode with the included mounts. Select Forward Mode for a front and slight down image, Down mode for a picture of what is directly below your boat and Perspective mode for a top-down view. Perspective mode is provided with the use of the included Garmin Perspective Mode Mount for LVS62 Transducers. The LiveScope XR system also includes a trolling motor shaft and barrel mount.

The LVS64 transducer provides an extended range, over previous LiveScope models. The LVS62 also has a new mounting hole pattern for third party mounting systems. Rough conditions are no problem for the LVS62 transducer. Its built-in AHRS, Attitude Heading Reference System keeps your sonar image stable for easy viewing even in turbulent waters. Easily distinguish artifacts below your boat with the selection of one of 7 vivid color palettes. Color palettes include Aqua, Caribbean, Lava and more. These palettes allow users to see fish a structure more clearly by improving contrast.

Transducer Specifications
  • Frequencies Supported- 282-522kHz
  • Transmit Power- 500W
  • Power Usage- 21W Typical, 58W Max
  • Fuse- 7.5A
  • Minimum Depth- 3'
  • Beamwidth- 20 degrees x 135 degrees
  • Transducer Cable Length- 20ft
  • Max Depth- Freshwater: 500' Down and Forward
  • Max Depth- Saltwater 350' Down and Forward
  • Garmin does NOT currently offer a transom mount for the LVS62 transducer.

  • The Garmin Panoptix LiveScope Plus is compatible with the following Garmin displays:
  • Garmin GPSMAP 8400/8600 Series
  • Garmin GPSMAP x2 Plus Series
  • Garmin GPSMAP x3 Series
  • Garmin ECHOMAP Ultra Series
  • Garmin ECHOMAP UHD 7" and 9" Displays

  • Garmin LiveScope Transducer Size Comparison

    Garmin LVS62 Transducer for LiveScope XR Systems Box Contents

    Each Garmin LVS62 Transducer for LiveScope XR Systems Comes with:
    • LiveScope XR LVS62 transducer with 20’ of transducer cable
    • Perspective mount (Designed specifically for the LiveScope XR LVS62 transducer)

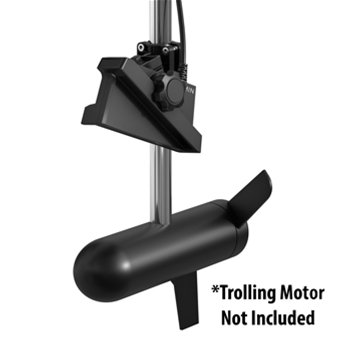

    • Trolling motor barrel mount
    • Shaft mount
    • Documentation
    • 1-Year Warranty
    • Garmin does NOT currently offer a transom mount for the LVS62 transducer

    Garmin LVS62 Transducer for LiveScope XR Systems Key Features

    • Long View with Reverse Range Offset uses more of the screen to display fish!
    • Close View with Compress Range gives you a clear view close to the boat while monitoring targets further away,
    • Accurate Real-Time Images
    • Built-In Stabilization Systems keep sonar images steady
    • Vivid color palettes
    • Pairs with an existing GLS10 Black Box
    • LVS62 Transducer Size: 8.20”W x 3.98”H x 2.76”D
