Class B AIS Transponder Receiving Both Class A and B AIS Signals!

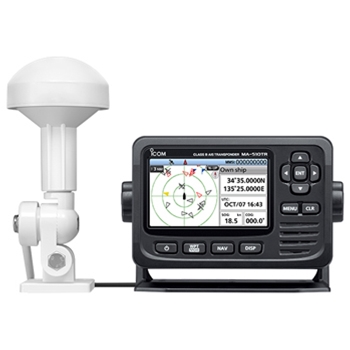

The MA-510TR is a class B AIS transponder that offers modern navigation safety with an output power of 2 watts. The MA-510TR automatically shares your vessel information with other AIS transponders and receivers (Class B data). The 510TR has a 4.3” color TFT LCD with wide viewing angles to show navigational details clearly and accurately. If you want to contact another vessel, you no longer need to locate and type in its 9-digit MMSI number - the MA-510TR does this automatically.
If you’re looking to share the AIS data on a larger screen, the MA-510TR is capable of sharing information with third party chartplotters and other Nav Gear via NMEA 2000 or NMEA 0183. When you want the best, get the best. Get Icom. Simply the best.
If you want to keep your fishing spots and location private, you can take advantage of the silent mode function. This allows you to temporarily stop sending out position location by switching off the AIS transmitter.
The MA-510TR is a Class B AIS transponder for Non-SOLAS vessels such as pleasure craft, work-boat and small vessels. Your vessels information will automatically be transmitted at fixed intervals or under base station control. The MA-510TR receives dual AIS channels (Ch. 87B and Ch. 88B) simultaneously and receives both Class A and Class B AIS information.
The Plotter display looks like a marine radar display. North-up, course-up and range zoom from 0.125 NM to 24 NM are supported. The Target list display shows all detected AIS equipped vessels and targets. The Danger list display shows a list of vessels that are within 6 NM CPA and 60 minutes TCPA from your vessel. The Danger list can be sorted by CPA or TCPA order. In addition to these display types, the Detail screen shows various information about the selected AIS target.
When connected to a compatible Icom VHF radio. It's easy to make an individual DSC call. Select a vessel using the MA-510TR's cursor keys and then push the "DSC" button on the MA-510TR. It is not required to input an MMSI number manually.
Up to 100 waypoints can be stored on the waypoint list. The "MOB" button allows you to set a waypoint on your current position instantly.
* Before we can program your AIS we need a few pieces of information and all AIS units require programming before shipping. Please fill out the form below and fax (910-575-9543) or email (firstname.lastname@example.org) it back to us.
Click here to download a copy of the AIS programming form.
You will also need an MMSI number to complete the above form, if you don't already have one, you can get that here.
- MA510TR Transceiver

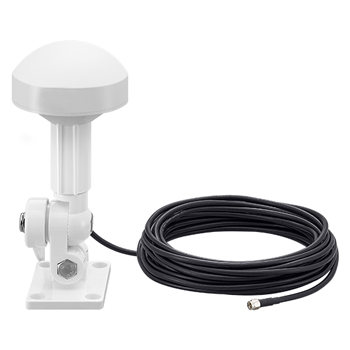

- GPS Antenna with 10M of Cable
- DC Power Cable
- Mounting Bracket Kit
- Accessory Connector
- 3 Year Warranty
- Large Screen with Wide Viewing Angle

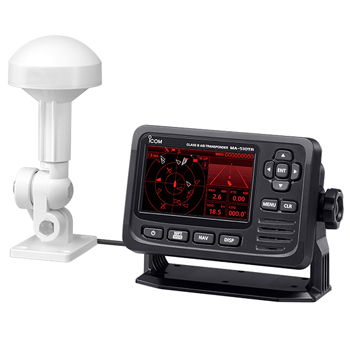

- Day and Night Mode for Comfortable Viewing
- Silent Mode to Turn Off AIS Transmitter
- Collision Alarm, Anchor Watch Alarm and Man Overboard
- NMEA 2000 and NMEA0183 Connectivity
- Size: Tranceiver 6.5"W x 4.3"H x 3.6“D, GPS Antenna , 3.8”W × 8.9”H
Product Accessories for Icom MA510TR AIS Transponder Kit
The Maretron NMEA 2000 T-Connector is a required part when adding components to your NMEA 2k network. It is installed on the backbone cable and uses one end of the T-Piece for the drop cable.
The Maretron NMEA 2000 Field Attachable Female Connector is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
A NMEA 2000 Female Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
The Maretron NMEA 2000 Field Attachable Male Connector is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
The Maretron NMEA 2000 Male Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
Need an antenna for your AIS system, the Shakespeare 5396-AIS Galaxy Antenna is powerful 4' option for any boat.
Icom MB75 Flush Mounting Bracket for M502/M504/M506/MA510TR/M602/M604/M605/M803.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 1 Meter.
The Shakespeare 5215-AIS Squatty Body is built with extra bandwidth for all popular AIS transceivers. The 3' stainless steel, lightweight design is perfect for masthead mounting.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 0.5 meter.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 3 Meter
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 6 Meter.
Maretron is known for their high quality and durable NMEA 2000 parts, this starter kit includes: 2 T connectors, Powertap T, 2 Male Terminators, 1m Drop/Backbone Cable, and a 6m Drop/Backbone Cable. Everything you will need to start your NMEA 2K Network.
The Maretron NMEA 2000 Micro Inline Terminator can be used at the end of a NMEA 2000 backbone to terminate the backbone and still allow for a single device to be used after the terminator.
The Maretron NMEA 2000 Power-Tee is used to power your NMEA 2K network and measures 5 meters in length.
This Maretron cable can be used as your NMEA 2000 backbone cable. Length 10 Meter. This cable can not be used as a drop cable.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 2 Meter.
The SiTex AIS Zero Loss Antenna Splitter Module allows for full use of VHF communications and AIS send/receive with a single VHF antenna. The MDA-3 is designed for use with Class B AIS Transceivers.
