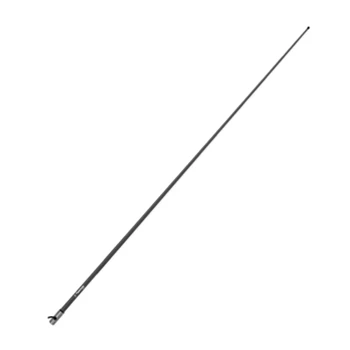

For the toughest of the tough jobs, Shakespeare introduces the extra edge of silver plated elements on world-renowned, world class, Galaxy Style marine VHF antennas. The Galaxy 5226-XT is a maximum range antenna built in a Shakespeare extra tough fiberglass radome. It's designed to withstand the wind forces and high speeds when used onhard tops, T-tops, and radar arches. The silver plating adds extra performance for extra reliable communications. The antenna's legendary Galaxy high-gloss finish assures that it's welcome aboard.
- Silver plated, brass and copper elements for extraordinary range and efficiency

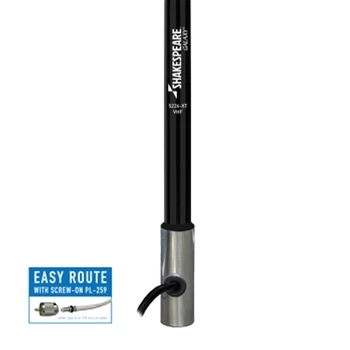

- Stainless steel ferrule with standard 1"-14 thread
- Includes 20' RG-8/X cable and a PL-259 connector
- Suggested Mount: Shakespeare Style 4187 Ratchet Mount (sold separately)
- One section
- Shakespeare Limited Warranty: 5-Years
Specifications:
- Max. Power Input: 150 watts
- SWR: nominally 1.5:1 at 156.8 MHz
- Bandwidth: 3 MHz within 2.0:1 VSWR
- Frequency: VHF Marine Band
- DC Grounding: YES (ohmeter test will read "shorted")
- Polarization: Vertical
- Impedance: 50 ohms
Product Accessories for Shakespeare 5226-XT 8' Galaxy VHF Black Antenna
Shakespeare PL259-CP-G Centerpin Connector
The Shakespeare PL259-CP-G Centerpin Connector allows quick and easy installation of a PL259 connect with no stripping or soldering required. Fits RG-8X and RG-58/AU coax.
Shakespeare 4184 Cable Outlet
Provides a neat, water resistant installation for RG-8/AU, 8X, 58, 59, 213 and Shakespeare Lo-Max coax cables. Does not include screws.
Shakespeare 4187 Stainless Steel Ratchet Mount
Shakespeare 4187 Stainless Steel 4 Way Ratchet Mount.
Shakespeare 4188SL SS Rail Ratchet Mount Fits 1 to 1.5 Inch
Shakespeare 4188SL SS Rail Ratchet Mount fits 1 to 1.5 inch rail.
Shakespeare PL259-8X-G Solder Style Connector
The Shakespeare PL-259-8X-G connector includes a UG176 adapter and DooDad for an RG-8X cable. The gold-plated brass better withstands the elements and minimizes signal loss associated with traditional connectors.
Shakespeare 4357 AM-FM-VHF Band Separator
The Shakespeare 4357-S FM/VHF Band Separator eliminates the need for a seperate AM/FM antenna by utilizing your existing VHF antenna.
