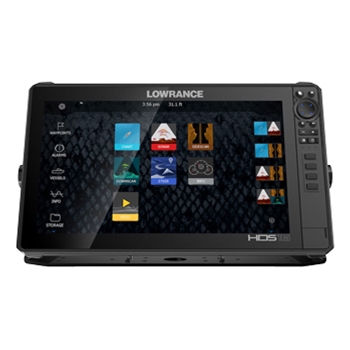

Hybrid Touch Display with Genesis Live Mapping
A bright 16" Display! - The HDS Live with hybrid touch display offers an innovative user interface. A 1920 x 1280 display with both touchscreen and button control allows you to decide what interface works best for you!
The high sensitivity 10Hz internal GPS receiver allows your HDS LIVE to quickly and accurately locate your position which makes navigating a breeze. The HDS Live series comes with preloaded C-MAP Contour+ mapping which include high-resolution inland and coastal detail. C-MAP Contour+ charts help you locate ledges, drop-offs and ditches while providing 1-foot contours on 15,000+ US Lakes and 9,400+ Canadian Lakes. Mapping can be upgraded to Navionics Plus & Platinum Plus charts or C-MAP Max/Max N+/Insight Pro and HD regional mapping. 8GB of internal memory can hold up to 3,000 waypoints and 100 routes so storing all of your favorite fishing holes are no problem. Should you need more storage, this MFD boasts two SD card slots that can hold cards up to 32GB in size. Each LIVE 16 offers C-MAP Genesis Live allowing you to create or modify your favorite fishing hotspot, in real time, directly on your HDS display. Using digital depth and ½ foot contours you can easily view drop offs, ditches, and any other unique areas fish like to populate!
The Lowrance HDS LIVE 16 without transducer allows you to select a transducer that suits your particular vessel type and sonar needs. You will receive advanced sonar features when you purchase a compatible transducer. These advanced features include Active Imaging Sonar which trumps standard sonar views providing refined detail, allowing anglers to easily locate the best fish hiding spots such as standing timber, weed beds and drop offs. Active Imaging 3-in-1 sonar combines CHIRP sonar with DownScan, SideScan and Lowrances own FishReveal function. FishReveal offers better target separation and an advanced level of clarity of bottom structure. FishReveal also combines CHIRP sonar and DownScan imaging to eliminate the need for a split screen setup so the two images can be combined and viewed in one image. Need help selecting a transducer that will support these features? Simply give us a call and we are happy to assist you.

Take advantage of the Lowrance Ghost 360 feature when you add a Ghost Trolling Motor and Active Imaging 3-in-1 Nosecone Transducer (both sold separately). With these additional accessories, you will have the option of Ghost 360 view which will show a high resolution 360-degree view of the bottom making it easier to pinpoint structure and fish targets. This unique view is generated by the automatic rotation of the Ghost Trolling Motor with an Active Imaging 3-in-1 Nosecone transducer. *Software version 22.1 required. Free software update may be required.
Compatibility with the WM-4 SiriusXM Satellite Receiver (sold separately) allows for SiriusXM Fish Mapping, a subscription-based service offered by SiriusXM. Shop the WM-4 Sirius XM receiver here. This service provides locations in the ocean with the highest likelihood of finding fish that anglers are trying to catch, helping you save time and fuel. This service includes all SiriusXM marine weather data, plus eight dedicated features for offshore anglers. Fishing Recommendations, Weed Lines, Sea Surface Height Anomaly, Sea Surface Temperature Contours, Sea Surface Temperature Front Strength, 30m Subsurface Sea Temperatures, Plankton Concentration Contours and Plankton Front Strength are all included. SiriusXM Fish Mapping also provides Fishing Recommendation Areas for 6 fish species - Tuna, Billfish, Swordfish, Kingfish, Wahoo, and Mahi. A software update may be required and can be downloaded at no cost from the manufacturer’s website.
Fully compatible with 3G/4G broadband radar, Halo 20, 20+ and 24, WM-4 weather module, and more, the HDS LIVE 12 is a powerhouse of functionality and advanced features. Since the LIVE 12 is NMEA 2000 compatible, it’s very simple to view engine data as well as other numerical data from other compliant devices you have on your NMEA network. Customize your MFD to suit your needs. You can even split the screen 6 ways at once, making it easier than ever for anglers to keep everything that’s important right at their fingertips. For the ultimate fishfinding MFD, the Lowrance HDS LIVE 12 is the superior choice.
Please note, transducers listed may not provide all sonar features described. Please call our store at 1-800-477-2611 for help selecting a transducer.
- HDS 16 LIVE
- Power/NMEA 0183 Cable
- Bracket and Knobs
- Suncover
- Bezel and SD Card Door Gasket Kit
- Two Year Warranty
- Compatible with Active-Imaging Sonar (Sold Separately)

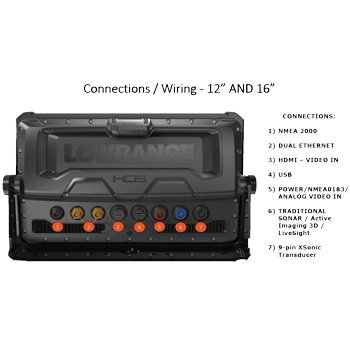

- Dual 9-Pin XSonic Sonar Ports
- Preloaded CMAP Contour+ Charts
- NMEA 2000 Engine Support
- Wireless and Bluetooth
- 2 MicroSD Card Slots for Added Mapping and Storage
- Size: 16.95"W x 10.20"H x 3.46”D (without bracket)
Ethernet Ports | Display | SD Card Slots | Receiver Type | Display Size |
2 | Multi-Touch | 2 | 10Hz GPS receiver | Color 16" Diag. 1920 x 1280 |
Product Accessories for Lowrance HDS-16 LIVE without Transducer

Navico WM-4 SiriusXM Satellite Weather/Radio Module for Lowrance and Simrad
The Navico WM-4 provides up to the minute weather forecasts, weather radar, lightning, storm warnings, entertainment and more to your compatible Lowrance or Simrad multi-function display. The WM-4 is compact in design with multiple mounting options (pole or deck mount). SiriusXM subscription required and sold separately.
Order Now Through December 31st, 2022 and Get a $100 Mail-In Rebate From SiriusXM!
Get a 5% Instant Rebate on this Unit by Entering a Valid Email Address and Opting into our Email Offers at Checkout!

Navico NEP-2 Network Expansion Port for Lowrance and Simrad
NEP-2 Network Expansion Port compatible with All Lowrance HDS / HDS Gen2 / HDS Gen2 Touch and Simrad NSS / NSE/ NSO Series.
Get a 5% Instant Rebate on this Unit by Entering a Valid Email Address and Opting into our Email Offers at Checkout!

Lowrance Point-1 GPS Antenna
If you are mounting a Lowrance HDS or Elite-7 under a hard top or in a pilot house, the Point-1 GPS antenna will help you get a better signal by moving the antenna to an outside location.
Get a 5% Instant Rebate on this Unit by Entering a Valid Email Address and Opting into our Email Offers at Checkout!

Navico Transom Mount Skimmer Transducer with Temp
The Lowrance Transom Mount Skimmer Transducer, HST-DFSBL has a sleek design for better water flow which leads to more accurate depth readings. 50/200khz Dual Frequency. Compatible with Lowrance Blue Connector and Simrad NSS/NSE/BSM-1.
(Depth/Temp)

Navico B744V Bronze Thru-Hull Transducer
The Lowrance Bronze Thruhull Transducer for units with Blue Connector, with fairing block operates at 50/200KHZ and provides accurate Depth, Speed and Temperature readings.
(Depth/Speed/Temp)

Navico P66 Transom Mount Dual Frequency 50/200khz Transducer w/Speed & Temp
The Lowrance P66 Transom Mount 600w Dual Frequency Transducer provides accurate depth, speed and temperature readings to your Lowrance and current Simrad fishfinder or multifunction display.
(Depth/Speed/Temp)

Lowrance HDI Skimmer Transducer, 83/200 & 455/800khz
The Lowrance HDI 83/200 & 455/800khz Skimmer Transducer.

Lowrance HDI Skimmer Transducer, 50/200 & 455/800khz
The Lowrance HDI 50/200 & 455/800khz Skimmer Transducer.

Navico XSONIC P79 Plastic In-Hull Transducer
Lowrance XSONIC P79 Plastic Shoot Thru-Hull Transducer was designed for people that do not want to drill holes in the bottom of their boat. The in-hull transducer mounts inside the boat and will work on boats with deadrise up to 22 degrees. 50/200khz Transducer.

Navico SS175HW Thru Hull CHIRP 12-Degree Transducer, 9-Pin XSONIC
Navico SS175 1kW high wide frequency CHIRP transducer, 9-pin XSONIC, low profile, stainless steel thru-hull housing for vessels with deadrises of 8-15 degrees.

Navico XSONIC SS175H-W 20° Stainless Steel Thru-Hull Transducer
Navico's XSONIC SS175 Stainless Steel High Wide CHIRP Transducer is designed for Fiberglass and Wood Hulls with a Deadrise of 16°-24°. Depth and Temp, 9 Pin XSONIC Black Connector. Compatible with Simrad NSS Evo3 and Lowrance HDS Carbon Units.

Navico XSONIC TM150 Transom Mount Transducer
Navico's XSONIC TM150 Transom Mount Transducer CHIRP, Depth and Temp. 9Pin Black XSONIC Connector. Compatible with Lowrance HDS Carbon and Simrad NSS Evo3 Series.

Navico Xsonic, StructureScan and TotalScan 10' Transducer Extension Cable
10' Transducer Extension Cable for X Sonic transducers, LSS1, LSS2 Structure Scan, TotalScan and 3-in-1 Transducers.

Navico XSONIC Transducer Adapter Cable 7 to 9 Pin
The Navico XSONIC Transducer Adapter Cable Connects 7 pin blue plug transducers to the 9 pin XSONIC black sockets on select Lowrance and Simrad displays.

Navico StructureScan 3D Module with Transducer
Navico’s StructureScan 3D Module with Transducer displays exceptionally detailed, high-definition 3D views of fish, structure and bottom contour when paired with any of the Lowrance HDS Gen3, Simrad NSS Evo2, Evo3 and NSO evo2 series of GPS/Fishfinder units. StructureScan 3D Transducer included.

Lowrance Halo 24 Dome Radar
The Halo 24 from Lowrance pairs with their line of HDS Gen3, Carbon and Live models and offers an industry first 60RPM operation with both long and short range targeting. VelocityTrack Doppler assists in collision avoidance by color coding targets depending on which way they are headed (toward or away from your vessel)
Get a 5% Instant Rebate on this Unit by Entering a Valid Email Address and Opting into our Email Offers at Checkout!

Navico SS175HW Thru Hull CHIRP 0-Degree Transducer, 9-Pin XSONIC
Navico SS175 1kW high wide frequency CHIRP transducer, 9-pin XSONIC, low profile, stainless steel thru-hull housing for vessels with deadrises of 0-7 degrees.

Navico SS175L Thru Hull CHIRP 0-Degree Transducer, 9-Pin XSONIC
Navico SS175 1kW low frequency CHIRP transducer, 9-pin XSONIC, low profile, stainless steel thru-hull housing for vessels with deadrises of 0-7 degrees.

Navico SS175L Thru Hull CHIRP 20-Degree Transducer, 9-Pin XSONIC
Navico SS175 1kW low frequency CHIRP transducer, 9-pin XSONIC, low profile, stainless steel thru-hull housing for vessels with deadrises of 16-24 degrees.

Navico SS175M Thru Hull CHIRP 20-Degree Transducer, 9-Pin XSONIC
Navico B175 1kW medium frequency CHIRP transducer, 9-Pin XSONIC, low profile, bronze thru-hull housing for vessels with deadrises of 16-24 degrees.

Simrad NAC-2 Autopilot Core Pack
The NAC-2 Core Autopilot Core Pack from Simrad consists of the low-current NAC-2 autopilot computer, Precision-9 compass and RF-25 rudder feedback unit and is the perfect set-up for hydraulic and mechanical drives on smaller vessels up to 35’ in length.
Hydraulic Pump or Mechanical Drive Required
Get a 5% Instant Rebate on this Unit by Entering a Valid Email Address and Opting into our Email Offers at Checkout!

Simrad NAC-2 VRF Autopilot Core Pack
The NAC-2 Core VRF Autopilot Core Pack from Simrad consists of the low-current NAC-2 autopilot computer, Precision-9 compass designed with Virtual Rudder Feedback. This is the perfect set-up for hydraulic and mechanical drives on smaller vessels up to 35’ in length and eliminates the need for a mechanical rudder feedback.
Hydraulic Pump or Mechanical Drive Required
Get a 5% Instant Rebate on this Unit by Entering a Valid Email Address and Opting into our Email Offers at Checkout!

Simrad NAC-3 Autopilot Core Pack
The NAC-3 Core Autopilot Core Pack from Simrad consists of the High-Current NAC-3 Autopilot Computer, Precision 9 Compass, Rf25N Rudder Feedback and NMEA2000 Starter Kit. Designed for vessels above 35’ in length.
Hydraulic Pump or Mechanical Drive Required
Get a 5% Instant Rebate on this Unit by Entering a Valid Email Address and Opting into our Email Offers at Checkout!

Simrad NAC-3 VRF Autopilot Core Pack
The NAC-3 VRF Autopilot Core Pack from Simrad consists of the low-current NAC-3 autopilot computer, Precision-9 compass designed with Virtual Rudder Feedback for outboard boats. This is the perfect set-up for hydraulic and mechanical drives on larger vessels over 35’ in length and eliminates the need for a mechanical rudder feedback.
Get a 5% Instant Rebate on this Unit by Entering a Valid Email Address and Opting into our Email Offers at Checkout!
