9” Chartplotter with Lake Maps, Enhanced UHD Sonar and Vivid Color Palettes!

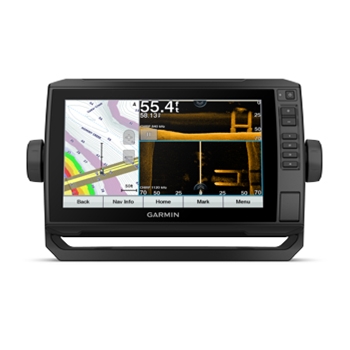

The Garmin ECHOMAP UHD 93sv chartplotter/fishfinder offers a super bright 9" keyed assisted touchscreen display that includes U.S. Lake and Inland waterway charting data from Navionics and Garmin. The UHD 93sv features Ultra High Definition Sonar performance with improved capabilities over previous models thanks to the included GT56 Transom Mount Transducer.
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure. Ultra High Definition (UHD) ClearVu and SideVu Scanning sonar is built into every EchoMap UHD 93sv. With a UHD compatible transducer you can see ultra-clear images of structure and fish below and to the left and right of your vessel. The included GT56 allows for 20% more coverage on side imaging over previous generation models. With any Panoptix, HD-ID, CHIRP enabled, ClearVu and NMEA2000 compatible transducer, you also get complete access to Garmin's QuickDraw Contours software. With QuickDraw Contour mapping software built in and a compatible transducer, you’re instantly able to create personalized fishing maps with 1’ contours as you’re steering the boat across the waters. No special knowledge or software is required, simply fish and Garmin takes care of the rest. Maps will instantaneously be displayed and the best part is that these maps do not have to be shared with a community, they are yours to keep personal. You’re able to store up to 2 million acres of quickdraw contour maps using this feature.
Garmin offers several Premium chart options for this Garmin display including Garmin Navionics Vision+ charts. Garmin Navionics Vision+ charts include both coastal and inland coverage within the region of your choice. Data is sourced from Garmin and Navionics in order to provide you with exceptional detail. These charts include 1-year of daily updates, ensuring your chart data is always current! Premium features include High Resolution Relief Shading, High Resolution Satellite Imagery, Sonar Imagery, Aerial Photography, SideScan Images and More! Garmin Navionics Vision+ charts require premium content to be downloaded post purchase. Other chart options for this unit include Garmin BlueChart G3 Vision and Garmin LakeVu Ultra charts. All premium chart options are available in the region of your choice and sold separately.
The EchoMap UHD series offers many networking capabilities from WiFi, NMEA2000, NMEA0183 and ethernet networking to connect to additional displays, Panoptix Livescope all seeing sonar, tablets, AIS, VHF, Autopilots and more. The built in Wi-Fi connects wirelessly with the ActiveCaptain App that can be downloaded to your smart phone or tablet and allows you to update or purchase/download new charts quickly and easily. With a Garmin Marine Network cable you can now enjoy sharing sonar and user data between two ECHOMAP UHD or ECHOMAP Ultra units (7x and 9x models only) via Ethernet cable. Full NMEA 2000 connectivity allows your ECHOMAP UHD to share information such as engine data, Fusion-Link audio information, autopilot connectivity. The 93sv is also FORCE Trolling motor compatible enabling you to pair your display with the FORCE to route to waypoints, follow tracks and more!
If you are looking for a combination GPS/Fishfinder without paying for the extra capabilities that you’re never going to use, the Echomap 93sv UHD may be the perfect choice for you.
*All echomap UHD units include coverage of the Great Lakes. ECHOMAP UHD units with preloaded LakeVu Maps (63,73,93) include coverage of the Great Lakes, US Side Only. ECHOMAP UHD Units with preloaded Bluechart G3 (64,74,94) include coverage of both the US and Canadian side of the Great Lakes.
- Garmin ECHOMAP 93sv with Lake Maps
- GT56UHD-TM Transducer (25' Cable) with Transom and Trolling Motor Mounts
- Power/Data Cable
- Tilt Mount with Quick-Release Cradle
- Flush Mount
- Protective Cover
- Documentation
- Two Year Warranty
- UHD Scanning Sonar with 20% greater range at 1000kHz
- Vivid Colors – Easily Distinguish between targets and structure
- Transom and Trolling Motor Mount Options
- 9” Display with preloaded Lake Maps
- WiFi Pairing with ActiveCaptain App
- Size: 11.4"W x 6.5"H x 2.4“D
# Of Waypoints | # Of Routes | Track log | Receiver Type | Display Size | Manuals and Instructions |
5,000 | 100 | 50,000 points 50 saved tracks | 5Hz GPS receiver | Color 9" Diag. 400 x 800 | Click Here |
