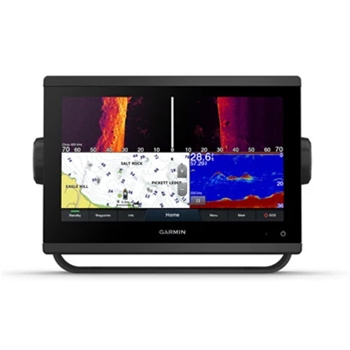

High-Resolution 9-Inch GPS/Fishfinder with ClearVu, SideVu and CHIRP Sounder!
The Garmin GPSMAP 943xsv has a 9”, touchscreen display with a built in 10Hz GPS receiver. With 50% more display pixels and almost double the processing power of previous generation 9” GPSMAP units, this super crisp chartplotter fishfinder combo with high-resolution IPS display integrates effortlessly into your Garmin marine system. With the higher-resolution 9” IPS display, you’ll have improved sunlight viewability from any angle. The Edge-to-Edge Glass with slimline display borders makes for an easy retrofit with the ever increasing range of dash configurations.
Garmin’s GPSMAP Plus 943xsv Chartplotter/Sounder offers built in Garmin BlueChart G3 and LakeVu G3 Charts. The Bluechart G3 charting provides exceptional coverage, clarity and detail with U.S. coastal charts that feature integrated Garmin and Navionics data including Garmin’s signature Auto Guidance technology. Auto Guidance technology creates a route using your desired depth and overhead clearance, then overlays this path onto your chart screen. Even pair with the Garmin Reactor Series autopilots and you can sit back, relax and let the pilot do all the work. Coverage includes both Coastal and Inland waters within the United States, including the Bahamas. However, if the preloaded detail isnt enough or if you are traveling outside of the covered mapping area the GPSMAP 943 XSV is fully compatible with the Bluechart G3 Vision, LakeVu Ultra and Garmin Navionics Vision+ chart options.
Garmin offers several Premium chart options for this Garmin display including Garmin Navionics Vision+ charts. Garmin Navionics Vision+ charts include both coastal and inland coverage within the region of your choice. Data is sourced from Garmin and Navionics in order to provide you with exceptional detail. These charts include 1-year of daily updates, ensuring your chart data is always current! Premium features include High Resolution Relief Shading, High Resolution Satellite Imagery, Sonar Imagery, Aerial Photography, SideScan Images and More! Garmin Navionics Vision+ charts require premium content to be downloaded post purchase. Other chart options for this unit include Garmin BlueChart G3 Vision and Garmin LakeVu Ultra charts. All premium chart options are available in the region of your choice and sold separately.
A powerhouse of sonar capabilities that you normally wouldn’t find in a unit this size, the 943xsv includes built In Ultra High-Definition SideVu and ClearVu scanning sonars with vivid colors! Vivid, Super high-contrast color palettes assist in helping to distinguish Structure from Fish. The clarity and detail are unmatched. The GPSMAP 943xsv also supports Single Channel 1 kW Low, Medium, or High CHIRP and traditional sonar. Transducers Required for sonar features and sold separately.
Built in Wi-Fi allows you to pair with the Free Active Captain and All-In-One mobile App for access to the OneChart Feature, Smart Notifications, Software updates, Garmin Helm, Quickdraw Contour Mapping, and more. If you’re sailing, the 943xsv would be a great choice. The GPSMAP 943 has the integrated Garmin SailAssist feature which offers laylines, race features, seat and drift, wind data and more.
The Networking options are virtually endless with the Garmin GPSMAP 943xsv. Garmin makes connecting almost any Garmin accessory to your 943xsv simple with multiple connection options. An upgraded connection over most past GPSMAP units is a single J1939 port that allows for connection to different kinds of engines, including Yamaha engines. A single network port allows for connection to compatible Panoptix Sonar, Garmin Radars, Sonar Modules, SiriusXM Receivers and More. Not to mention, the GPSMAP 943xsv can integrate seamlessly with any marine NMEA 2000 device such as AIS, Fusion Stereos, VHF and more!
- GPSMAP 943xsv Chartplotter/Fishfinder
- microSD Card Preinstalled
- Power Cable
- NMEA 2000 T-Connecter
- NMEA 2000 Drop Cable (2M)
- 8-Pin to 12-Pin Sounder Adapter Cable

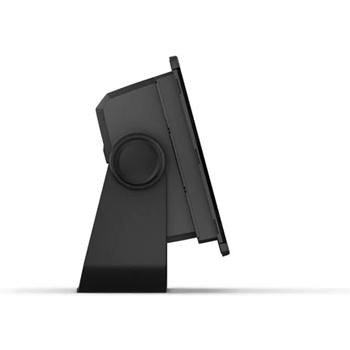

- Bail Mount with Knobs
- Flush Mount Kit with Gasket
- Protective Cover
- Trim Piece Snap Covers
- 2 Year Warranty
- Built-in Sounder for ClearVu, SideVu and CHIRP Sonar
- Preloaded with Coastal and Lake Maps

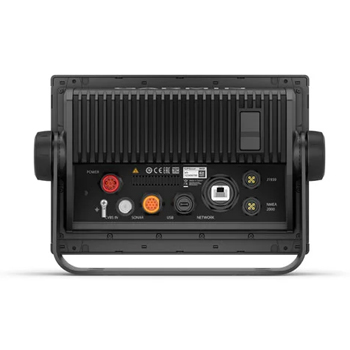

- NMEA 2000, J1939 and Wireless Connectivity
- High Resolution Display- 60% More Pixels than Previous Model
- Garmin SailAssist Sailing Features
- Size: 9.2"W x 6.4"H x 3“D
|# Of Waypoints||# Of Routes||Track log||Receiver Type||Display Size||Manuals and Instructions|
|5,000||100||50,000 points 50 saved tracks||10Hz GPS receiver||Color 9" Diag. 1280 x 720 pixels||Click Here|
