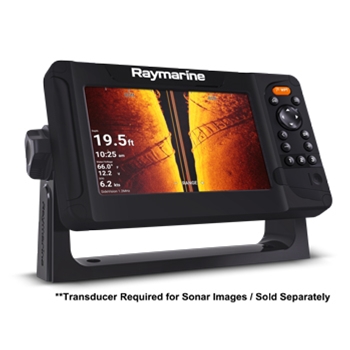

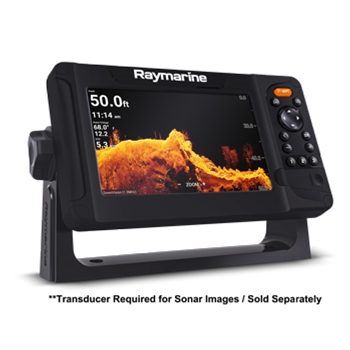

7” GPS/Fishfinder with Detailed Coastal and Lake Mapping
A Bright, Sunlight Viewable 7" keyed dispay built with a quad-core processor, the Element 7HV provides each end user with faster map redraws and sharper 3D sonar imaging! Designed around the Lighthouse Sport operating system, the 7HV offers a simplified user interface, an oversized waypoint key to mark your favorite fishing spots, and more. Navionics+ Mapping provides the information you need and includes mapping for the entire U.S and Canada Coast and Lakes, and provides detailed cruising, sailing and fishing information, port plans, safety depth contours, marine services, tides & currents, and navigation aids. The element is also fully compatible with Lighthouse Charting, C-Map 4D and Navionics Platinum Plus!
High resolution CHIRP technology sonar works together with DownVision, SideVision, and RealVision 3D sonar offering unsurpassed sonar functionality when paired with a compatible transducer (sold separately). All in one transducers are available in 3 setups, the HV100 Transom Mount, the HV300 Plastic Thru Hull and the HV300 Plastic Thru Hull pair for deeper hulls. Each of these transducers will operate at multiple frequencies ensuring the best underwater image. A 1.2 megahertz sonar provides super high-resolution imaging up to 125’. The 350kHZ DownVision sonar provides photo-like imaging up to 600’ and SideVision out to 300’. The Element also provides RealVision 3D which draws the bottom in a 3D view so that you can clearly see ledges, channels and contours. All of this technology is provided through one of the HV transducer listed above. *Element RealVision 3D only operates in scrolling mode.
8gb of internal memory allow each user to store 10,000 waypoints, 150 routes, and 15 tracks, all which can be expanded with an SD card up to 32gb’s. NMEA 2000 connectivity is just another added bonus you will get with your Raymarine 7HV which will allow for simplified networking to your VHF radio, engines, heading sensor integration, and more.
For a reliable GPS/Fishfinder that wont break the bank, be sure to check out the Raymarine element 7HV!
Raymarine periodically releases software updates in an ongoing effort to provide support for new devices and improve performance on existing electronics. Raymarine's newest software release, Lighthouse Sport v3.9.98 allows users to connect 2 Element displays via SeaTalkng for waypoint sharing (will not support route sharing or moving waypoints between groups). Autopilot support is another feature provided with the v3.9.98 software release. Elements can now output navigation data to a connected autopilot via Seatalkng allowing users to track to a waypoint or route (does not allow for autopilot control. A control head is required). The latest software update also allows Element units to connect to the Wireless Quantum Radar via Wi-Fi (Elements cannot support MARPA). Software updates are free and accessible through Raymarine’s website or direct to your device via WiFi.Software update may be required.
- Raymarine Element 7HV GPS/Fishfinder
- Trunnion bracket with mounting hardware
- Surface mount kit with mounting hardware
- Sun cover
- Power / NMEA2000 1.5m cable
- Documentation pack
- Navionics Plus Mapping
- Up To a 3-Year Manufacturer Warranty
- 10,000 Waypoints, 150 Routes, 16 Tracks
- Detailed Navionics + Maps for Coastal and Lakes throughout the U.S. and Canada
- 7” Rugged GPS with HyperVision Sonar
- NMEA2000 Compatible (DeviceNet Micro-C Connection)
- HyperVision 1.2MHz Sonar with CHIRP, DownVision, SideVision and RealVision Ready – Compatible Transducer Required/Sold Separately
- Size: 9.5"W x 5.3 "H x 2.4“D
Product Accessories for Raymarine Element 7HV with NAV+ Maps
Maretron NMEA 2000 Micro T-Connector
The Maretron NMEA 2000 T-Connector is a required part when adding components to your NMEA 2k network. It is installed on the backbone cable and uses one end of the T-Piece for the drop cable.
Maretron NMEA 2000 Backbone/Drop Cable 1 Meter
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 1 Meter.
Maretron NMEA 2000 Field Attachable Female Connector
The Maretron NMEA 2000 Field Attachable Female Connector is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
Maretron NMEA 2000 Backbone/Drop Cable 0.5 Meter
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 0.5 meter.
Maretron NMEA 2000 Backbone/Drop Cable 6 Meter
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 6 Meter.
Maretron NMEA 2000 Backbone/Drop Cable 3 Meter
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 3 Meter
Maretron NMEA 2000 Field Attachable Male Connector
The Maretron NMEA 2000 Field Attachable Male Connector is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
Raymarine HV-100+ Transom Mount Transducer
Pair the HV-100+ Transom Mount transducer with your Raymarine element for excellent underwater images and water temperature. Using multiple frequencies of 200kHz/350kHz and 1.2Mhz this transducer will provide detail to 900' below your boat!
Maretron NMEA 2000 Backbone Cable 10 Meter
This Maretron cable can be used as your NMEA 2000 backbone cable. Length 10 Meter. This cable can not be used as a drop cable.
Maretron NMEA 2000 Male Terminator
The Maretron NMEA 2000 Male Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
Maretron NMEA 2000 Starter Kit
Maretron is known for their high quality and durable NMEA 2000 parts, this starter kit includes: 2 T connectors, Powertap T, 2 Male Terminators, 1m Drop/Backbone Cable, and a 6m Drop/Backbone Cable. Everything you will need to start your NMEA 2K Network.
Raymarine HV-300 Plastic Thru-Hull Transducer Pair
Pair the HV-300 Thru-Hull transducer pair with your Raymarine element for excellent underwater images and accurate water temperatures. Using multiple frequencies of 200kHz/350kHz and 1.2Mhz this transducer will provide detail to 900' below your boat! *Designed for Boats with over a 6° Deadrise
Raymarine Quantum Q24W 18" Wireless Only CHIRP Radar
Raymarine’s Quantum Q24W Radar is a Wi-Fi Only, 18” Dome Radar with Range Scales from 1/16th to 24 Nautical Miles. Compatible with any of Raymarines MFD’s with Lighthouse II software, the Q24W weighs 50% less than traditional Magnetron Radars and offers very low power consumption.
Maretron NMEA 2000 Female Terminator
A NMEA 2000 Female Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
Maretron NMEA 2000 Micro Inline Terminator
The Maretron NMEA 2000 Micro Inline Terminator can be used at the end of a NMEA 2000 backbone to terminate the backbone and still allow for a single device to be used after the terminator.
Maretron NMEA 2000 Power-Tee
The Maretron NMEA 2000 Power-Tee is used to power your NMEA 2K network and measures 5 meters in length.
