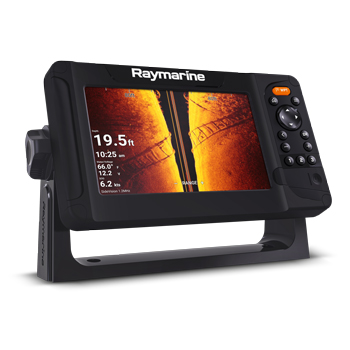

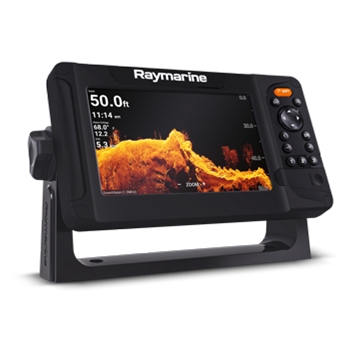

7” Rugged Display with Exceptional Underwater Images.
The Raymarine Element 7HV combination unit is the perfect addition to smaller boats such as bay boats, flats boats, and more. A bright 7” sunlight viewable display provides you with unprecedented sonar and mapping views right at your fingertips. High resolution CHIRP technology sonar works together with DownVision, SideVision, and RealVision 3D sonar offering unsurpassed sonar functionality. Detailed Navionics+ mapping will also be included with your Element 7HV and will provide you with Coastal and Lake mapping detail for US and Canada.
Built with a quad-core processor, the Element 7HV provides each end user with faster map redraws and sharper 3D sonar imaging. The Lighthouse Sport operating system offers a simplified user interface, an oversized waypoint key to mark your favorite fishing spots, and more. Packaged with your 7HV is Navionics+ Mapping which includes mapping for the entire U.S and Canada Coast and Lakes, and provides detailed cruising, sailing and fishing information, port plans, safety depth contours, marine services, tides & currents, and navigation aids. The element is also fully compatible with Lighthouse Charting, C-Map 4D and Navionics Platinum Plus.
Included with your Element 7HV is a HV100 transom mount transducer combining HyperVision, DownVision, SideVision, RealVision, and conventional CHIRP sonar for the best underwater images. HyperVision 3D sonar and CHIRP technology work together with high frequencies to bring a new level of sonar technology to your boat. A 1.2 megahertz HyperVision mode offers higher resolution imaging up to 100’ (30 meters) for better fish targeting and high-speed bottom tracking. The HV100 has more shallow set 1.2MHz ceramics allowing for superior performance in shallow waters! Easily switch to a 350kHz CHIRP sonar for longer range and higher resolution imaging up to 600’ (180 meters) below the boat. RealVision 3D sonar offers a better depiction of ledges, channel beds, and any contour changes that may affect the type of fishing you are doing.
8gb of internal memory allow each user to store 10,000 waypoints, 150 routes, and 15 tracks, all which can be expanded with an SD card up to 32gb’s. NMEA 2000 connectivity is just another added bonus you will get with your Raymarine 7HV which will allow for simplified networking to your VHF radio, engines, heading sensor integration, and more. For a great addition to your vessel, purchase the Raymarine Element 7HV.
Raymarine periodically releases software updates in an ongoing effort to provide support for new devices and improve performance on existing electronics. Raymarine's newest software release, Lighthouse Sport v3.9.98 allows users to connect 2 Element displays via SeaTalkng for waypoint sharing (will not support route sharing or moving waypoints between groups). Autopilot support is another feature provided with the v3.9.98 software release. Elements can now output navigation data to a connected autopilot via Seatalkng allowing users to track to a waypoint or route (does not allow for autopilot control. A control head is required). The latest software update also allows Element units to connect to the Wireless Quantum Radar via Wi-Fi (Elements cannot support MARPA). Software updates are free and accessible through Raymarine’s website or direct to your device via WiFi. Software update may be required.
- Raymarine Element 7HV GPS/Fishfinder
- Trunnion bracket with mounting hardware
- Surface mount kit with mounting hardware
- Sun cover
- Power / NMEA2000 1.5m cable
- Documentation pack
- Navionics Plus Mapping
- HV-100 Transucer with 6m cable
- Transom bracket with mounting hardware
- P-clips with mounting hardware (x5)
- Escutcheon plate with mounting hardware
- Up To a 3-Year Manufacturer Warranty
- 7” Rugged GPS with HyperVision Sonar
- NMEA2000 Compatible (DeviceNet Micro-C Connection)
- HyperVision 1.2MHz Sonar with CHIRP, DownVision, SideVision and RealVision
- 10,000 Waypoints, 150 Routes, 16 Tracks
- Detailed Navionics + Maps for Coastal and Lakes throughout the U.S. and Canada
- Size: 9.5"W x 5.3 "H x 2.4“D
# Of Waypoints | # Of Routes | Track log | Receiver Type | Display Size | Manuals and Instructions |
5,000 | 50 | 10,000 points 15 saved tracks | GNSS Receiver: GPS/GLONASSr | Color 7" Diag. 800 x 480 | Click Here |
Product Accessories for Raymarine Element 7HV with NAV+ Maps and HV100 Transducer

Maretron NMEA 2000 Micro T-Connector
The Maretron NMEA 2000 T-Connector is a required part when adding components to your NMEA 2k network. It is installed on the backbone cable and uses one end of the T-Piece for the drop cable.

Maretron NMEA 2000 Field Attachable Female Connector
The Maretron NMEA 2000 Field Attachable Female Connector is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.

Maretron NMEA 2000 Female Terminator
A NMEA 2000 Female Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.

Maretron NMEA 2000 Field Attachable Male Connector
The Maretron NMEA 2000 Field Attachable Male Connector is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.

Maretron NMEA 2000 Male Terminator
The Maretron NMEA 2000 Male Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.

Maretron NMEA 2000 Backbone/Drop Cable 1 Meter
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 1 Meter.

PropSpeed FoulFree Transducer Foul-Release Coating
PropSpeed's FoulFree Transducer Coating Kit is the biggest advancement in transducer paint and coatings in the last 30 years. It will keep your thru-hull or transom mount transducer free of marine growth. This nontoxic formula has zero leaching of harmful chemicals into water unlike traditional anti-fouling bottom paints and is certified by Airmar.

Maretron NMEA 2000 Backbone/Drop Cable 0.5 Meter
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 0.5 meter.

Maretron NMEA 2000 Backbone/Drop Cable 3 Meter
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 3 Meter

Maretron NMEA 2000 Backbone/Drop Cable 6 Meter
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 6 Meter.

Maretron NMEA 2000 Starter Kit
Maretron is known for their high quality and durable NMEA 2000 parts, this starter kit includes: 2 T connectors, Powertap T, 2 Male Terminators, 1m Drop/Backbone Cable, and a 6m Drop/Backbone Cable. Everything you will need to start your NMEA 2K Network.

Maretron NMEA 2000 Micro Inline Terminator
The Maretron NMEA 2000 Micro Inline Terminator can be used at the end of a NMEA 2000 backbone to terminate the backbone and still allow for a single device to be used after the terminator.

Maretron NMEA 2000 Power-Tee
The Maretron NMEA 2000 Power-Tee is used to power your NMEA 2K network and measures 5 meters in length.

Raymarine Quantum Q24W 18" Wireless Only CHIRP Radar
Raymarine’s Quantum Q24W Radar is a Wi-Fi Only, 18” Dome Radar with Range Scales from 1/16th to 24 Nautical Miles. Compatible with any of Raymarines MFD’s with Lighthouse II software, the Q24W weighs 50% less than traditional Magnetron Radars and offers very low power consumption.
Order Now Through November 12th, 2023 and Get Up to $4,000 Back From Raymarine! Buy More, Save More. Click here to View Rebate Savings Tiers.

Maretron NMEA 2000 Backbone Cable 10 Meter
This Maretron cable can be used as your NMEA 2000 backbone cable. Length 10 Meter. This cable can not be used as a drop cable.
