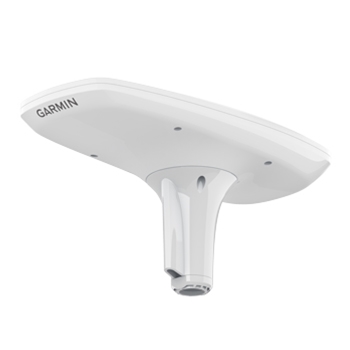

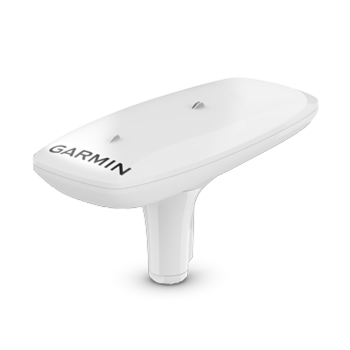

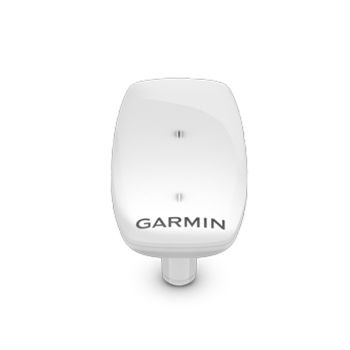

Garmin MSC 10 Satellite Compass

Garmin MSC 10 Satellite Compass

The MSC 10 from Garmin is a marine satellite compass with GPS based heading sensor and a fully integrated AHRS (attitude and heading reference system) for better position in all environments including pitching in rough seas. Multi-Band GNSS and Multi-Constellation receiver offers enhanced accuracy and connects via NMEA2000.
  • SKUGA02407
  • MAN#010-02407-00
  • ID#: 6653
(Rating 84)
Our Price:
$859.95
Availability:
In Stock
Shipping:
FREE Ground Shipping!
Condition:
Brand New
free ups ground

NMEA 2000 Satellite Compass with multi-band GNSS and Multi-Constellation for enhanced accuracy!

The Garmin Marine Satellite Compass (MSC) 10 features Multi-Band and Multi Constellation (GPS, Galileo, GLONASS and BeiDou) receivers to provide precise positioning when it matters most. Now you’re able to get reliable, accurate boat heave, pitch and roll information even in roughest of water conditions.

You’re able to use Garmin’s MSC 10 as a primary sensor for autopilots and other onboard systems that require accurate heading information. By using multiple receiver sources, the MSC10 can provide an accurate heading down to 2 degrees. Unlike other compasses, you can forget about having magnetic interference because the MSC10 uses Satellite Signals.

When pairing Garmin’s MSC 10 with a compatible radar, you're insured to get the most accurate target trails instead of jagged and zig zag ones that you may have seen in the past. The Garmin Reactor Autopilot series can benefit from the MSC 10 making sure your headings are accurate and consistent thus getting you to your destination quicker and saving fuel along the way.

The MSC10 is NMEA 2000 compliant which makes it plug and play with any existing NMEA2000 networks that may already be installed on your vessel.

Garmin MSC 10 Box Contents

Each Garmin MSC 10 Comes with:
  • Garmin MSC 10 marine satellite compass
  • Pole Mount
  • Mounting Hardware
  • 6M NMEA 2000 Drop/Backbone cable
  • NMEA 2000 T Connector
  • Documentation
  • One Year Warranty

Garmin MSC 10 Key Features

  • Built in Attitude and Heading Reference
  • 10Hz Position update
  • Simple installation via NMEA2000
  • Multi-GNSS and Multi-Constellation for enhanced accuracy
  • Provides accurate heave information thru NMEA2000 network
  • Size: 6.1"W x 13.1"H x 3.0“D
Garmin MSC 10 Installation Instructions- Click Here
