Customizable Data and Graphic Display for Sailing!

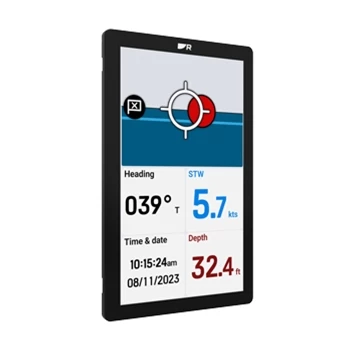

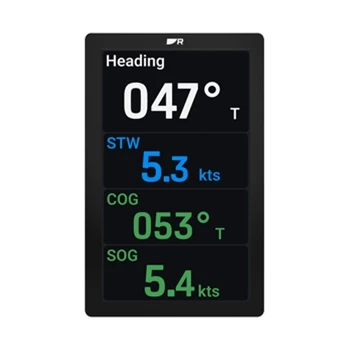

The Alpha Performance Displays from Raymarine are the perfect companion to your Axiom MFD and provides fully customizable instrument data and graphics! Designed with Helm or mast mounting in mind, the Alpha can be mounted in either Portrait or Landscape orientations and is controlled and customized via the Alpha touchscreen or remotely controlled from your networked Axiom Display.
The Alpha 9 features a 9" IPS TFT LCD display with a 60Hz refresh rate. The high resolution display (1280x720 resolution) has an IPX6 and IPX7 water rating.
Customizable Sailing, Navigation and Instrument data is right at your fingertips with the Bright touchscreen display with wide viewing angles offering excellent visibility. Polarized sunglass-friendly, the Alpha is built to withstand the elements with Raymarine's exclusive HydroTough nano-coating that repels water and oils.

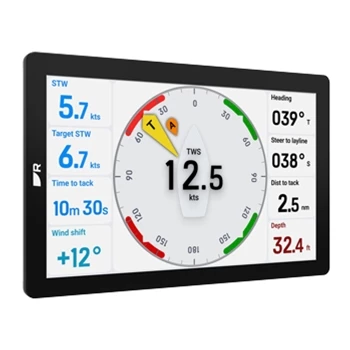

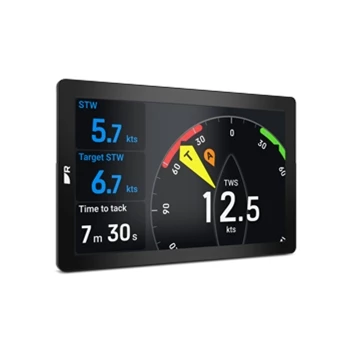

Providing Specific Sailing features such as SailPoint Target and Dynamic Wind, "SailPoint Mode provides your with a visual reference of target wind angle, so you achieve your maximum VMG upwind or downwind." While Dynamic Wind "performance display provides automatic zoom to the most critical part of the instrument display based on wind direction." In addition, Tactical Awareness enhances your awareness and allows for better decision making on the water.
Simple to install, a single power and data cable (sold separately) is needed and can power up to 4 Alpha displays by simple daisy-chaining. With a single RayNet Ethernet cable between your Axiom and the Alpha Displays provide the Alpha display access to Axiom's connected transducers and NMEA2000/SeatalkNG Devices.

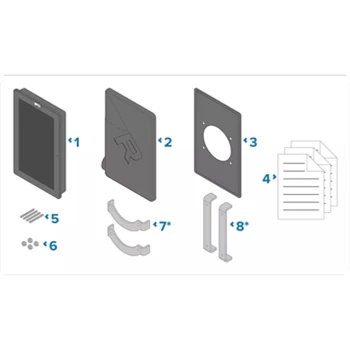

Raymarine Alpha 9 Performance Display Box Contents
- Alpha Series Performance Display
- Suncover
- Waterproof Gasket
- Documentation Pack
- 4x Threaded Studs, M4 x 40mm
- 4x Thumb Nuts
- 2x Mounting Brackets
- 2-Year Warranty
- *Cables are not included and must be purchased separately to match the installation configuration.
Raymarine Alpha 9 Performance Display Key Features
- Portrait and Landscape Mounting Options *With Appropriate Bracket, Sold Separately.
- Bright Touchscreen Display with Wide Viewing Angles
- Extensive Data Dashboard Options and Widgets
- Tested to the Extreme and Built with HydroTough Nano-Coating
- Supports SailPoint Target Mode and Dynamic Wind Performance Data
- Size: 5.86"W x 9.29"H x 1.34“D
Product Accessories for Raymarine Alpha 9 Performance Display
Raymarine 1M Power and Raynet Cable for Alpha Displays
Connect your Alpha Performance Display to a Raymarine Axiom Chartplotter using this single cable that serves as both power and data (Raynet). This single cable design means less cabling running through the deck and mast, resulting in a simple and fast installation!
Cable Length: 1M
Raymarine 3M Power and Raynet Cable for Alpha Displays
Connect your Alpha Performance Display to a Raymarine Axiom Chartplotter using this single cable that serves as both power and data (Raynet). This single cable design means less cabling running through the deck and mast, resulting in a simple and fast installation!
Cable Length: 3M
Raymarine 5M Power and Raynet Cable for Alpha Displays
Connect your Alpha Performance Display to a Raymarine Axiom Chartplotter using this single cable that serves as both power and data (Raynet). This single cable design means less cabling running through the deck and mast, resulting in a simple and fast installation!
Cable Length: 5M
Raymarine 10M Power and Raynet Cable for Alpha Displays
Connect your Alpha Performance Display to a Raymarine Axiom Chartplotter using this single cable that serves as both power and data (Raynet). This single cable design means less cabling running through the deck and mast, resulting in a simple and fast installation!
Cable Length: 10M
Raymarine Alpha 1M Daisy Chain
The Raymarine 1M Daisy Chain for Alpha Displays allows you to connect up to 4 Alpha Performance Displays together to create the ultimate data display.
Cable Length: 1M
Raymarine Alpha .3M Daisy Chain
The Raymarine 0.3M Daisy Chain for Alpha Displays allows you to connect up to 4 Alpha Performance Displays together to create the ultimate data display.
Cable Length: 0.3M
Raymarine Alpha 9 Landscape Single Mast Bracket
The Raymarine Alpha 9 Landscape Single Mast Bracket is compatible with the Raymarine Alpha 9 Display and is constructed from durable and lightweight aluminum.
Raymarine Alpha 9 Landscape Dual Mast Bracket
The Raymarine Alpha 9 Landscape Dual Mast Bracket is compatible with the Raymarine Alpha 9 Display and is constructed from durable and lightweight aluminum.
Raymarine Alpha 9 Portrait Single Mast Bracket
The Raymarine Alpha 9 Portrait Single Mast Bracket is compatible with the Raymarine Alpha 9 Display and is constructed from durable and lightweight aluminum.
Similar Products and Value Bundles
Raymarine Alpha 7 Performance Display
Raymarine Axiom MFD (with Lighthouse 4.5 Software or Later) Required and Sold Separately
- RAE70649
- MAN#E70649
- ID#: 7733
in 3-5 Days
