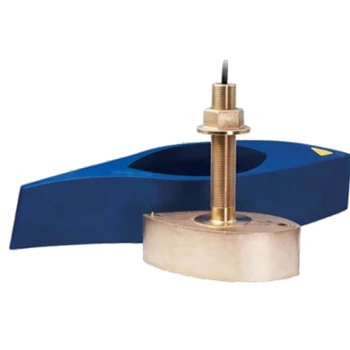

Airmar B275LHW CHIRP Bronze Thru-Hull Transducer, for Airmar Mix and Match, or Bare Wire Connection

Free Ground Shipping!

Airmar B275LHW CHIRP Bronze Thru-Hull Transducer, for Airmar Mix and Match, or Bare Wire Connection

Airmar B275LHW CHIRP Bronze Thru-Hull Transducer, for Airmar Mix and Match, or Bare Wire Connection

The Airmar B275C-LHW-MM CHIRP Transducer is ideal in shallow to deep water applications. With its Wide Beam Angle the B275 provides 2x the coverage under the boat when compared with the other CHIRP transducers on the market today. (Low and High Frequencies, Depth and Temp). Connector: Airmar 12-Pin (MMC).
Mix and Match cable NOT included.
  • SKUAIB275CLHWMM
  • MAN#B275C-LHW-MM
  • ID#: 8008
(Rating 88)
Our Price:
$1,879.00
Availability:
In Stock
Shipping:
Free Ground Shipping!
Condition:
Brand New
  • Mounting Style: Thru Hull with Fairing Block
  • Deadrise: Up to 28-Degrees with Fairing Block
  • Frequency Range: High Wide frequency: 150-250 kHz, 25-Degree Beam Width. Provides CHIRP Sonar.
  • Power Output: 1kW
  • Max Depth: 914m (3,000 feet) in ideal water conditions, best case scenario
  • Transducer Functions: Depth and Water-Temperature
  • Cable Length: 30-feet (9M)
  • Transducer Material: Bronze
  • Connector Style: Mix-and-Match connector (12-Pin CHIRP Mix and Match). Ideal for bare wire connection. Does not include Mix-and-Match Cable.
    • B275 Manual Click Here

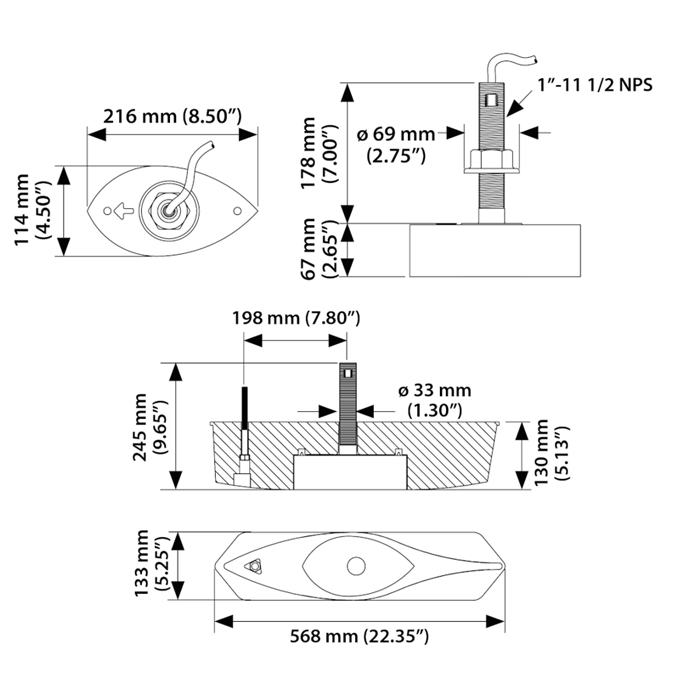

    B275 Dimensions
