Garmin GT30-TH Thru-Hull Transducer

Free Ground Shipping!

Garmin GT30-TH Thru-Hull Transducer

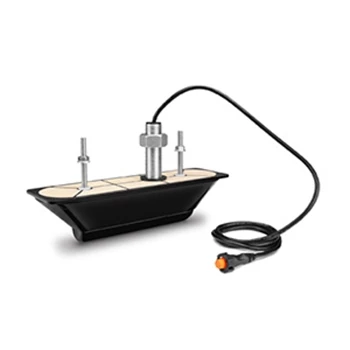

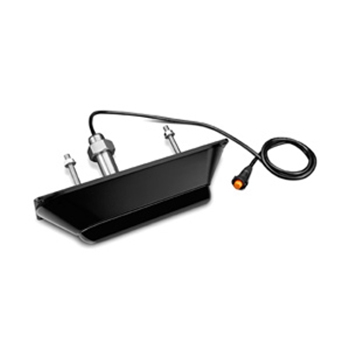

Garmin GT30 Thru Hull transducer, 12-pin with fairing block. The GT30 Transducer provides ClearVu/SideVu for boats with a deadrise of 0-5-degrees.
  • SKUGAX0196110
  • MAN#010-01961-10
  • ID#: 4153
Our Price:
$639.95
Availability:
Usually Ships in 3-5 Days
Shipping:
Free Ground Shipping!
Condition:
Brand New
  • Mounting Style: Low Profile Thru Hull with Fairing Block
  • Deadrise: Suitable for 0-5-Degrees
  • Frequency Range: ClearVu, SideVu, CHIRP- 455kHz (425-485), 800kHz (790-850)
  • Beamwidth: ClearVu: 1.4°x53° @ 455 kHz and 0.8°x30° @ 800 kHz, SideVu: 1.1°x53° @ 455 kHZ and 0.7°x30° @ 800 kHz
  • Power Output: ClearVu/SideVu 500W per element
  • Max Depth: ClearVu (750 feet), SideVu (500 feet) in ideal water conditions, best case scenario
  • Transducer Functions: Depth and Water-Temperature
  • Cable Length: 35-feet
  • Transducer Material: Stainless steel stem with fairing Block
  • Connector Style: Garmin 12-Pin
  • Ideal for: Shallow water fishing with clear definition of objects, structure and fish below and to each side of the boat.
  • 010-01961-10 replaces the 010-12089-10 or GAX1208910.

    Garmin Thru Hull Installation Guide Click Here

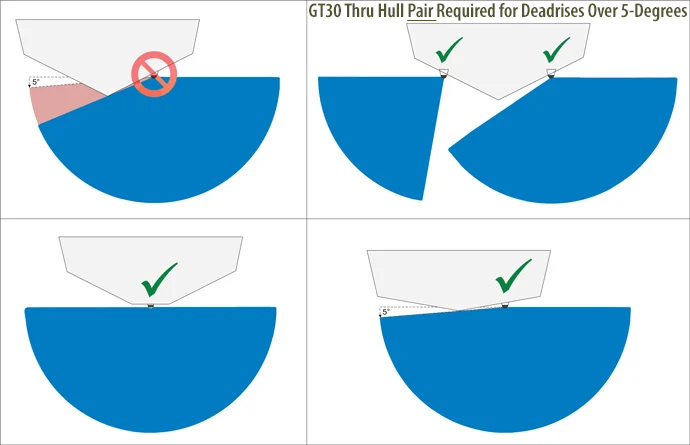

    GT 30 Single vs. Pair
    Garmin GT30-TH Details

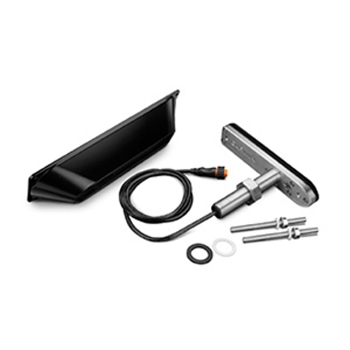

    Each Garmin GT30-TH comes with:12-Pin GT30 Thru Hull Transducer with Stainless Steel Stem, Fairing Block, Isolation Plate & Bushings, Extension cable, Mounting hardware and Installation Instructions.
