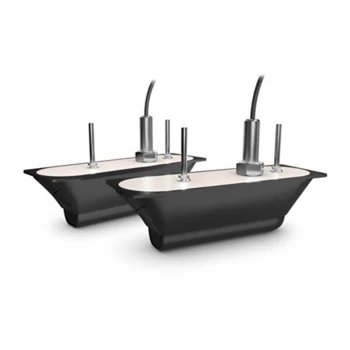

Garmin GT56UHD Thru Hull Transducer (Pair)

Free Ground Shipping!

Garmin GT56UHD Thru Hull Transducer (Pair)

The Garmin GT56UHD all-in-one transducer pair features Ultra High-Definition ClearVu and SideVu scanning sonars and high wide CHIRP traditional sonar providing excellent sonar clarity at speed! This fairing block style thru hull transducer is suitable for boats with less than a deadrise between 5-25 degrees .
  • SKUGAX0273211
  • MAN#010-02732-11
  • ID#: 6912
(Rating 89)
Our Price:
$1,389.00
Availability:
In Stock
Shipping:
Free Ground Shipping!
Condition:
Brand New

The Garmin GT56UHD Thru Hull Transducer Pair provides Ultra High Definition SideVu Scanning sonar with 20% greater range than previous models. The UHD sonar is crystal clear, providing detail of targets and structure below your boat. The GT56UHD single transducer is suitable for boats with a deadrise between 5-25-degrees.

  • Cable Length: 25 ft with Y-Cable
  • Frequency: Traditional High-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)
  • Power: Traditional 350 W; ClearVü/SideVü 500 W
  • Beamwidth: Traditional CHIRP: 24-16; ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
  • Maximum depth: Traditional: 800 ft freshwater; ClearVü: 400 ft; SideVü: 500 ft
  • Provides Depth and temperature
  • Garmin 12-Pin Connector
  • The GT56TH is compatible with the following Garmin Fishfinders:

  • GPSMAP 8400xsv and GPSMAP 8600xsv Chartplotters
  • GPSMAP 7x3xsv, GPSMAP 9x3xsv and GPSMAP 12x3xsv
  • ECHOMAP Ultra Chartplotters
  • ECHOMAP UHD sv Chartplotters

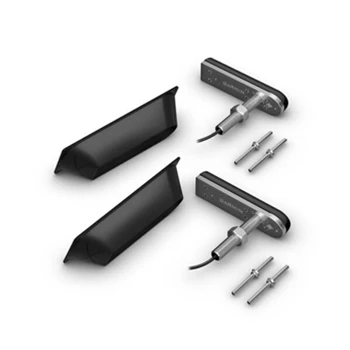

  • Garmin GT56UHD Thru Hull Transducer (Pair) Box Contents
    Each Garmin GT56UHD Thru Hull Transducer (Pair) Comes with:
    • 2 Garmin GT56UHD-TH Transducer
    • Stainless Steel Stem
    • Fairing Block
    • Isolation Plate and Bushings
    • Extension Cable
    • Y-Cable
    • Mounting Hardware
    • Documentation
    • One Year Warranty
    Garmin GT56UHD Thru Hull Transducer (Pair) Key Features
    • High wide CHIRP traditional sonar
    • Brilliant Image Clarity of Structure
    • Ultra High Definition SideVu Scanning Sonar
    • Multiple Scanning Frequencies
    • Includes Fairing Blocks
    Garmin GT56UHD-TH Manual- Click Here
